Installation of the panes of glass
Areas of Application

Installation of the panes of glass

Wellness objects

The fixed glass elements should be installed so that the glass panes can be introduced from outside. The glass used is 8 mm toughened safety glass.

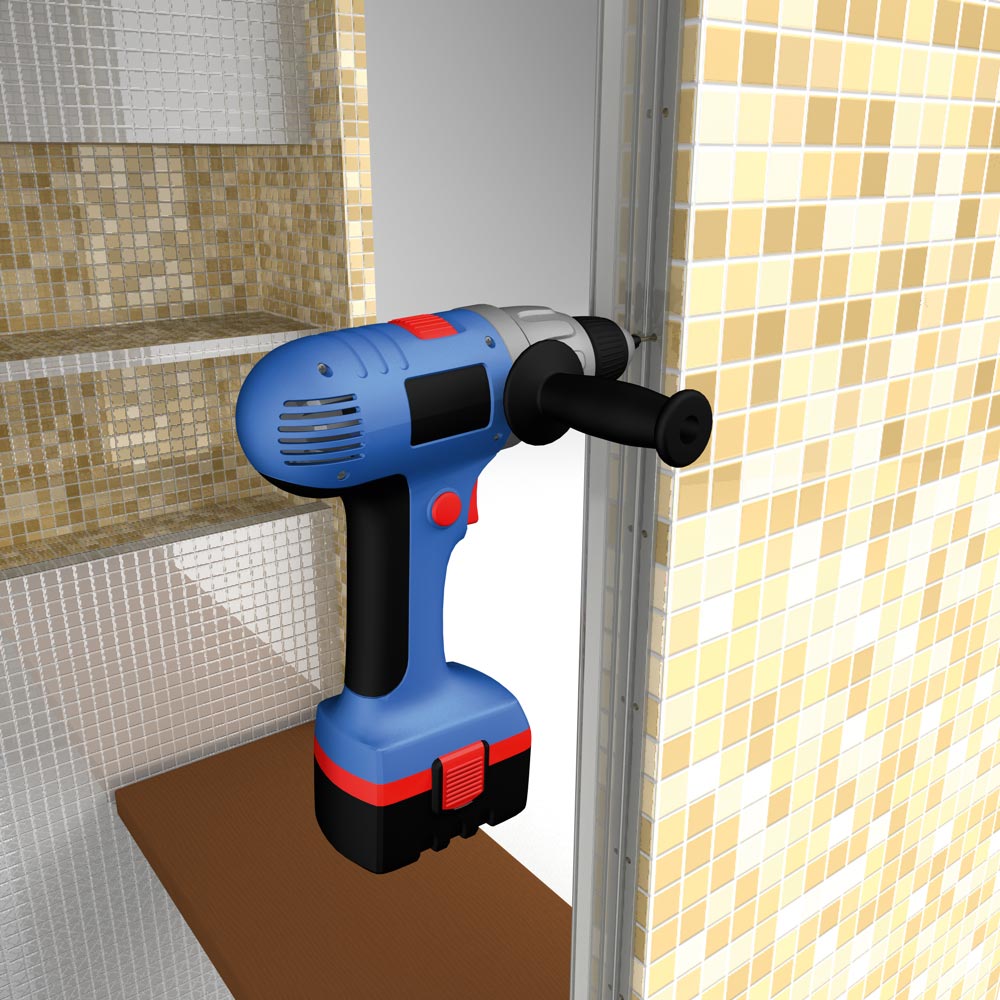

Step 1 Step 1 The installation L-profile is held to the tiled and grouted inner edge of the cubicle so that the glass pane can be slid flush alongside the wall and ceiling profile and the drill holes can be drawn onto the ceramics. This process is performed on both sides of the glass pane. If the installation L-profile is too long due to very thick floor tiles, this profile can be shortened by the customer.

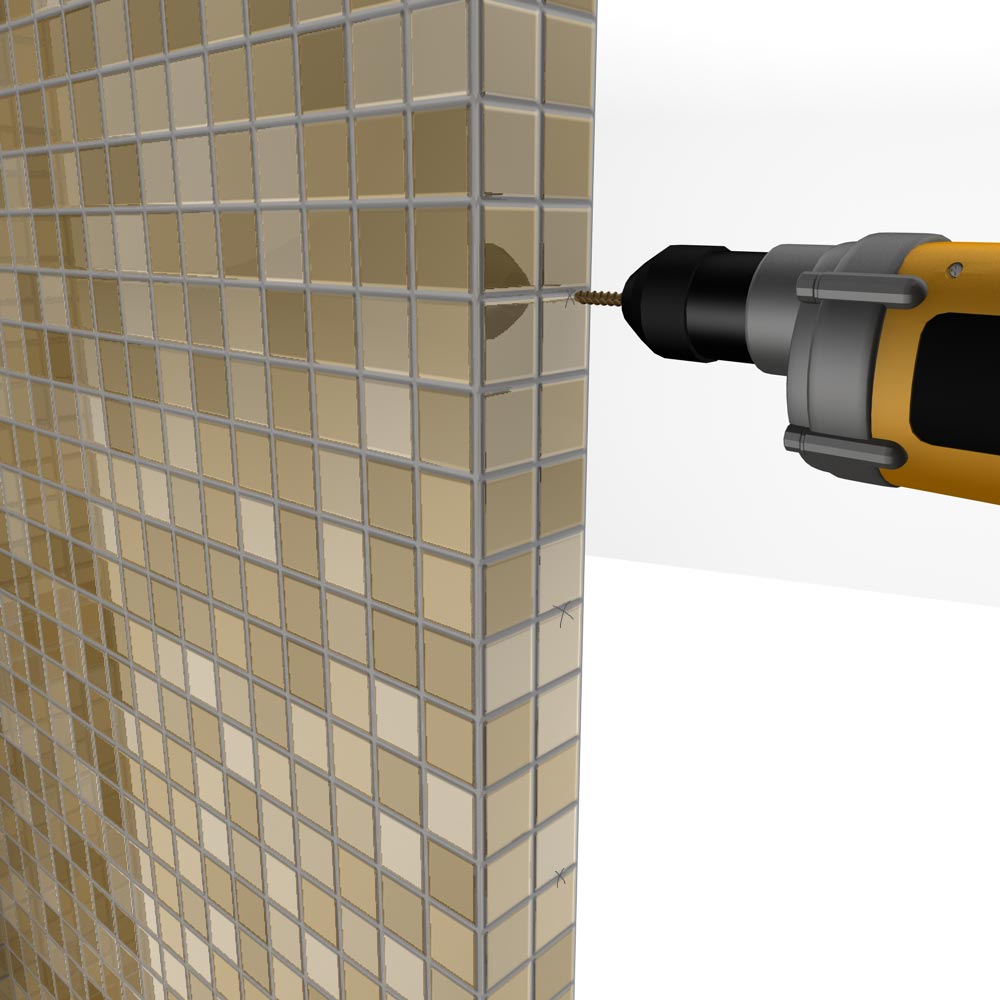

Step 2 Step 2 The ceramics are drilled at the drill hole markings. There is a metal profile behind the ceramics that must not be drilled. Only the ceramics must be drilled.
Step 3 Step 3 Attention: the self-tapping screws can only penetrate the metal, not the ceramics. Do not overtighten the self-tapping bone screws. Important: this process is performed on both sides of the glass pane.

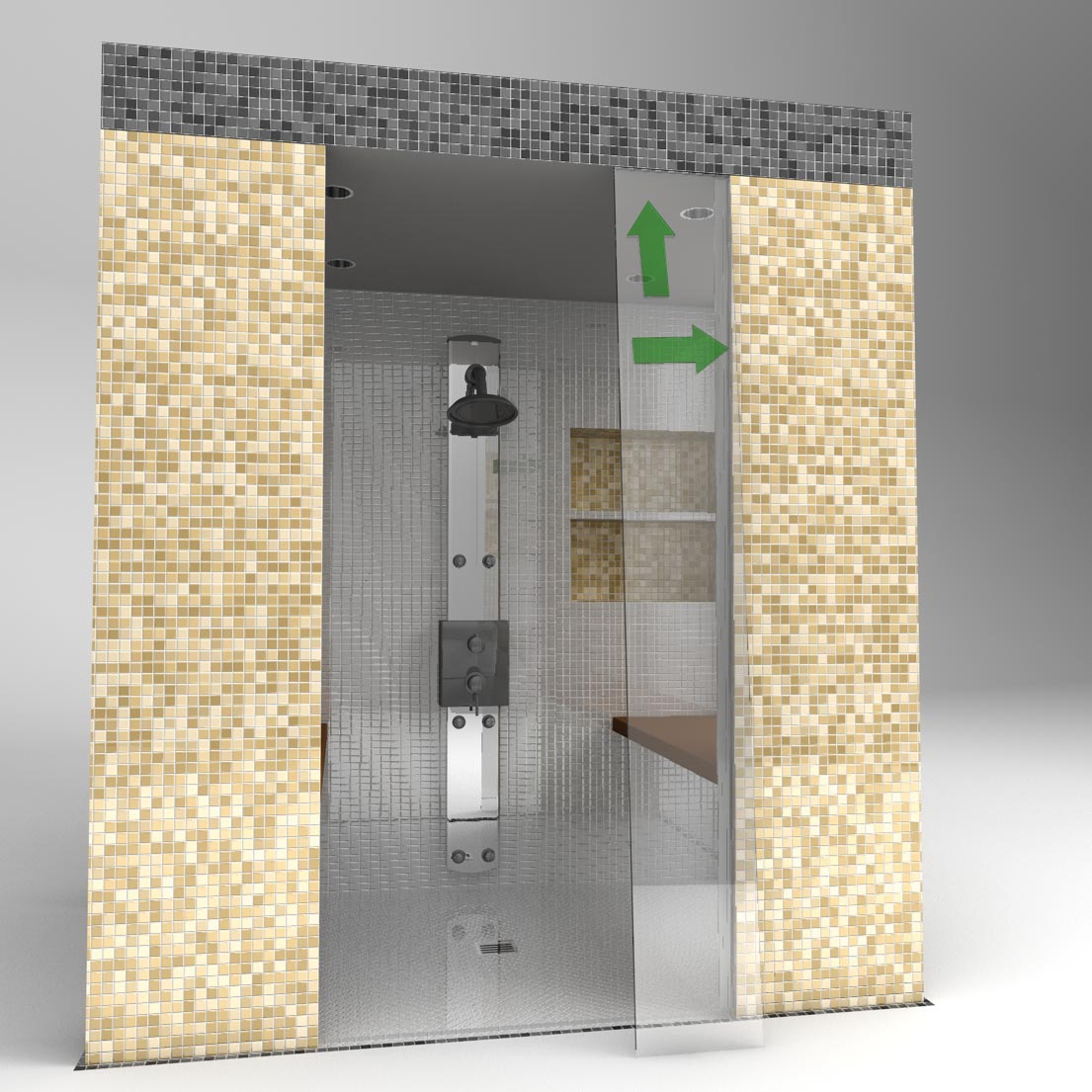

Step 4 Step 4 In the first step, the glass pane is inserted into the roof groove and then slid sideways into the L-profile. In the floor area, the enclosed glass spacers are placed onto the tiles, and the glass pane is lowered.

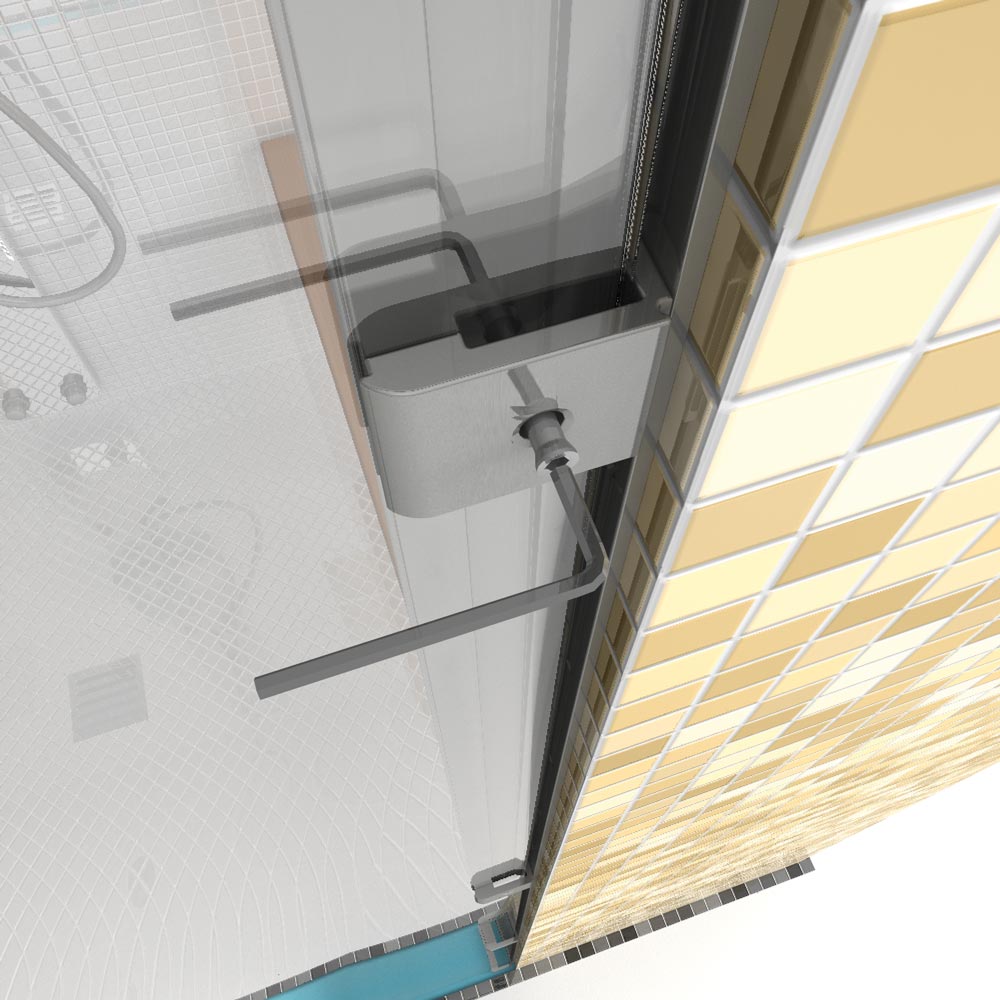

Step 5 Step 5 Then, the glass pane is bolted to the L-profile by using the enclosed fixing elements.

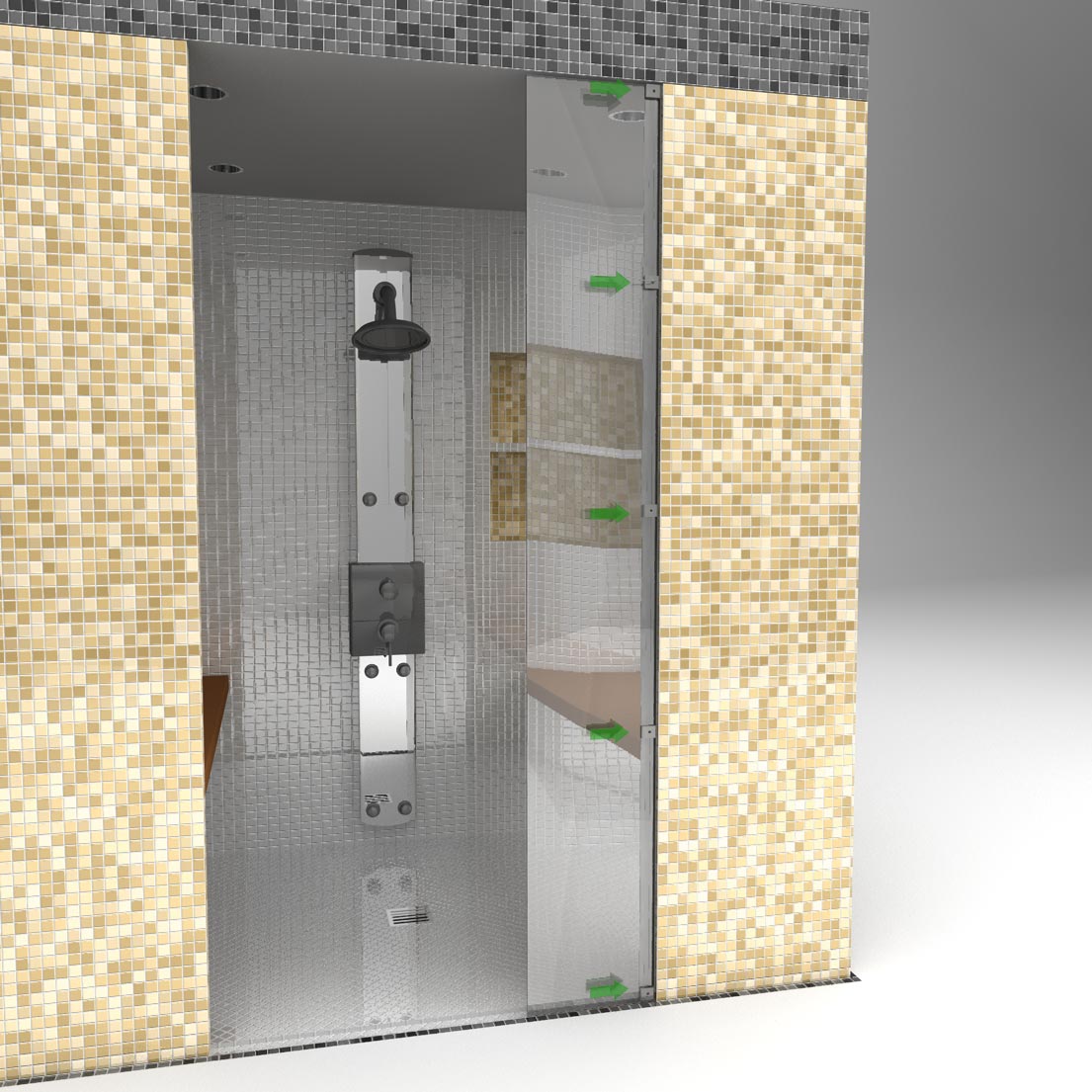

Step 6 Step 6 Each profile should be fixed with 5 fixing elements.

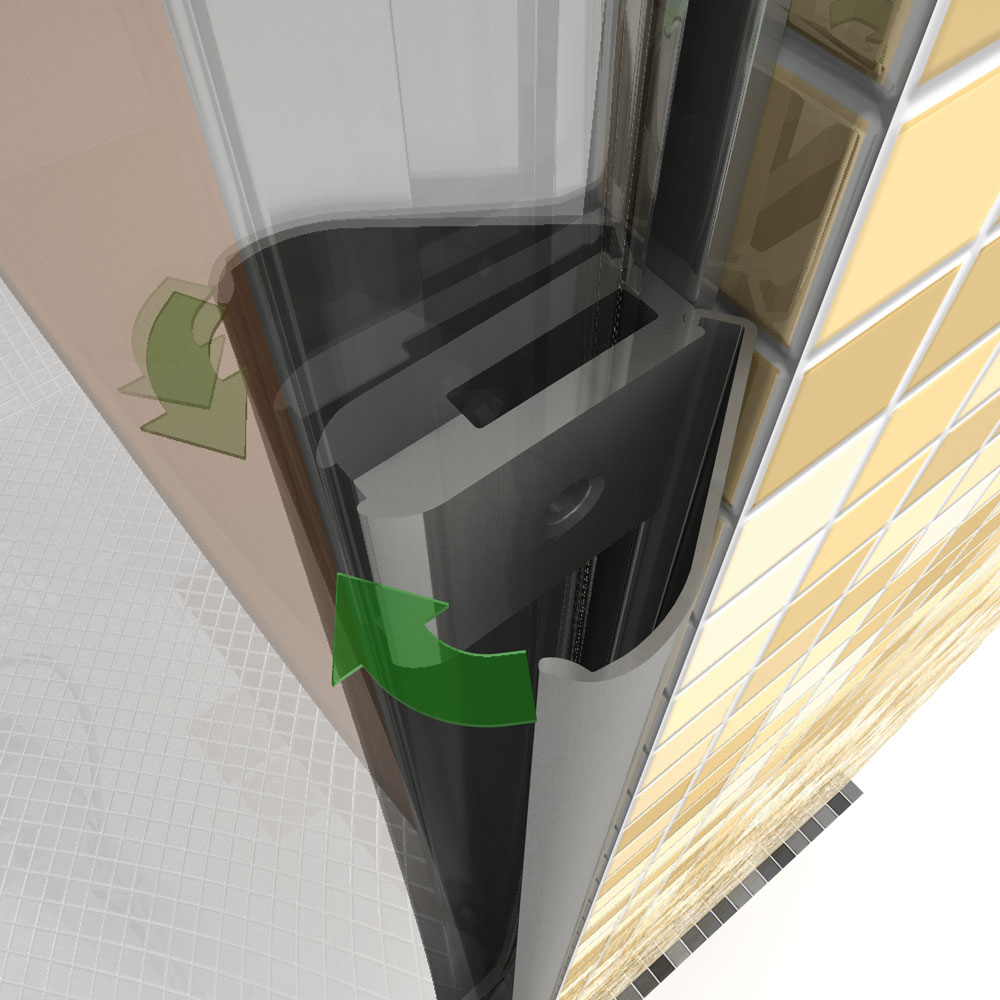

Step 7 Step 7 The cover profile is clipped over the fixing elements. If the cover profile is too long due to very thick floor tiles, this profile can be shortened by the customer.

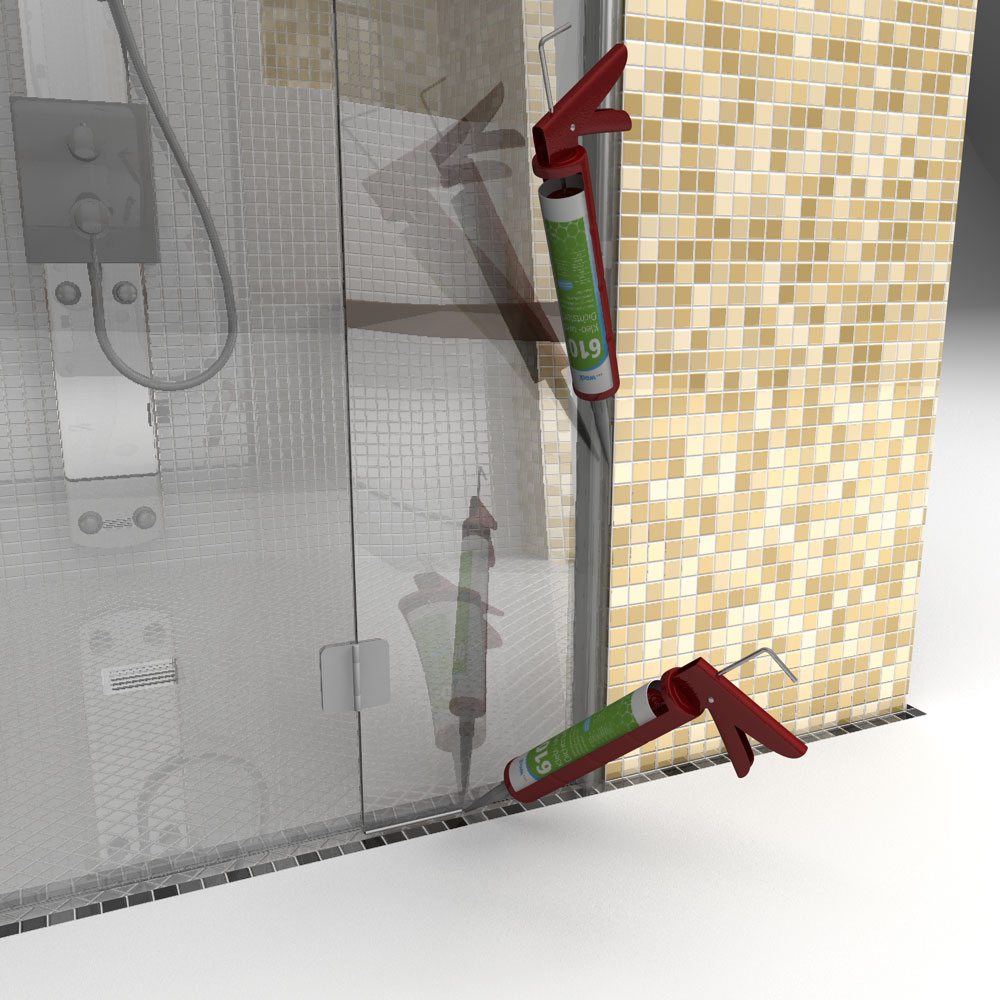

Step 8 Step 8 The glass element should be finished/sealed with silicone at the following transition points:
  • Glass pane to ceiling
  • Glass pane to floor tile
  • Cover profile to tiles
