Sanoasa Wellness Multicentre

Wellness objects

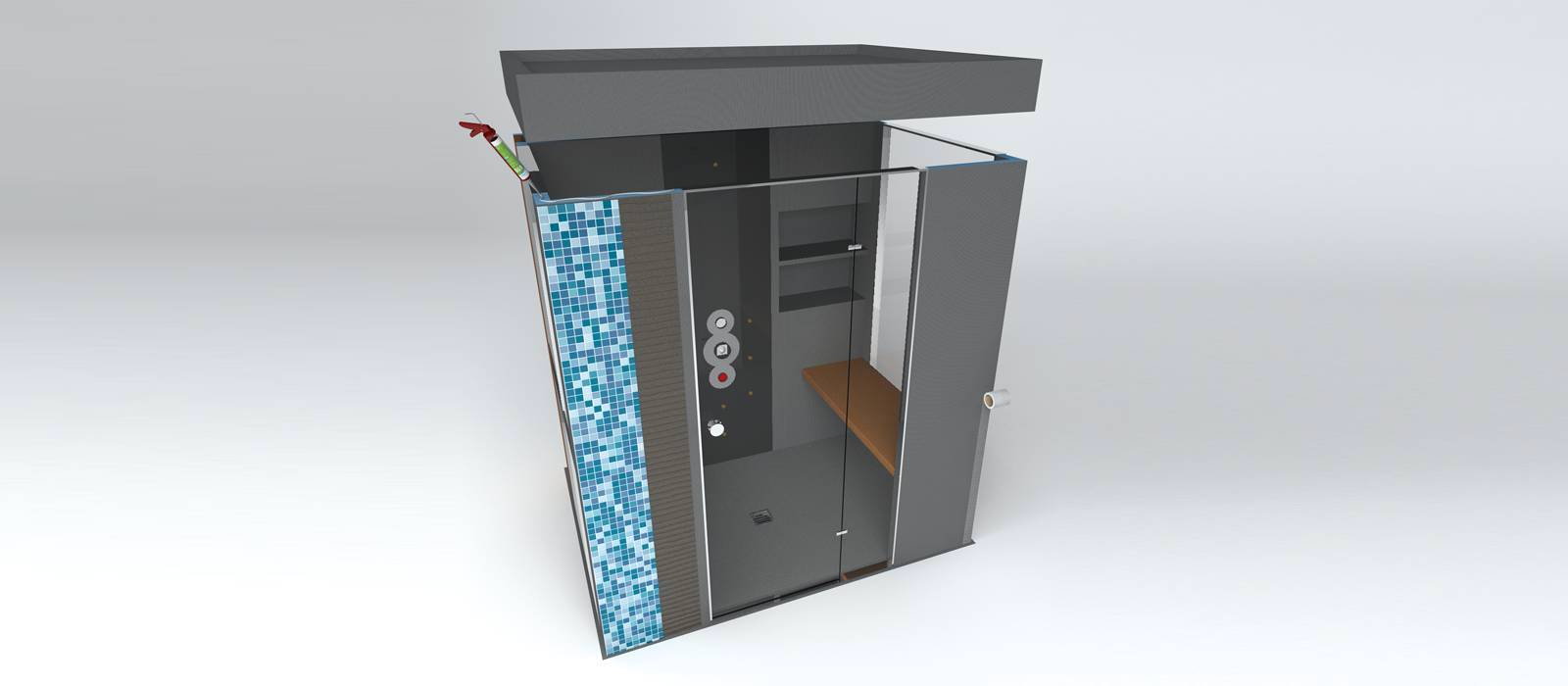

The wedi Sanoasa Multicenters offer almost everything converting a normal shower into a wellness centre. Massage showers with lateral side body jets, purifying vapour steam applications beneficial for the cardiovascular system, or relaxing lighting with adjustable colours as well as various designs that can be individually adapted to the room concept are all included in the system. These Multicenters can also be equipped with a multitude of optional features such as exclusive shower panels, a Raindance shower, additional LED technology, fibreglass lighting with 50 spots, or vapour nozzles made of highquality stainless steel.

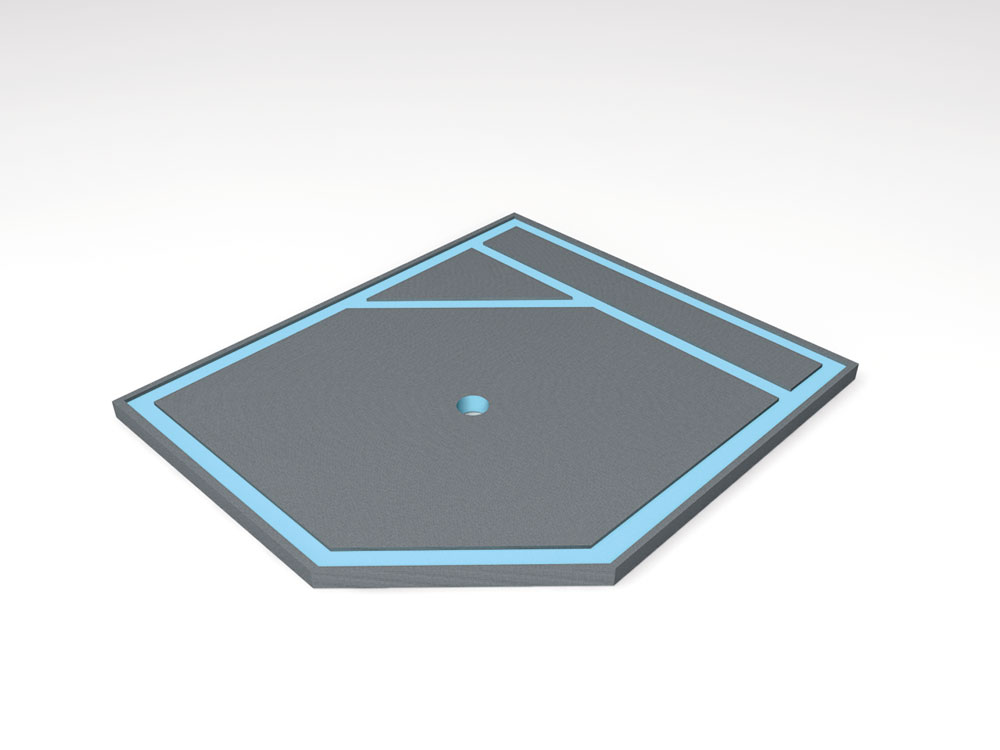

Step 1 Step 1 Before installing the wedi Fundo base unit, the cold and hot water inlet as well as power supply should be connected in accordance with the installation plan.

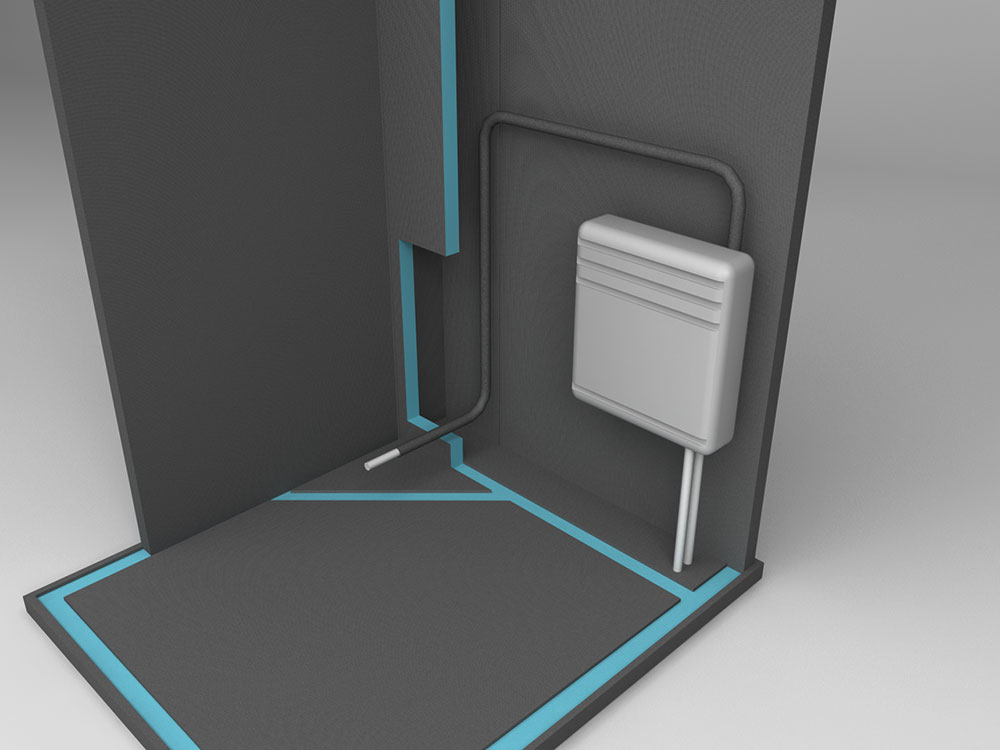

Step 2 Step 2 First, the wall with the steam generator is glued into the grooves of the floor board by using wedi Joint sealant. Water supply lines, drainage and steam pipes can either be connected and sealed at the factory, or prepared for the fitter on site.
Step 3 Step 3 The shower panel wall is bonded to the groove in the Fundo base unit and to the wall boards either side. Water connections, steam pipes and drainage should be connected and pressure-tested by the fitter before tiling.
Step 4 Step 4 The cubicle is checked for correct vertical position and alignment before curing of the sealant. The dimensions of the glass elements to be installed must be doublechecked because later changes will require increased efforts.

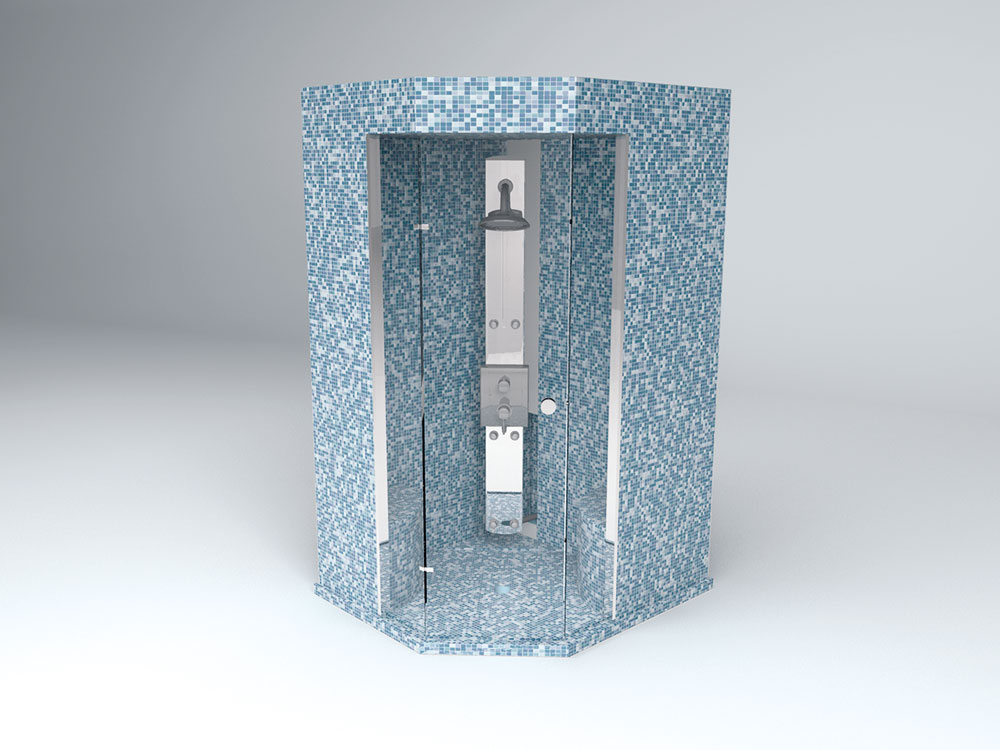

Step 5 Step 5 Now, the whole cubicle can be tiled and grouted, finishing with the installation of the glass elements.
wedi Sanoasa – Multicentre
wedi
In order to display YouTube/Vimeo videos, it is necessary that you accept marketing cookies. Please see our privacy policy for more information. To the cookie settings

At a glance

Shower & Spa System Solutions - Soluciones de sistemas de ducha y spa 0.00 MB) Shower & Spa System Solutions - Solutions pour systèmes de douche et de spa 5.55 MB Technical Handbook 3.92 MB Operating instructions 5.84 MB Assembly Instruction Fundo Steam Shower 0.40 MB Data sheet wedi Joint sealant 0.12 MB

wedi system components

wedi Tools reinforcemetn tape self-adhessive wedi Joint sealant
