Glass door with stainless steel door frame

Bathroom furniture construction with wedi Eterna

The wedi glass doors are equipped with stainless steel frames and offer a clear view to bathroom and wellness area. Whether for wedi wellness projects or other areas – the various options ensure a versatile use.

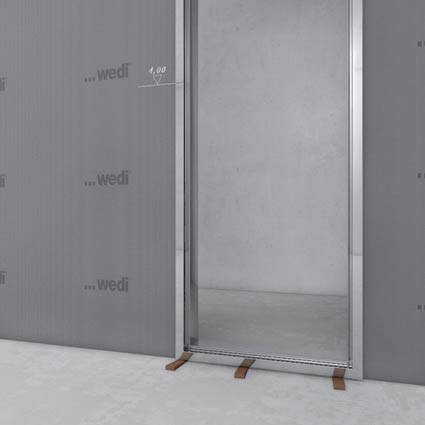

Step 1 Install frame into wall opening and set height (setting-out) and adjust by using wooden wedges.

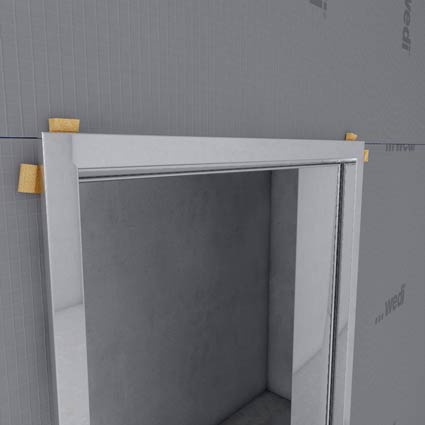

Step 2 Fasten to the wall by using wedges at the four corners of the top frame; ensure identical distance between wall and frame.

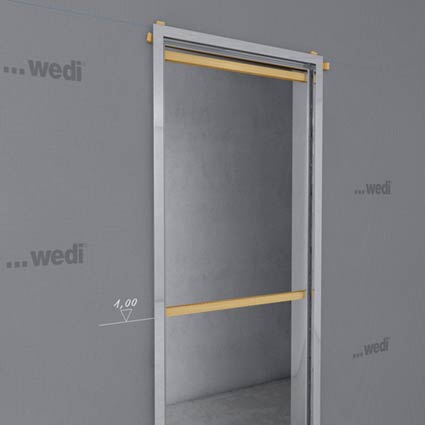

Step 3 Measure rebate width at top part. Cut spacer boards to size, and secure frame distance at the top, in the middle and on the bottom.

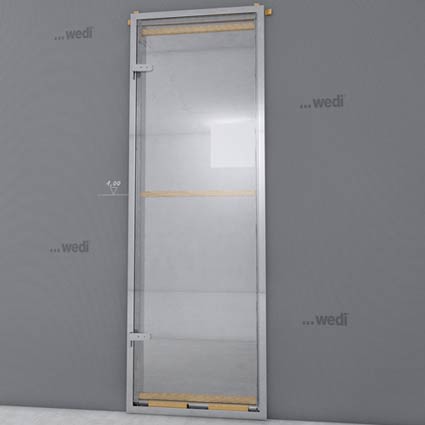

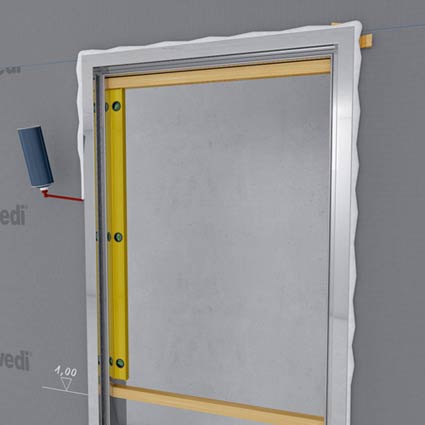

Step 4 Check position of frame by using a spirit level, and correct, if required. Then, apply PU foam into the spaces between the frame and the board, cutting off any escaping foam after drying.
