Building of shower wall
Fundo Trollo libero

Building of shower wall wedi Fundo design shower

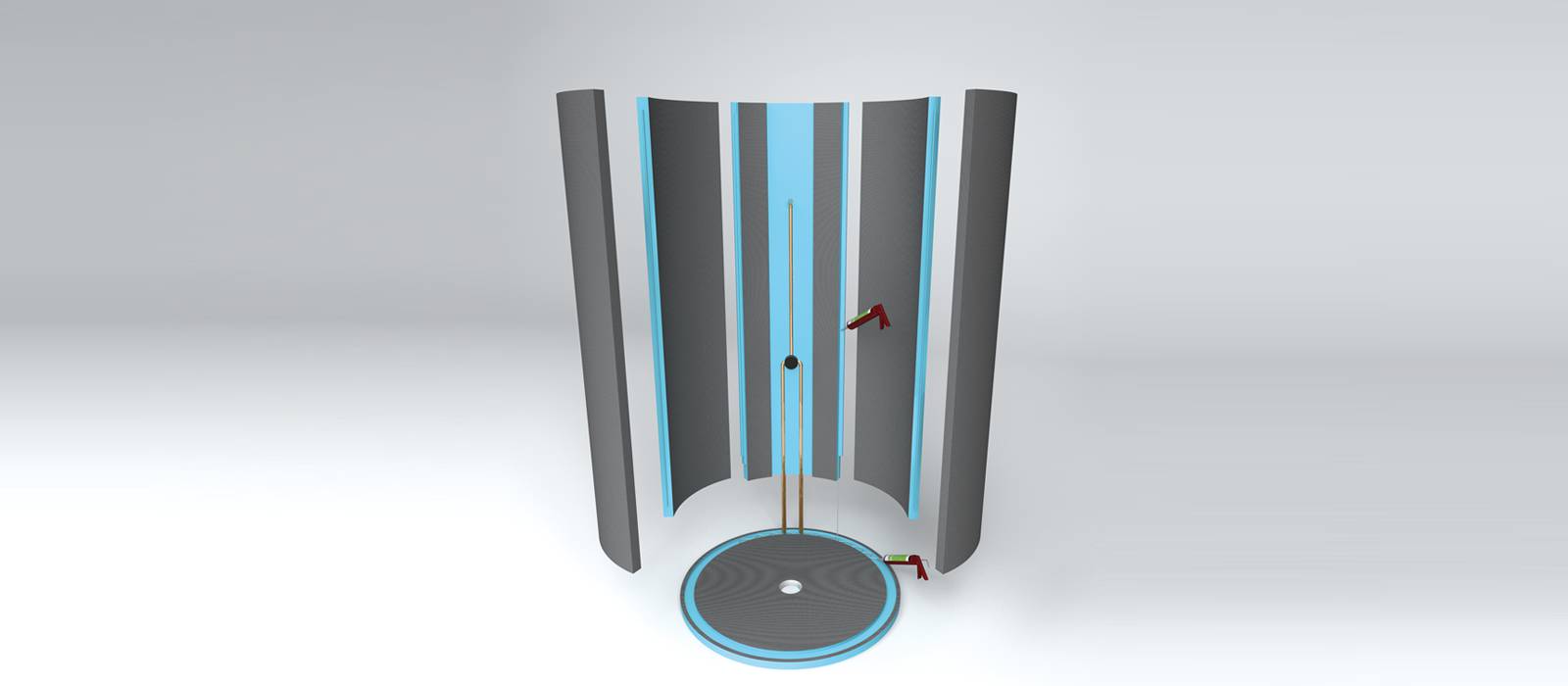

wedi Fundo design showers consist of a floor element and the appropriate separation walls. They are manufactured from the wedi building board base material and are equipped with a fitted and sealed floor drain (vertical or horizontal), a supplementary waterproof coating and a predefined slope. The version Fundo Trollo libero differs from Fundo Trollo by the reinforced back element for attachment of fittings and shower attachments. This also allows for isolated placement. The installation instructions are stated below, taking Fundo Trollo libero as an example.
Step 1 Step 1 Due to the integrated installation ducts, siting of the unit can be made anywhere within the room.
Step 2 Step 2 When installing the floor elements, the cold and hot water inlet pipes should be allocated as per the installation plan.
Step 3 Step 3

Apply Joint Sealant in waves onto the cut-out; then, place the individual wall elements into this cut-out.
Step 4 Step 4

The wall elements are connected by a tongue and groove process using Joint Sealant , which is applied to the groove and on the left and right sides of the tongue.
Step 5 Step 5 Then, the wall elements are installed one after the other in accordance with the installation instructions.
Step 6a Step 6a Flush-mounted fittings: fasten and connect inlet pipes behind the posterior reinforcement board by using drywall screws.
Step 6b Step 6b Surface-mount fittings: fasten wall boards to the posterior reinforcement board, and install suitable tap extension, if required.
Step 7 Step 7 Cut holes for fittings in the cover panel and glue into place.
Step 8a Step 8a

Version Fundo Trollo libero, flush-mounted fittings: Seal holes with Joint Sealant and suitable wedi Tools sealing collars.


Step 8b Step 8b Surface-mount fittings: Seal as with inlet pipe cut-outs.
Step 9 Step 9 Apply wedi Tools reinforcement tape to the inside and outside of the joints.
Step 10 Step 10

Seal the transition of the shower walls to the inside of the floor board by using Joint Sealant .
Step 11 Step 11

Optional height increase by using the extension element is possible. Apply Joint Sealant and wedi Tools reinforcement tape.
Step 12 Step 12 Then, tile as normal and install any desired fittings and shower rod at the reinforced wall element, if applicable.
