Shower Seats and Benches

new

"Fine detail with a strong impact."

wedi prefabricated shower seats and benches install much quicker and easier than metal tray or concrete seats. Plus, they bond well to thinset mortar and are 100 % waterproof due to the CFC-free extruded polystyrene closed cell foam core and will not cause efflorescence or discolorations or waterproofing issues as frequently observed with products including those requiring mortar fills. Create the perfect waterproof seating solution for your shower. wedi Prefabricated Suspended Corner Seats do not require additional blocking installed in the framing. Their mounting brackets are fastened into existing wall studs.

Recangular bench made with 50 mm wedi Building Panel.

These units are pre-made and ready for thinsetinstallation against walls and feature a 3 mm slope to the front.

In order to display YouTube videos, it is necessary that you accept marketing cookies. Please see our privacy policy for more information. To the cookie settings

Technical data

Technical properties Shower Seat and Benches

Rectangular bench made with 51 mm wedi Building Panel, full foam corner seat made of solid XPS foam.
These units are pre-made and ready for thinset installation against walls and feature a 3 mm slope to the front.

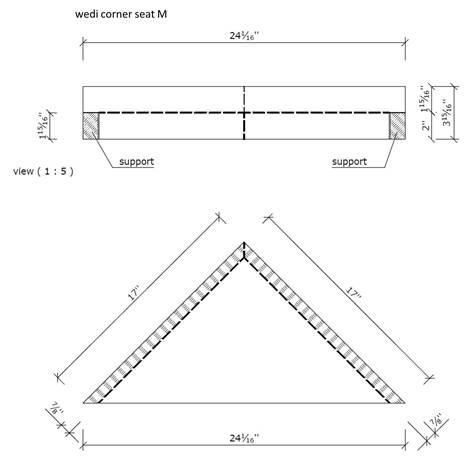

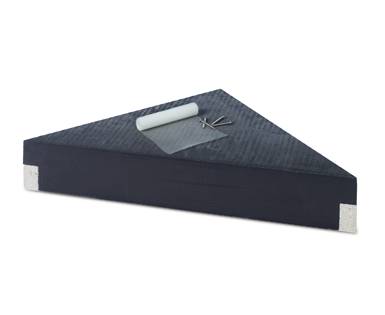

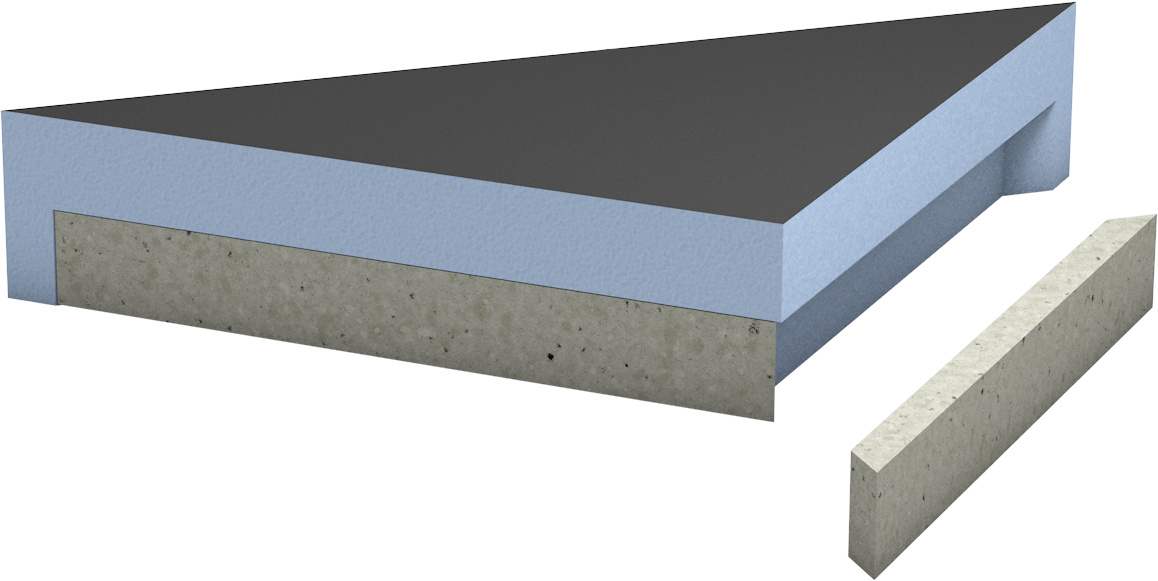

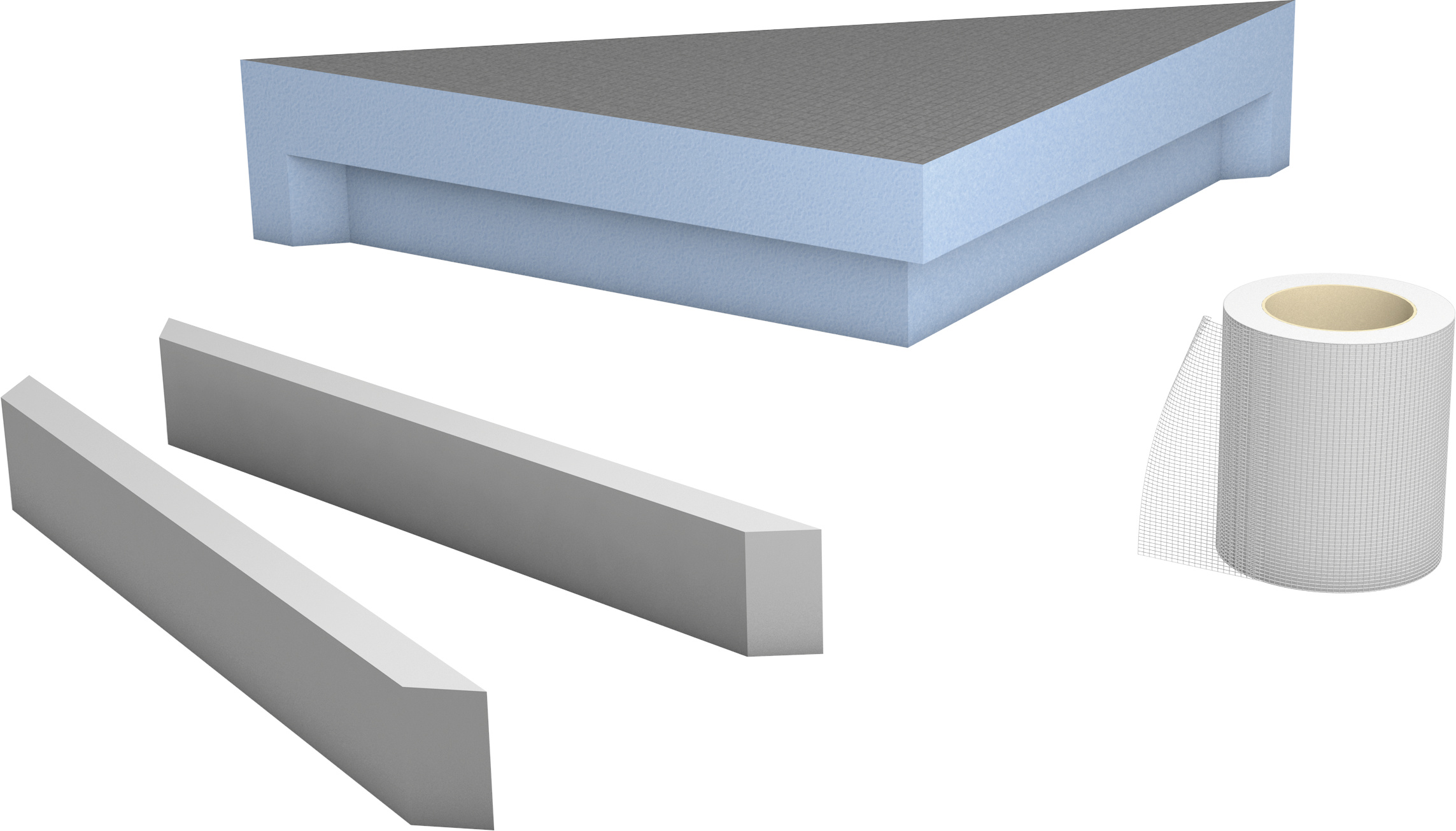

wedi Suspended Corner Seat M
Width (wall sides)	432 mm
Length (wall sides)	432 mm
Height	100 mm
wedi Suspended Corner Seat L
Width (wall sides)	610 mm
Length (wall sides)	610 mm
Height	100 mm

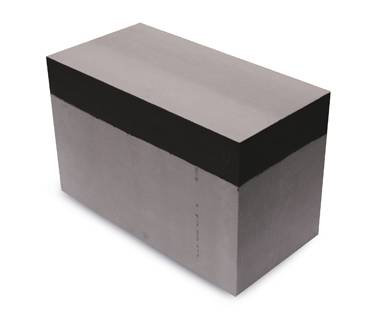

Bench rectangular
Width	584 mm
Length	584 mm
Higth 508 mm
Base Material of shower seats and benches	XPS/ Extruded Polystyrene Foam Core covered with fiberglass mesh fully embedded in a cement based resin coating
Surface Burning Characteristics; ASTM E84-04 and UL 1715	Passed
Tensile Strength ( Thinset Mortar to wedi Coating to Foam); ASTM C297	0.45 N/mm²
Shear Strength (Thinset Mortar to wedi Coating to Foam); within ANSI 118.10-1999; wet conditions	0.37 N/mm²
Flexural Strength; ASTM C947	4.32 N/mm²
Waterproofness of Assembled System; IAPMO PS 106-2015	Passes
Drain Assembly Kit, WaterMark	Passes
Temperature Exposure Limits	-50 C to + 80 C
Long-term compressive strength (50 years) ≤ 2% compression EN 1606	0.08 N/mm²
Compressive resistance or compressive strength at 10% compression EN 826	0.25 N/mm²
Fungus & Bacteria Resistance	No Growth , Passes
Robinson Floor Test; ASTM C627 *with 200 x 200 x 6 mm Porcelain Tile	Heavy Duty Commercial Use, Passes
R-Value, ASTM C518	25mm of wedi foam = 4.3

Product sizes

Order no.	Designation	Length x width x thickness
US3000001	wedi Suspended Corner Seat M	432 x 432 (wallsides) x 100 mm
US3000002	wedi Suspended Corner Seat L	610 x 610 (wallsides) x 100 mm
073784101	wedi Rectangular Bench	584 x 584 x 508 mm sloped
