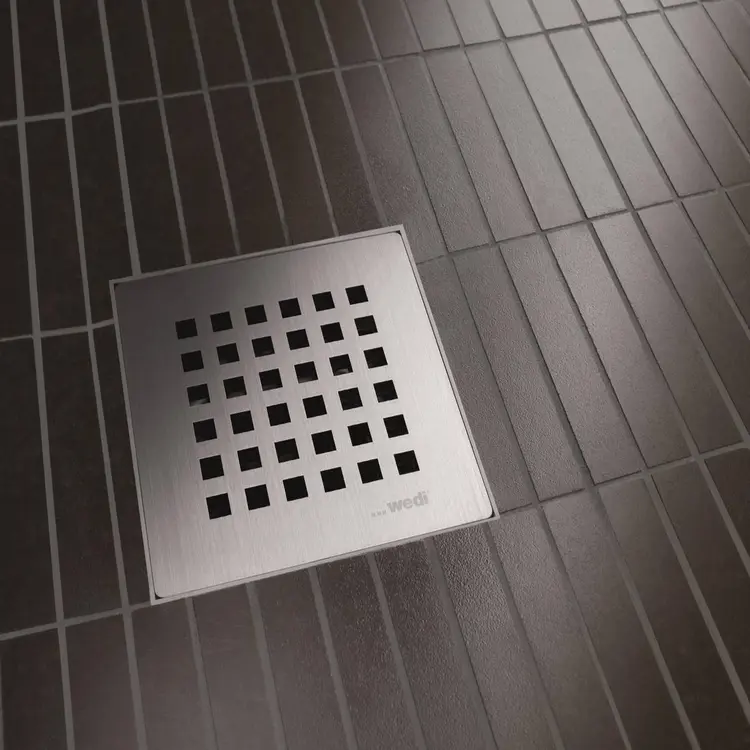

Angular wedi Fundo shower drain grates for point drainage

Product information

Specifically for Fundo shower elements we have developed a wide variety of drain covers ranging from classic to modern right through to covers made from massive stainless steel.

These drains can be combined with the following Fundo series:

Fundo Primo
Fundo Ligno

Technical Details

Technical properties Fundo covers

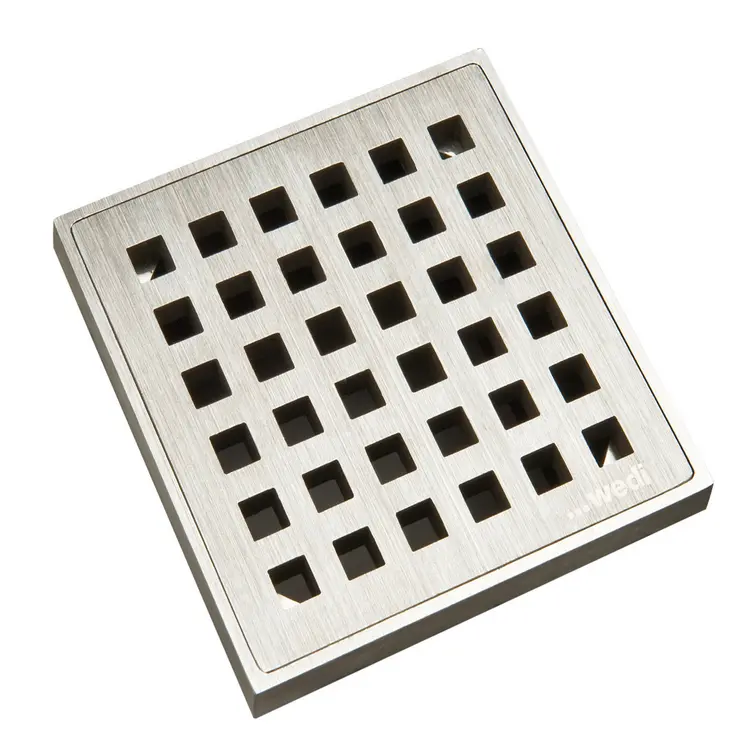

wedi Fundo Fino drain grates, stainless steel brushed	100 x 100 mm

Order no.	Designation	L x W x thickness

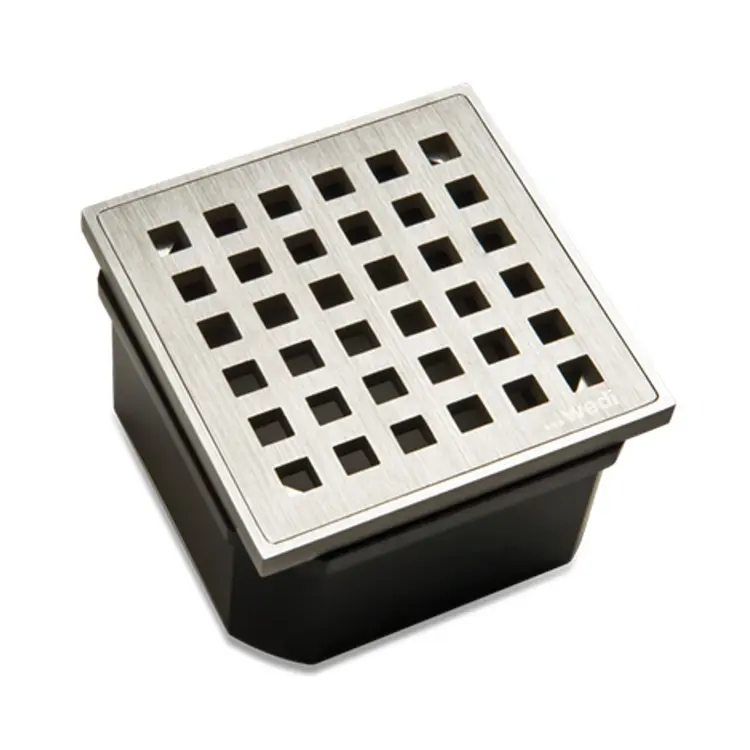

US1000031	wedi Fundo Drain Cover Set, Brushed Stainless Steel	100 × 100 mm
US1000045	wedi Fundo Drain Cover Set Tileable for tiles height of maximum 13 mm	100 × 100 mm
077000054	wedi Grate Height Adjustment Kit	1 pc

Downloads

Sealing concept wedi Australia

Shower & Spa Systems Solutions

wedi Shower Systems

Usage

In domestic residential construction
In publicly accessible buildings and workplaces complying with DIN 18040 part 1
In accessible dwellings complying with DIN 18040 part 2 (note specifications for minimum tile size if wheelchair access is planned, see technical properties)
As a construction seal combined with tile and natural stone coverings of load class A0, A and B (floors subject to moderate surface flowing water in interior areas; directly loaded floors in rooms in which tap or cleaning water is used very frequently or for long periods, and floors of indoor and outdoor pools that are filled with water with the properties of drinking water).
