„The Specialist for Suspended Timber Floors.“

Product information

The floor-level shower element designed for use with timber floors, and with outer edges of only 20 mm. Unlike traditional shower elements, the Fundo Ligno has been adapted to be integrated into a wooden floor covering – without building up further height and without time-consuming levelling measures it fits into its environment perfectly.
The tileable shower units are not only highly practical and reliable, they have opened up a whole new world of design possibilities for wet rooms and bathrooms.

  • Certainty thanks to a uniform predefined slope
  • Entire system is 100% waterproof
  • Simple and safe to work with - tested by those in the trade

All advantages at a single glance

Technical properties Fundo Ligno


Wheelchair load-bearing from minimum tile size< 50 x 50 mm;
Glass mosaic from minimum size 20 x 20 mm;
Minimum foundation height depending on the drai
130 mm;
97 mm;
vertical drain 40 mm;
Surface slope (from outer edge of Fundo flo ≥ 1,57 %


Fire behaviour EN 13501 E


Technical properties – Drain

Special
Frame with stainless steel grid available in th 120 × 120 mm
Ø 120 mm
Drain performance depending on the drain select
Fundo drain Mini Max, horizontal, DN 40 0,5 l/s ;
30 l/min
Fundo drain, horizontal, DN 50 0,80 l/s ;
48,0 l/min
Fundo drain, vertical, DN 50 1,10 l/s ;
66,0 l/min
Fundo drain, vertical, DN 70 0,80 l/s ;
48 l/min
Fundo drain, vertical, DN 50, fire stopp 1,10 l/s ;
66,0 l/min

Product sizes

Order no. Designation Length x width x thickness

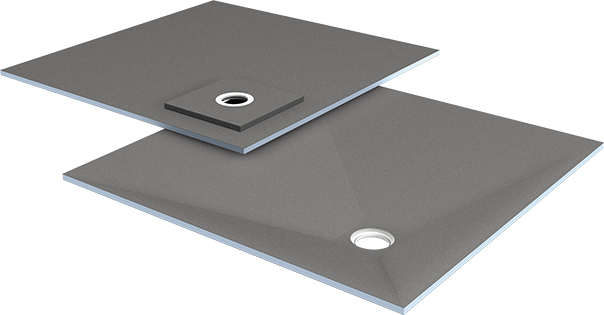

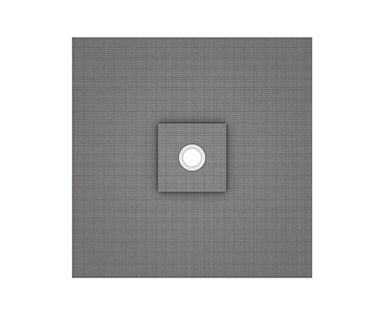

073732011 Fundo Ligno shower element, square, drain central 900 x 900 x 20/41 mm

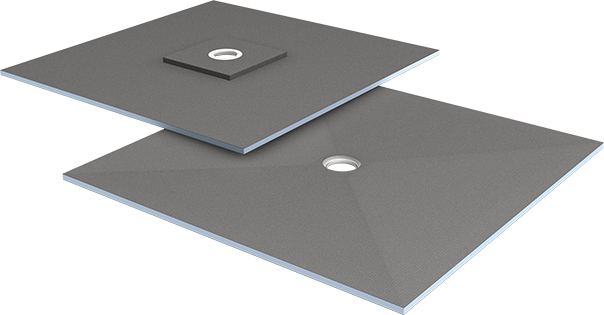

073732019 Fundo Ligno shower element, square, drain central 1000 x 1000 x 20/41 mm
073732012 Fundo Ligno shower element, square, drain central 1200 x 1200 x 20/41 mm
073732013 Fundo Ligno shower element, square, drain central 1500 x 1500 x 20/41 mm

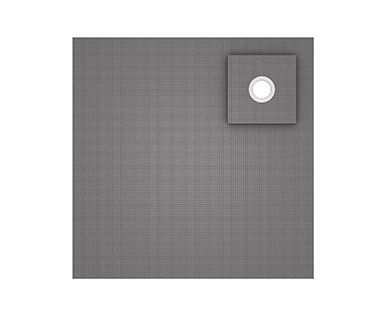

073732021 Fundo Ligno shower element, square, drain offset 900 x 900 x 20/41 mm

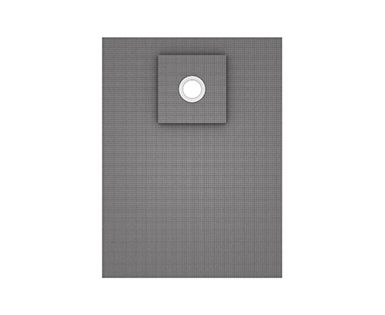

073732025 Fundo Ligno shower element, rectangular, drain offset 1200 x 1000 x 20/41 mm
073732023 Fundo Ligno shower element, square, drain offset 1200 x 1200 x 20/41 mm
073732022 Fundo Ligno shower element, rectangular, drain offset 1200 x 900 x 20/41 mm
073732024 Fundo Ligno shower element, rectangular, drain offset 1600 x 900 x 20/41 mm
073732026 Fundo Ligno shower element, rectangular, drain offset 1600 x 1000 x 20/41 mm

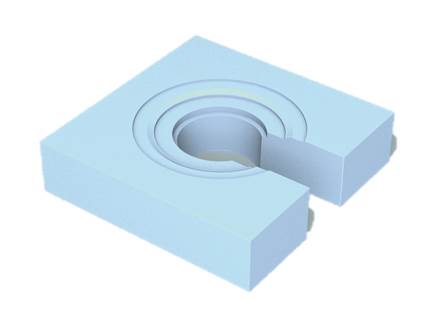

073732090 Fundo Ligno, drain-substructure element 338 × 338 × 82

Areas of use Fundo Ligno

  • In domestic residential construction
  • In publicly accessible buildings and workplaces complying with DIN 18040 part 1
  • In accessible dwellings complying with DIN 18040 part 2 (note specifications for minimum tile size if wheelchair access is planned, see technical properties)
  • As a construction seal combined with tile and natural stone coverings of the load class A0 (moderately loaded floor surfaces subject to surface flowing water in indoor applications; directly loaded floor surfaces in rooms)

Mandatory articles

Optional articles
