Fundo Primo Shower Kit
„The wedi wet room system in a box.“
Product information

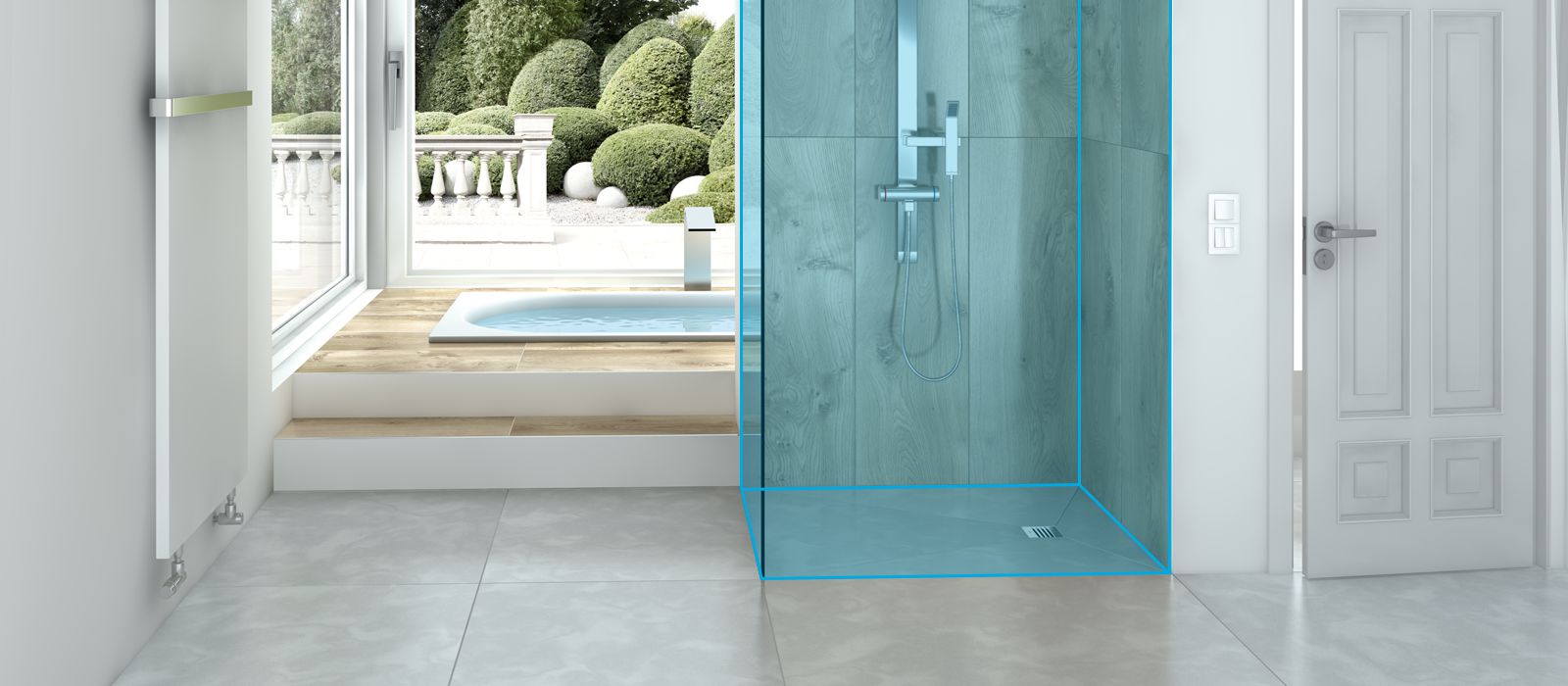

wedi thinks and creates systems for added value in the wet room. The wedi shower kit is a one-box only complete kit for the creation of a corner shower that is level with the floor.

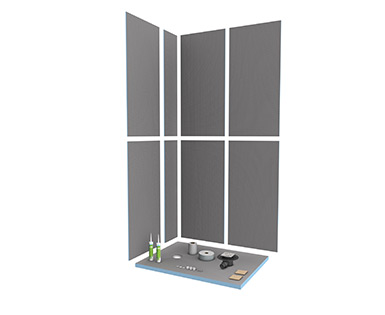

It contains all materials that are required for a watertight corner shower: a reliable floor construction consisting of a floor element, drain system, wedi building board wall solution as well as sealing and installation accessories.
- Safe transport in a box
- Perfectly matched
- Complete peace of mind for installers and end users

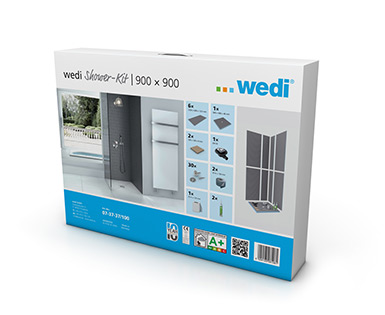

Content Fundo Shower-Kit 900x900:

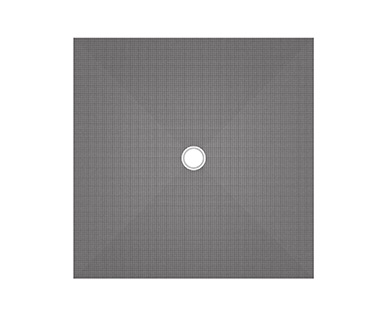

1x Fundo Primo 900x900 mm

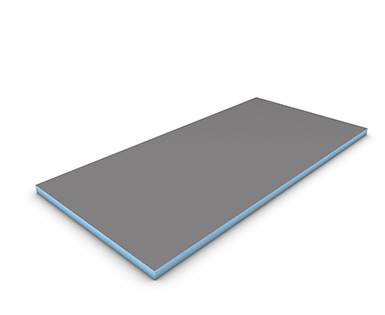

6x Building board 1250x600x12,5 mm
2x Fastening panels 100x100 mm
1x wedi Fundo drain, horizontal DN50
30x wedi Tools dowels, insulation board discs, self-tapping screws
2x wedi 610 cartridges
10m Sealing tape

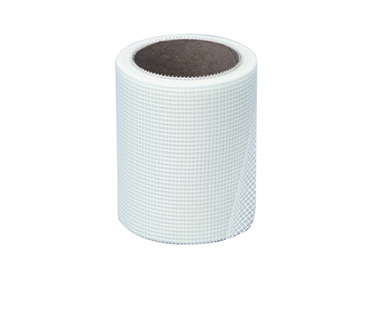

25m Joint reinforcement tape

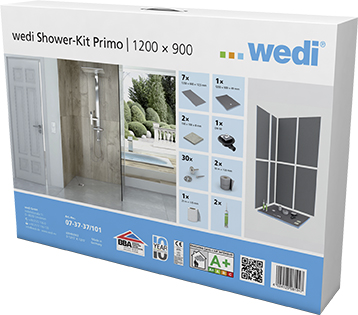

Inhalt Fundo Shower-Kit 1200x900:

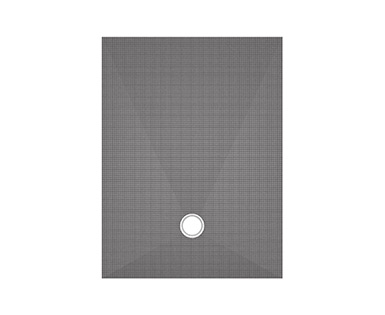

1x Fundo Primo 1200x900 mm
7x Building board 1250x600x12,5 mm
2x Fastening panels 100x100 mm
1x wedi Fundo drain, horizontal DN50
30x wedi Tools dowels, insulation board discs, self-tapping screws
2x wedi 610 cartridges
10m Sealing tape
25m Joint reinforcement tape
All advantages at a single glance
Product video: Fundo Primo Shower Kit
Product information
wedi thinks and creates systems for added value in the wet room. The wedi shower kit is a one-box only complete kit for the creation of a corner shower that is level with the floor.
It contains all materials that are required for a watertight corner shower: a reliable floor construction consisting of a floor element, drain system, wedi building board wall solution as well as sealing and installation accessories.
- Safe transport in a box
- Perfectly matched
- Complete peace of mind for installers and end users
1x Fundo Primo 900x900 mm
6x Building board 1250x600x12,5 mm
2x Fastening panels 100x100 mm
1x wedi Fundo drain, horizontal DN50
30x wedi Tools dowels, insulation board discs, self-tapping screws
2x wedi 610 cartridges
10m Sealing tape
25m Joint reinforcement tape
Inhalt Fundo Shower-Kit 1200x900:
1x Fundo Primo 1200x900 mm
7x Building board 1250x600x12,5 mm
2x Fastening panels 100x100 mm
1x wedi Fundo drain, horizontal DN50
30x wedi Tools dowels, insulation board discs, self-tapping screws
2x wedi 610 cartridges
10m Sealing tape
25m Joint reinforcement tape
All advantages at a single glance
Product video: Fundo Primo Shower Kit
Technical properties Fundo Showerkit
For impact sound insulated floor structures, installation of impact sound insulation under wedi Fundo and perimeter isolation strips should be planned: Construction using wedi Nonstep Plan impact sound deadening boards (6 mm rubber granulate insulation element, Δ L W,R = 14 dB in accordance with DIN 52210). Alternatively, approved polythene membranes may be used.
Permitted noise level in accordance with DIN 4109 LIn ≤ 30 dB(A) and in accordance with VDI 4100 SSt III ≤ 25 dB (A), caused by water installations: complied with using wedi Fundo and Nonstep Plan.
Wheelchair load-bearing from minimum tile size | 50 x 50 mm |
Glass mosaic from 3 mm, minimum size | 20 x 20 mm |
Minimum foundation height depending on the drain: horizontal drain, DN 50 horizontal drain Mini Max, DN 40 |
130 mm |
Surface slope (from outer edge of Fundo floor element to outer edge drain opening) (exception: Fundo Nautilo, 28 mm Surface slope) |
18 mm |
Special drain with odour trap and stainless steel cover. |
|
Frame with stainless steel grid available in the following dimensions: | 95 × 95 mm 120 × 120 mm 142 × 142 mm Ø 120 mm |
Drain performance depending on the drain selected: |
|
Fundo drain, horizontal, DN 50 | 0,80 l/s ; 48,0 l/min |
Areas of use Fundo Shower-Kit
- In domestic residential construction
- In publicly accessible buildings and workplaces complying with;
DIN 18040 Part 1 - In accessible dwellings complying with DIN 18040 part 2 (note specifications for minimum tile size if wheelchair access is planned, see technical properties)
- As a construction seal combined with tile and natural stone coverings of load class A0, A and B (floors subject to moderate surface flowing water in interior areas;
directly loaded floors in rooms in which tap or cleaning water is used very frequently or for long periods, and floors of indoor and outdoor pools that are filled with water with the properties of drinking water).
