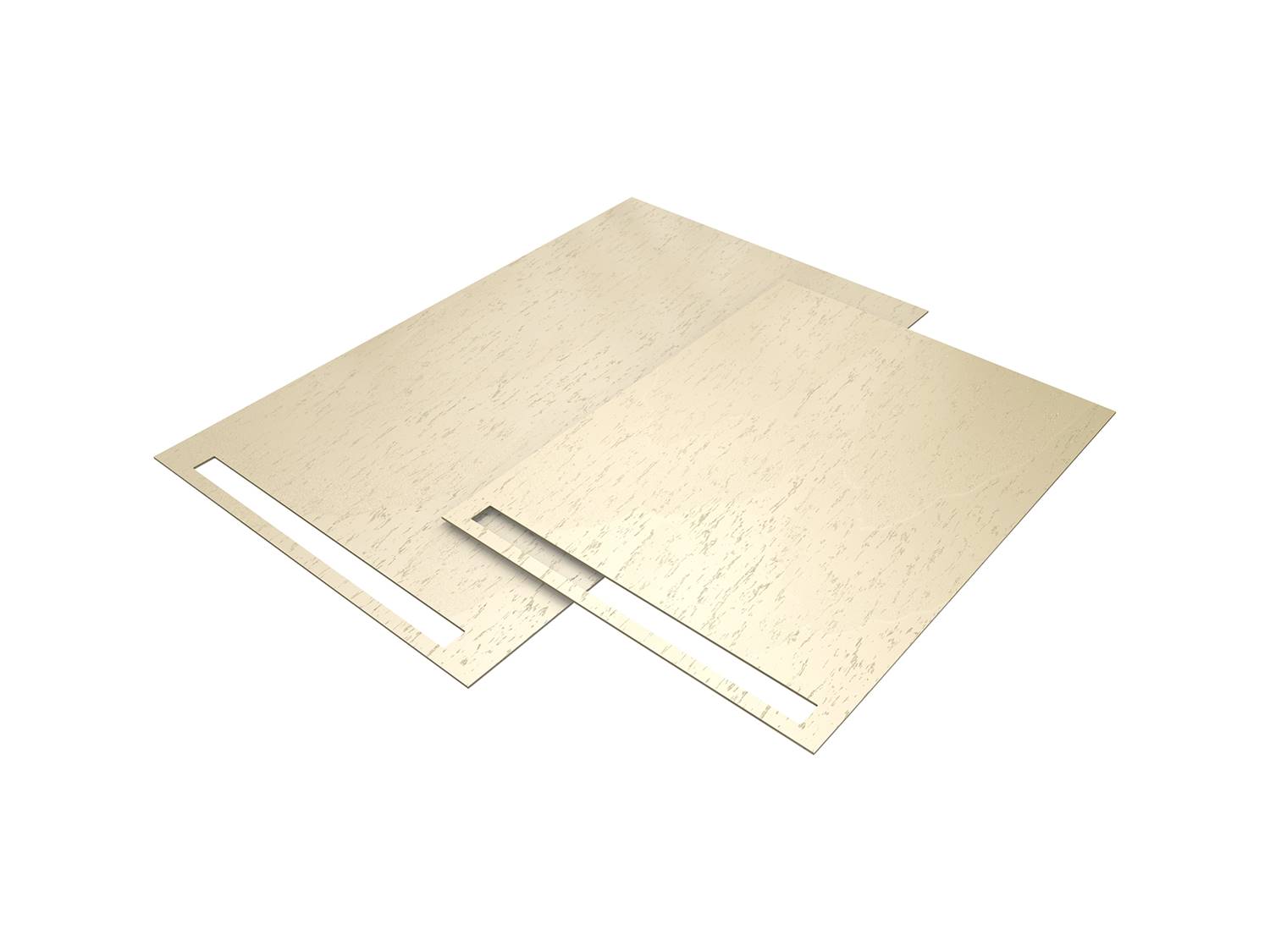

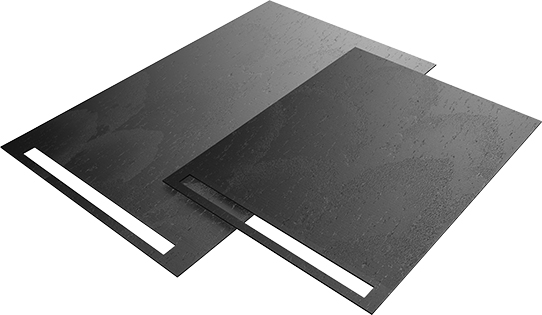

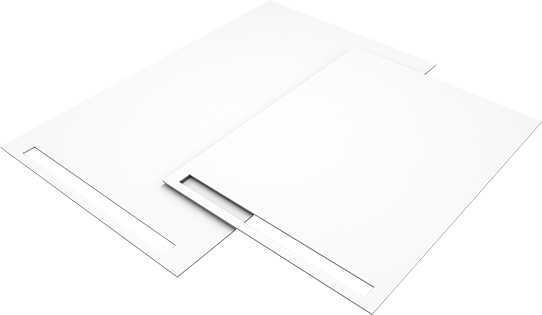

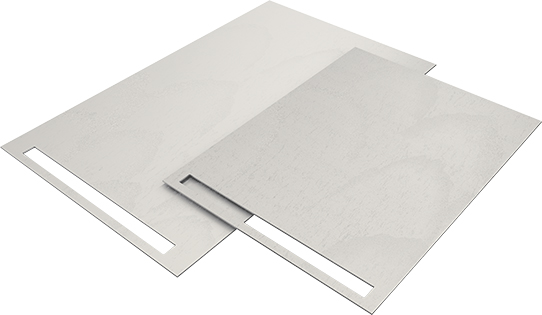

Fundo Top Riolito Neo

Fundo Top Riolito Neo

"Ready-to-install surface for Fundo Riolito Neo shower elements"

Product information

The wedi Fundo Top Riolito Neo is a sleek, finished surface for Fundo Riolito Neo floor elements and a high-quality alternative to traditional tiling. The one-piece, seamless element is made of a 6 mm thick, high-quality coloured material with an elegant look and a very pleasant feel. The material always feels just the right temperature and, at the same time, is very durable. It is also capable of bearing a wheelchair with no problem. The various Fundo Tops are perfect complements to the wedi Fundo Riolito Neo floor elements and are available in a variety of sizes.

As a water resistant system component, the ready-to-fit Fundo Top Riolito Neo can be applied particularly easily and safely to the corresponding Fundo Riolito Neo floor element and can be flexibly adjusted right up to final installation. The non-slip and antibacterial surface ensures firm footing and maximum convenience while showering. This convenience is also reflected in the easy-to-clean and dirt-resistant surface.

Whether large or small, square or rectangular – wedi Fundo Top is the perfect surface for Fundo Riolito Neo with linear drainage. Together, this pair offers the right solution for every bathroom, simultaneously stylish and functional. The Fundo Top and the floor element can be easily trimmed depending on the space situation. For tailor-made installation, straightforward and safe.

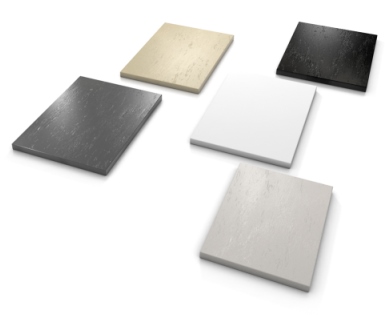

These surfaces create a seamless, thus not only attractive but hygienic and low maintenance finish. Different shades and textures allow for a wide range of variations thus individually tailored designs. What’s more, they are easy to cut to the required dimensions thus suitable for new builds and renovations as well.

  • Classic, contemporary design
  • Can easily be adjusted to the desired size
  • Maximum comfort and reliability
  • Quick and easy installation
  • Low-maintenance and easy to clean

Fundo Top Riolito Neo

Technical properties Fundo Top Riolito Neo



Material colour pure white
Material colour stone grey, concrete grey, carbon black
Acrylic resin bonded mineral material
Mineral and vinyl composite material
Material thickness 6 mm

Weight colour pure white
Weight colour stone grey, concrete grey, carbon black
9,6 kg/m²
9,0 kg/m²

Coefficient of thermal expansion colour pure white
Coefficient of thermal expansion colour stone grey, concrete grey, carbon black
5.6 · 10-6 · K¯¹ (in accordance with DIN 53752)

7.07 x 10-5 K¯¹ (DIN 53752)

Bending strength colour pure white
Bending strength colour stone grey, concrete grey, carbon black
65 N/mm² (in accordance with DIN EN 310)
80 MPa (DIN 53452)
Ball indentation hardness 260 N/mm² (in accordance with DIN ISO 2039-1)

Tensile strength colour pure white
Tensile strength colour stone grey, concrete grey, carbon black
37 MPa (in accordance with DIN EN ISO 527)
45 MPa (DIN 53455)
Continuous temperature resistance up to 70°C (in accordance with DIN EN ISO 13894-1)
Water resistance present
Suitable for underfloor / wall heating yes
Ability to resist temperature changes passed (-50°C/+70°C)
Fire behaviour E (in accordance with EN 13501-1)
Bacterial resistance

resistant to mould and bacterial contamination (in accordance with DIN EN ISO 846 A/C), demonstrable reduction of bacteria on the surface (up to 99.9% within 24 hours in accordance with JIT Z 2801)
Chemical resistance resistant to normal household chemicals
Scratch resistance present (see care instructions)
Impact resistance present
Floor impact resistance performance class Performance class 33 for areas with heavy use such as: shop fitting / hotels (in conformity with DIN EN 13329)
Cuttability
Can be worked with all common tools, such as a hand-held circular saw. A jigsaw can be used for recesses in the wedi Top Wall for fittings.

Slip resistance colour pure white
Slip resistance colour stone grey, concrete grey, carbon black
A (in accordance with DIN 51097)
B (in accordance with DIN 51097)
Wheel-chair navigability present
Cleanability easy to clean (see care instructions)
Ease of disposal Waste code 170203 construction and demolition waste

Surface quality colour pure white
Surface quality colour stone grey, concrete grey, carbon black
homogeneous surface
textured natural stone look
Feel heat-retaining

Product sizes

Order no. Designation Length × Width × Thickness
072020100 Fundo Top ready-to-fit surface for Fundo Riolito Neo, Pure White, suitable for 075100004 1200 × 900 × 6 mm
072020101 Fundo Top ready-to-fit surface for Fundo Riolito Neo, Pure White,suitable for 075100034 1600 × 1000 × 6 mm
072020102 Fundo Top ready-to-fit surface for Fundo Riolito Neo, Pure White, suitable for 075100005 1800 × 900 × 6 mm
072020500 Fundo Top ready-to-fit surface for Fundo Riolito Neo, Stone Grey, suitable for 075100004 1200 × 900 × 6 mm
072020501 Fundo Top ready-to-fit surface for Fundo Riolito Neo, Stone Grey,suitable for 075100034 1600 × 1000 × 6 mm
072020502 Fundo Top ready-to-fit surface for Fundo Riolito Neo, Stone Grey, suitable for 075100005 1800 × 900 × 6 mm
072020800 Fundo Top ready-to-fit surface for Fundo Riolito Neo, Concrete Grey, suitable for 075100004 1200 x 900 x 6 mm
072020801 Fundo Top ready-to-fit surface for Fundo Riolito Neo, Concrete Grey,suitable for 075100034 1600 x 1000 x 6 mm
072020802 Fundo Top ready-to-fit surface for Fundo Riolito Neo, Concrete Grey, suitable for 075100005 1800 x 900 x 6 mm
072020600 Fundo Top ready-to-fit surface for Fundo Riolito Neo, Carbon Black, suitable for 075100004 1200 x 900 x 6 mm
072020601 Fundo Top ready-to-fit surface for Fundo Riolito Neo, Carbon Black, suitable for 075100034 1600 x 1000 x 6 mm
072020602 Fundo Top ready-to-fit surface for Fundo Riolito Neo, Carbon Black, suitable for 075100005 1800 x 900 x 6 mm
072020900 Fundo Top ready-to-fit surface for Fundo Riolito Neo, marble white, suitable for 075100004 1.200 x 900 x 4 mm
072020901 Fundo Top ready-to-fit surface for Fundo Riolito Neo, marble white, suitable for 075100035 1.600 x 1.000 x 4 mm
072020902 Fundo Top ready-to-fit surface for Fundo Riolito Neo, marble white, suitable for 075100005 1.800 x 900 x 4 mm
072020920 Fundo Top ready-to-fit surface for Fundo Riolito Neo, marble grey-beige, suitable for 075100004 1.200 x 900 x 4 mm
072020921 Fundo Top ready-to-fit surface for Fundo Riolito Neo, marble grey-beige, suitable for 075100035 1.600 x 1.000 x 4 mm
072020922 Fundo Top ready-to-fit surface for Fundo Riolito Neo, marble grey-beige, suitable for 075100005 1.800 x 900 x 4 mm
072020940 Fundo Top ready-to-fit surface for Fundo Riolito Neo, marble grey-brown, suitable for 075100004 1.200 x 900 x 4 mm
072020941 Fundo Top ready-to-fit surface for Fundo Riolito Neo, marble grey-brown, suitable for 075100035 1.600 x 1.000 x 4 mm
072020942 Fundo Top ready-to-fit surface for Fundo Riolito Neo, marble grey-brown, suitable for 075100005 1.800 x 900 x 4 mm
072020960 Fundo Top ready-to-fit surface for Fundo Riolito Neo, marble black, suitable for 075100004 1.200 x 900 x 4 mm
072020961 Fundo Top ready-to-fit surface for Fundo Riolito Neo, marble black, suitable for 075100035 1.600 x 1.000 x 4 mm
072020962 Fundo Top ready-to-fit surface for Fundo Riolito Neo, marble black, suitable for 075100005 1.800 x 900 x 4 mm

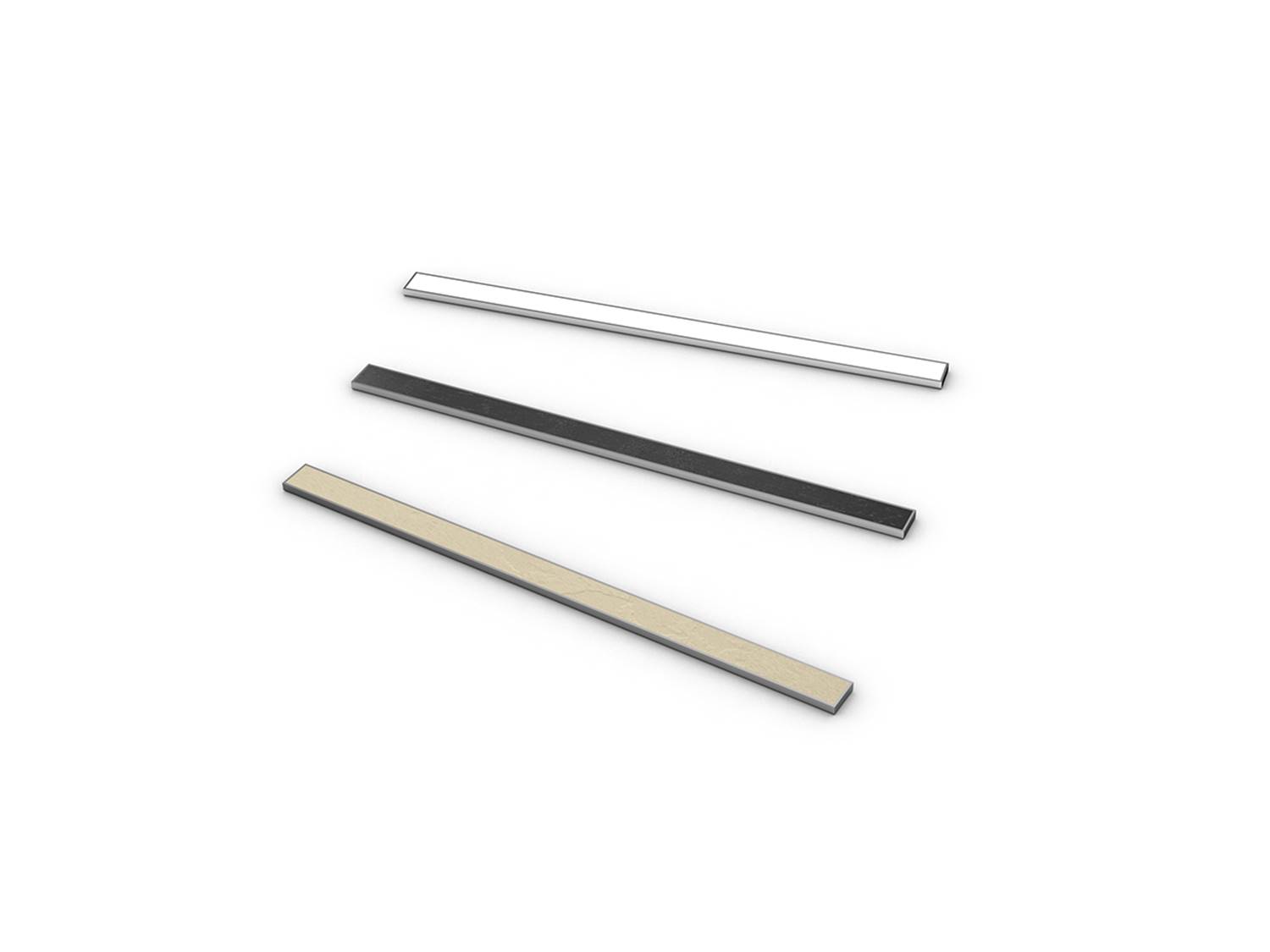

072000100 Fundo Top channel cover set, for Fundo Riolito Neo, Pure Withe 790 x 45 x 13 mm
072000500 Fundo Top channel cover set, for Fundo Riolito Neo, Stone Grey 790 x 45 x 13 mm
072000800 Fundo Top channel cover set, for Fundo Riolito Neo, Concrete Grey 790 x 45 x 13 mm
072000600 Fundo Top channel cover set, for Fundo Riolito Neo, Carbon Black 790 x 45 x 13 mm
072040100 Fundo Top cladding for Fundo Primo, Plano, Riolito Neo, Pure White 1880 x 200 x 6 mm
072040500 Fundo Top cladding for Fundo Primo, Plano, Riolito Neo, Stone Grey 1880 x 200 x 6 mm
072040800 Fundo Top cladding for Fundo Primo, Plano, Riolito Neo, Concrete Grey 1880 x 200 x 6 mm
072040600 Fundo Top cladding for Fundo Primo, Plano, Riolito Neo, Carbon Black 1880 x 200 x 6 mm

wedi
In order to display YouTube videos, it is necessary that you accept marketing cookies. Please see our privacy policy for more information. To the cookie settings

Areas of use Fundo Top Riolito Neo

Installation:
As a 100 % wedi system component, the Fundo Top is bonded onto the already installed Fundo shower element using wedi 610 adhesive and sealant.
wedi Top Wall can be used on all common substrates such as tiles, plaster or plasterboard, among other things, as well as wedi building boards, wedi Subliner sealing membranes and wedi 520 sealant.
The floor and wall surfaces in the wedi Top range can be individually adjusted to the required size and wall surfaces are also easily cut to desired shapes and dimensions thus allow for individual surface designs.

Transport and storage:
These elements should be transported with great care and stored horizontally in the packaging intended for this purpose.

Miscellaneous:
Information concerning care, cleaning and repair can be found in the separate care instructions. These are enclosed with the product and are available online at www.wedi.eu.
