Product information
The fully prepared solution for cladding WC dry wall installations. Both solutions include all components required for quick and easy cladding of WC dry wall installations. The choice of the right cladding element depends on the final surface design, e.g. small or large-format tiles, mosaic or plaster.
wedi I-Board (1200 x 1245 x 20 mm) is a pre-fabricated element for the cladding of wall-mounted WCs. With a width of 1,200 mm, it can easily be adapted to virtually all needs. The connection to the carrier element is made either with wedi 610 adhesive and sealant or alternatively with the wedi Tools washers and the included self-tapping screws. Despite the the I-Board being light weight, it is extremely strong, stable and is suitable for large-format tiling (up to 400 kg weight load from a tile size of 10 x 10 cm). The installed cladding board can be tiled directly without further surface preparation.
Especially for plaster and mosaic tiling - the wedi I-Board Plus combines all the benefits of the tried and tested wedi I-Board but has an additional reinforcement plate integrated in the factory. As a result, the pressure load from the attached WC ceramics is perfectly offset so that the dry wall installation can be individually tiled with mosaic from 2 × 2 cm or plastered (plaster ≥ 3 mm).
- Simple and quick to install
- For tiles, plaster and mosaic
- Can be cut individually

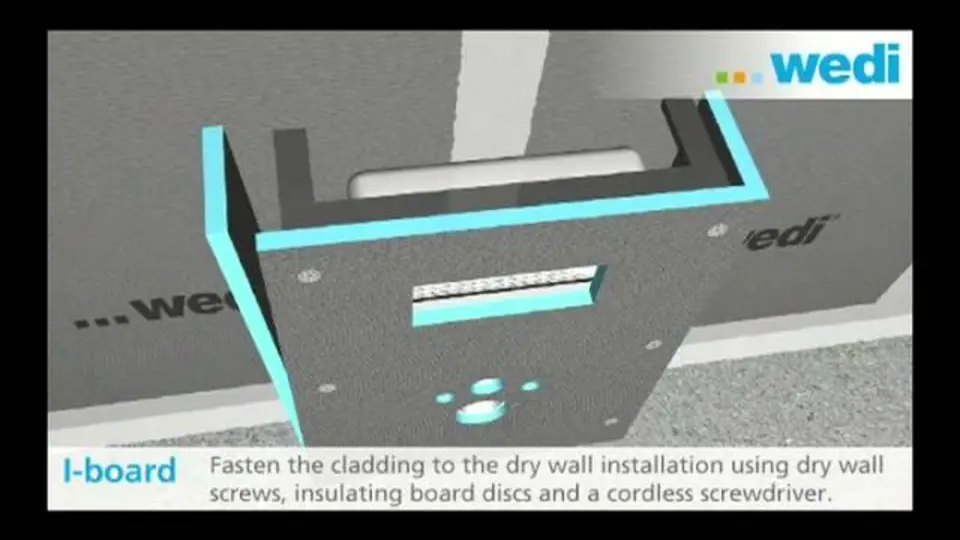

Wall toilet installation with the i-board
Technical Details
| Technical data of building board and I-Board Plus | |
|---|---|
| Fire behaviour EN 13501 | E |
| Tensile strength | 0,28 N/mm² |
| Linear coefficient of thermal expansion | 0,02 mmhttps://www.wedi.net/typo3/record/edit?token=a854269b4f15e636215f80e395792c226858f404&edit%5Bsys_category%5D%5B150%5D=edit&returnUrl=%2Ftypo3%2Fmodule%2Fdashboard%3Ftoken%3Dc9534a403ca18cdb5efc187f651d3a54eda4e5df#/mk |
| Strong | til 4 KN |
| Technical properties – Rigid foam | |
| Long-term compressive strength (50 years) ≤ 2% compression EN 1606 | 0,08 N/mm² |
| Compressive resistance or compressive strength at 10% compression EN 826 | 0,25 N/mm² |
| Associated modulus of elasticity EN 826 | 10 – 18 N/mm² |
| Thermal conductivity EN 13164 | 0,036 W/mK |
| Tensile strength EN 1607 | 0,45 N/mm² |
| Shearing resistance EN 12090 | 0,2 N/mm² |
| Shear modulus EN 12090 | 7 N/mm² |
| Bulk density EN 1602 | 32 kg/m³ |
| Resistance to water vapour diffusion(μ) EN 12086 | 100 |
| Water absorption under long-term immersion EN 12087 | ≤ 1,5 Vol.-% |
| Capillar action | 0 |
| Linear coefficient of thermal expansion | 0,07 mm/mK |
| Temperature limits | -50°C / +75°C |
| Fire behaviour of construction materials EN 13501, building material class | E |
| Carbon dioxide propellant GWP value | 1 |
Downloads
Usage
- The wedi I-Board is a completely pre-fabricated element for cladding wall-mounted toilets. With its width of 120 cm, this board can be easily adapted and adjusted to any individual needs. Despite it being light weight, it is extremely stable and robust.
- The wedi I-Board is suitable for cladding of commercially available toilet installation frames and can subsequently be tiled. The minimum required tile size is 100 × 100 × 7 mm. All commercially available toilet types can be installed on the tiled wedi I-Board. When using wedi I-Board with Villeroy & Boch toilets installed with the Suprafix installation technique, the lining from Villeroy & Boch is also to be used. When using linings of other manufacturers, the wedi I-Board Plus is to be used.
- The wedi I-Board Plus is suitable for cladding toilet drywall installation frames and can subsequently be tiled or plastered. The minimum required tile size is 20 × 20 × 6 mm. All commercially available toilet types can be installed on the finished wedi I-Board Plus.
