Product information

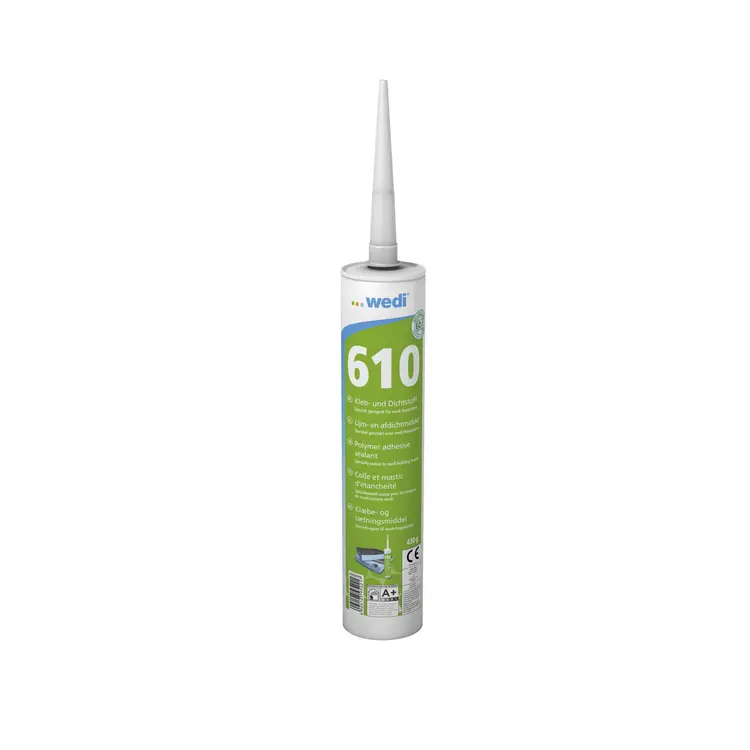

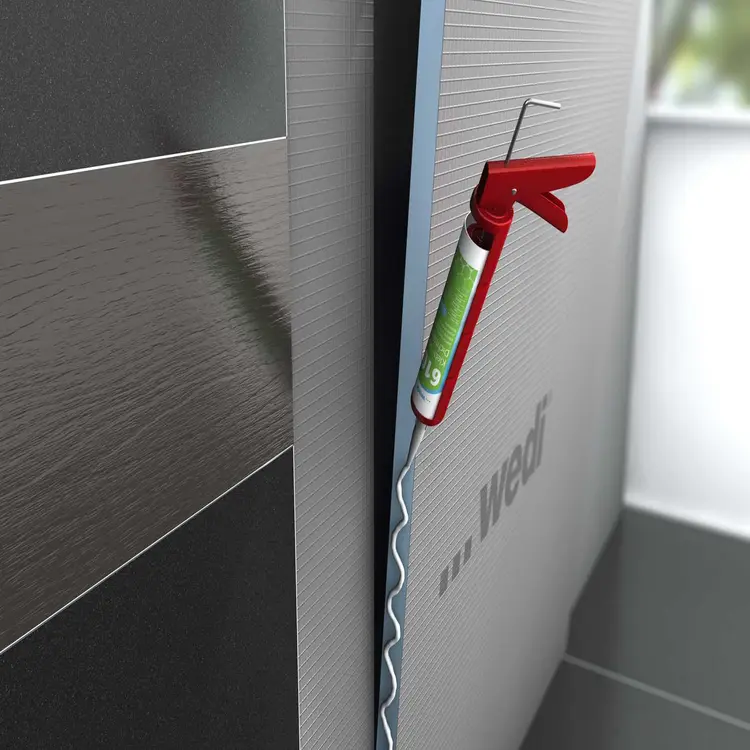

wedi 610– Better to be safe than sorry. As a versatile single-component adhesive sealant, wedi 610 is especially suited to waterproof butt joints of building boards. Furthermore, wedi 610 has outstanding resistance to the elements; and to chemicals; and is also free of solvents, silicon and PCP.

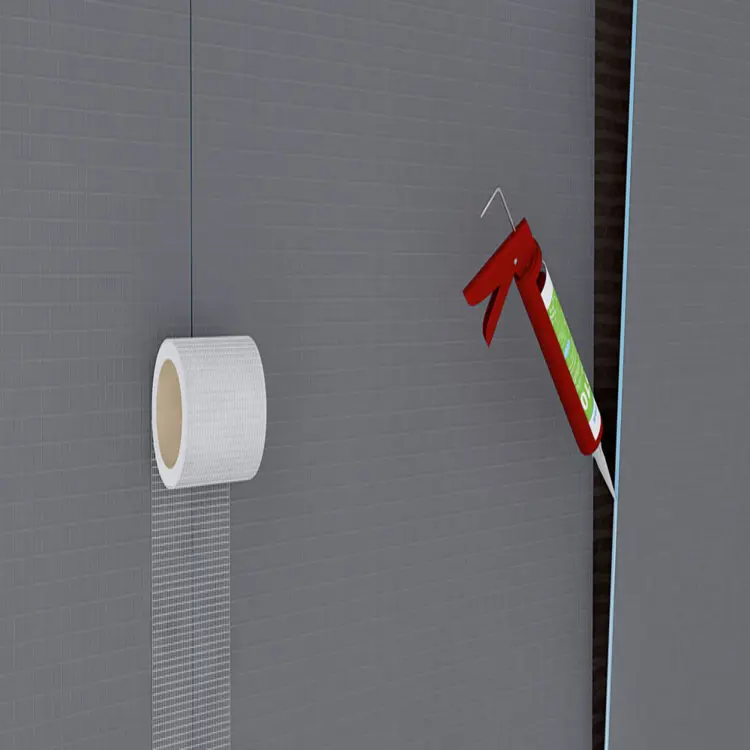

As an abP-approved system, the combination of wedi 610 and wedi building boards reduces installation time by up to 50% because no further sealing is required, even in areas of high humidity.
What must be observed when preparing the substrate?
This content is provided by YouTube. By loading this content, you consent to the transfer of your data to YouTube / Google. You can find more information about this here:
Google Privacy.
Technical Details
| Basis | Silan terminated polymers, neutrally linking |
| Colour | light grey |
| Hardening system | through air humidity |
| Stability under load | stable, < 2 mm (DIN 52454-ST-U 26-23) |
| Spray quantity | > 100 g/min (DIN 52456 – 6 mm) |
| Specific weight | approx. 1,5 g/cm2 (DIN 52451-PY) |
| Skin forming time (+23°C / 50%) | approx. 15 min. |
| Through hardening (+23°C / 50%) | approx. 3 mm / 24 hours |
| Volume change | < -3% (DIN 52451-PY) |
| Tensile strength (2 mm film) | approx. 2,5 N/mm2 |
| Elongation at break (2 mm film) | approx. 400% |
| Shore A hardness | approx. 55 (DIN 53505, 4 weeks +23°C / 50 %) |
| Max. absorption of movement | 10 % |
| Temperature resistance | approx. -40°C to +100°C |
| Processing temperature | +5°C to +40°C (component temperature) |
| Consumption | |
| 8 to 10 linear metres per cartridge | |
| Packing | |
| 310 ml cartridge / 20 units per box 600 ml tubular bag / 20 units per box | |
| Storage | |
| Store in a cool, dry place between +5 °C and +25 °C. | |
| See packaging label for shelf life (approx. 18 months unopened in the original container). | |
| Technical properties |
|---|
Fundo Integro- Fundo Plano
Fundo Primo
Fundo Ligno Plus
Fundo Borgo
Fundo Trollo
Fundo Nautilo
for wedi Solso
Fundo Plano Linea
Fundo Riolito Neo
Fundo Riolito
Fundo RioLigno
Fundo Riofino
Fundo Discreto
Profiles for Fundo Riolito and RioLigno
Profiles for Fundo Riolito Neo, Plano Linea for Fundo Riolito Neo, Plano Linea and Flex
Building board
Building board XL and XXL
Vapor building board
Construct building board
Preline building board
Sanwell shower wall module
Sanwell wall elements
Sanwell niches
Mensolo L and U angle unit
wedi Bathboard bath and shower tray cladding

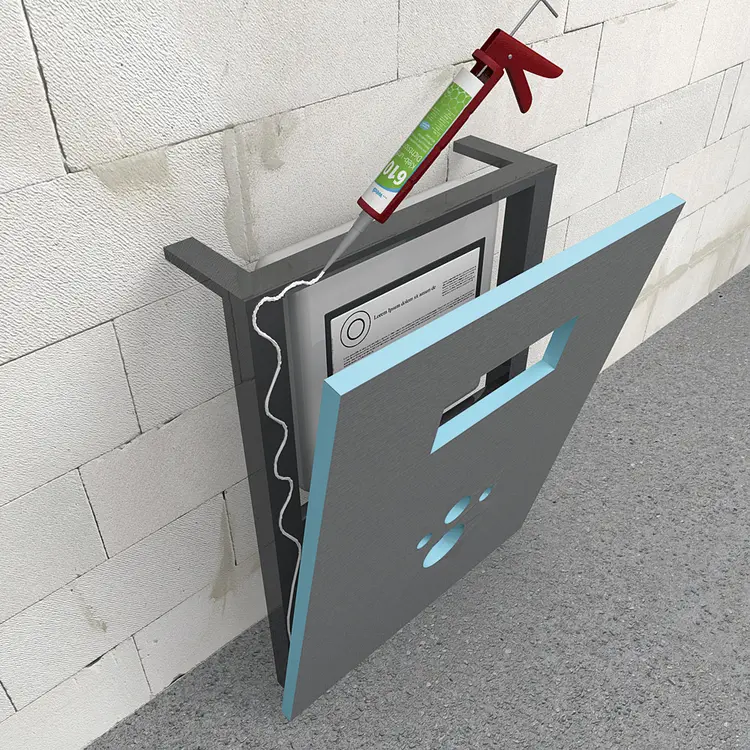

wedi I-Board and wedi I-Board Plus WC dry wall installation cladding
Sanbath Wave bathtub
Sanoasa floating bench
Sanoasa bench 1-4
Sanoasa corner seat element
wedi Sanoasa Comoda
wedi Sanoasa Bellina
Sanoasa lounger 4
Fundo Top for Fundo Integro
Fundo Top for Fundo Primo and Fundo Ligno Plus
Fundo Top for Fundo Plano
Fundo Top for Fundo Riolito
wedi Fundo Top for wedi Fundo Riolito Neo
wedi Top Wall
Sanoasa Top bench
wedi I-Board Top
wedi Sanwell Top niche
Downloads
Usage
- mono-component adhesive sealant

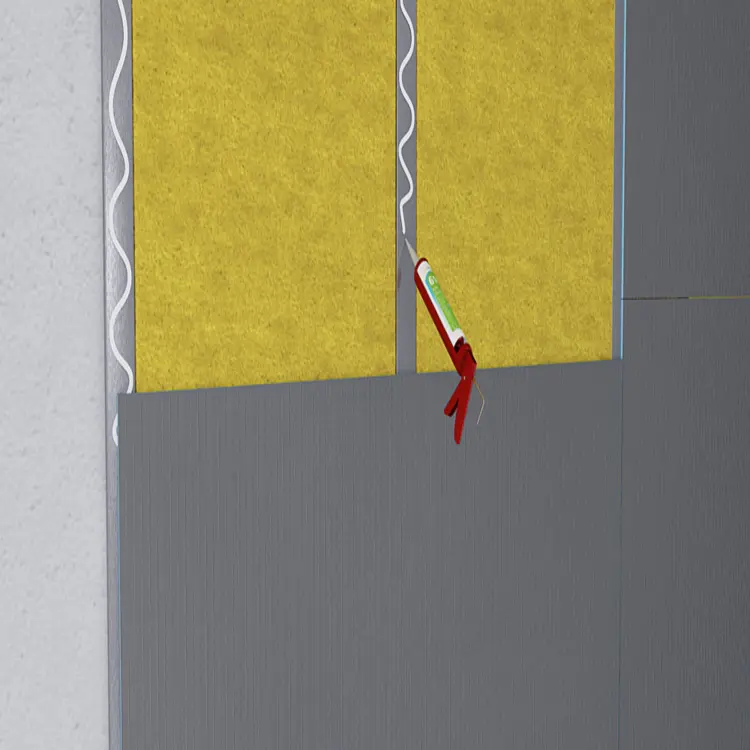

- for bonding and sealing of wedi building boards also with wood, glass, metals, PVC, bricks and tiles
- strongly adhesive
- quickly water-resistant
- resistant against the effects of weather and chemicals
- free of solvents, silicon and PCP
- limited shrinkage
- can be painted over
(DIN 522452, part 4)
