wedi Fundo Discreto
Modern, attractive wall drainage as a complete system

Fundo Discreto

„Attractive wall drain with all the benefits
of a classic wall drainage system.“

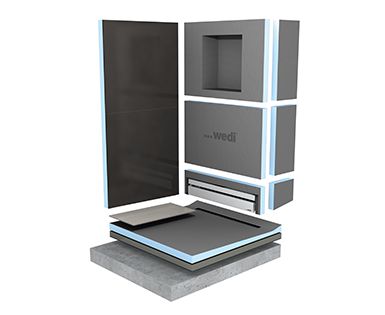

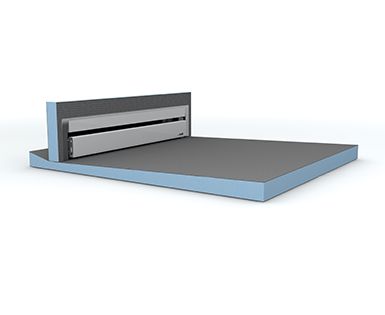

wedi Fundo Discreto – an enduring design and a whole range of new creative possibilities. The completely new Fundo Discreto is the crown on the tried and tested Riolito system. As a simple attachment element, this clever innovation creates an attractive wall drain and can be expanded in all directions.

Whether it be as a seating area, storage space or a full wall panel, with the Discreto system components design possibilities are endless. Perfection in design.

Certainty thanks to a uniform predefined slope
Entire system is 100% waterproof
Simple and safe to work with - tested by those in the trade

Technical data

Technical properties Fundo Discreto

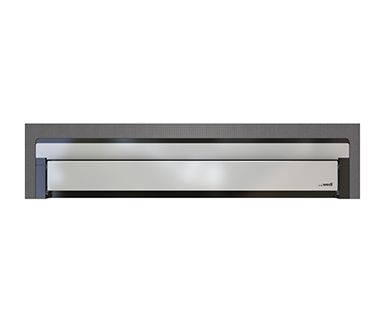

Cover made of V₂A stainless steel, both sides can be used (1st side: brushed surface, 2nd side: can be tiled). It can be set to a tile thickness of 5 to 20 mm (wall and floor). Adjustment is made with a stencil (included in scope of delivery). The whole element width corresponds to the Riolito width.
wedi Fundo Riolito Standard Channel Cover - Stainless Steel 304; Polished
wedi Fundo Riolito Exclusiv Channel Cover - Stainless Steel 316; Brushed
wedi Fundo Riolito Tileable Channel Cover - Stainless Steel 304; matte

Fundo Discreto Shower Base Material	XPS/ Extruded Polystyrene Foam Core covered with fiberglass mesh fully embedded in a cement based resin coating
Surface Burning Characteristics; ASTM E84-04 and UL 1715	Passed
Tensile Strength (Thinset Mortar to wedi Coating to Foam); ASTM C297	0.45 N/mm²
Shear Strength (Thinset Mortar to wedi Coating to Foam); within ANSI 118.10-1999; wet conditions	0.37 N/mm²
Flexural Strength; ASTM C947	4.32 N/mm²
Waterproofness of Assembled System; IAPMO PS 106-2015	Passes
Drain Assembly Kit, WaterMark	Passes
Temperature Exposure Limits	-50 C to + 80 C
Long-term compressive strength (50 years) ≤ 2% compression EN 1606	0.08 N/mm²
Compressive resistance or compressive strength at 10% compression EN 826	0.25 N/mm²
Fungus & Bacteria Resistance	No Growth , Passes
Robinson Floor Test; ASTM C627 *with 200 x 200 x 6 mm Porcelain Tile	Heavy Duty Commercial Use, Passes
R-Value, ASTM C518	25mm of wedi foam = 4.3

Product sizes

Order no.	Designation	Length x width x thickness
073738200	Fundo Discreto System Component Integrates into Fundo Seats, tileable cover included	800 × 50 mm
