Fundo Ligno

Fundo Ligno

„The Specialist for Suspended Timber Floors.“

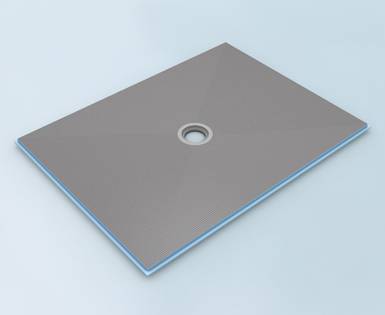

The floor-level shower bases designed for use with timber floors, and with outer edges of only 20 mm. Unlike traditional shower elements, the Fundo Ligno has been adapted to be integrated into a wooden floor covering – without building up further height and without time-consuming levelling measures it fits into its environment perfectly.
The tileable floor units are not only highly practical and reliable, they have opened up a whole new world of design possibilities for wet rooms and bathrooms.

  • Certainty thanks to a uniform predefined slope
  • Entire system is 100% waterproof
  • Simple and safe to work with - tested by those in the trade

Technical properties Fundo Ligno

wedi Fundo floor elements can be cut to size on site, the geometry of the elements should be maintained however. wedi fundo elements can only be combined with the wedi Fundo drains.

Fundo Ligno Shower Base Material XPS/ Extruded Polystyrene Foam Core covered with fiberglass mesh fully embedded in a cement based resin coating
Surface Burning Characteristics; ASTM E84-04 and UL 1715 Passed
Tensile Strength ( Thinset Mortar to wedi Coating to Foam); ASTM C297 0.45 N/mm²
Shear Strength (Thinset Mortar to wedi Coating to Foam); within ANSI 118.10-1999; wet conditions 0.37 N/mm²
Flexural Strength; ASTM C947 4.32 N/mm²
Waterproofness of Assembled System; IAPMO PS 106-2015 Passes
Drain Assembly Kit, WaterMark Passes
Temperature Exposure Limits -50 C to + 80 C
Long-term compressive strength (50 years) ≤ 2% compression EN 1606 0.08 N/mm²
Compressive resistance or compressive strength at 10% compression EN 826 0.25 N/mm²
Fungus & Bacteria Resistance No Growth , Passes
Robinson Floor Test; ASTM C627 *with 200 x 200 x 6 mm Porcelain Tile Heavy Duty Commercial Use, Passes
R-Value, ASTM C518 25mm of wedi foam = 4.3

Product sizes

Order no. Designation Length x width x thickness
073732060 Fundo Ligno, square shower base, Center drain 1020 × 1020 × 20 mm
073732061 Fundo Ligno, rectangular shower base, Center drain 1220 × 1020 × 20 mm
073732062 Fundo Ligno, square shower base, Center drain 1220 × 1220 × 20 mm
073732016 Fundo Ligno, rectangular shower base, Center drain 914 × 1524 × 20 mm
073732017 Fundo Ligno, rectangular shower base, Center drain 1219 × 1524 × 20 mm
073732018 Fundo Ligno, square shower base, Center drain 1524 × 1524 × 20 mm

Areas of use Fundo Ligno

  • New Construction of Residential/Commercial use buildings
  • Renovation in Residential/Commercial use buildings
  • For barrier free, ADA compliant or curbed installations
  • For customized or standard tiled showers
  • Over wooden or concrete substructures
