Fundo Riolito neo Shower Kit

Fundo Riolito neo Shower Kit

„The wedi wet room system in a box.“

wedi thinks and creates systems for added value in the wet room. The wedi Fundo Riolito neo Shower Kit is a one-box only complete kit for the creation of a corner shower that is level with the floor.

It contains all materials that are required for a watertight corner shower with linear drain: a reliable floor construction consisting of a Fundo Riolito neo floor element, drain system, wedi building board wall solution as well as sealing and installation accessories.

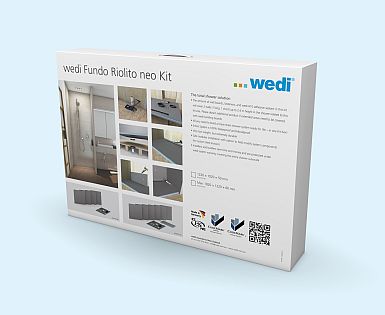

  • Safe transport in a box
  • Perfectly matched
  • Complete peace of mind for installers and end users

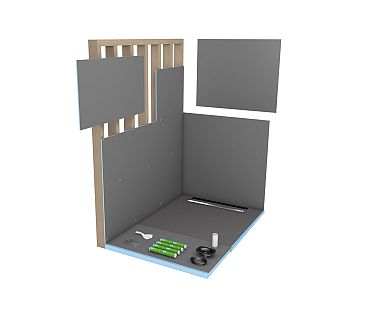

Content of wedi Fundo Riolito neo Shower Kit:
- 1 wedi Fundo Pan
- wedi building board to cover up to (3) 2000 mm walls
- 1 drain assembly
- 1 full foam curb
- wedi Joint sealant
- fasteners

Please order the drain cover seperately.

Technical properties - Fundo Riolito neo Shower Kit


Fundo Riolito neo Shower Base Material XPS/ Extruded Polystyrene Foam Core covered with fiberglass mesh fully embedded in a cement based resin coating
Surface Burning Characteristics; ASTM E84-04 and UL 1715 Passed
Tensile Strength ( Thinset Mortar to wedi Coating to Foam); ASTM C297 0.45 N/mm²
Shear Strength (Thinset Mortar to wedi Coating to Foam); within ANSI 118.10-1999; wet conditions 0.37 N/mm²
Flexural Strength; ASTM C947 4.32 N/mm²
Waterproofness of Assembled System; IAPMO PS 106-2015 Passes
Drain Assembly Kit, WaterMark Passes
Temperature Exposure Limits -50 C to + 80 C
Long-term compressive strength (50 years) ≤ 2% compression EN 1606 0.08 N/mm²
Compressive resistance or compressive strength at 10% compression EN 826 0.25 N/mm²
Fungus & Bacteria Resistance No Growth, Passes
Robinson Floor Test; ASTM C627 *with 200 x 200 x 6mm Porcelain Tile Heavy Duty Commercial Use, Passes
R-Value, ASTM C518 25mm of wedi foam = 4.3

Product sizes

Order no. Designation Length x width x thickness
073737120 Fundo Riolito neo Shower Kit 1220 × 1020 mm
073737121 Fundo Riolito neo Shower Kit 1220 – 1820 × 1020 mm

Areas of use Fundo Riolito neo Shower-Kit

  • New Construction of Residential/Commercial use buildings
  • Renovation in Residential/Commercial use buildings
  • For barrier free or curbed installations
  • For customized or standard tiled showers
  • Over wooden or concrete substructures
