Fundo Riolito Neo
Small changes, great performance:
The new wedi Fundo Riolito Neo. Even more flexibility.
Extension of the Fundo Riolito product range.

Fundo Riolito Neo

"The new wedi Fundo Riolito Neo - Small changes, great performance."

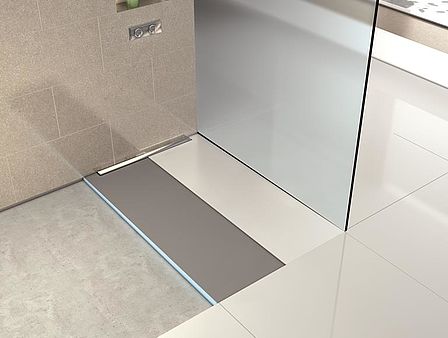

wedi’s pre-sloped shower bases Riolito Neo feature fully factory sealed and integrated linear drainage systems. The base itself is naturally waterproof as well as mold proof, due to its closed cell XPS foam core. The Riolito Neo bases come with the wedi typical strong and ready for tiling surface coating. All Riolito Neo shower bases can be field modified. They can be cut to size or extended using wedi's pre-sloped Fundo extensions.

The integrated drain in Riolito Neo ensures your installation is not exposed to the risk commonly associated with bonding flange design/surface waterproofing installation-type, single drain products. The unique wedi Fundo Riolito Neo bases allow water to drain away through a narrow gap between their drains cover plate and the tile surface finish. wedi Fundo Riolito Neo is always equipped with the drain unit but covers are ordered separately. Options for covers include a polished stainless steel version, a double plated brushed stainless steel version, and a tileable version.

Available in 4-way or single slope designs with close to the wall drains, wedi Riolito Neo features the industries only factory sealed drain for use in custom shower configurations. What is more, the Fundo Riolito Neo is available in one piece shower base boards or as a modular system offering a separate drain module and an extension module to combine and configure custom layouts even easier.

Technical data

Technical properties Fundo Riolito Neo

Fundo Riolito neo Shower Base Material	XPS/ Extruded Polystyrene Foam Core covered with fiberglass mesh fully embedded in a cement based resin coating
Surface Burning Characteristics; ASTM E84-04 and UL 1715	Passed
Tensile Strength ( Thinset Mortar to wedi Coating to Foam); ASTM C297	0.45 N/mm²
Shear Strength (Thinset Mortar to wedi Coating to Foam); within ANSI 118.10-1999; wet conditions	0.37 N/mm²
Flexural Strength; ASTM C947	4.32 N/mm²
Waterproofness of Assembled System; IAPMO PS 106-2015	Passes
Drain Assembly Kit, WaterMark	Passes
Temperature Exposure Limits	-50 C to + 80 C
Long-term compressive strength (50 years) ≤ 2% compression EN 1606	0.08 N/mm²
Compressive resistance or compressive strength at 10% compression EN 826	0.25 N/mm²
Fungus & Bacteria Resistance	No Growth , Passes
Robinson Floor Test; ASTM C627 *with 200 x 200 x 6 mm Porcelain Tile	Heavy Duty Commercial Use, Passes
R-Value, ASTM C518	25mm of wedi foam = 4.3

Product sizes

Order no.	Designation	External dimensions: W x L x H, Channel
075100012	Fundo Riolito Neo, floor base, with channel drain, four sided fall	1219 × 1524 × 65 mm 700 mm
075100016	Fundo Riolito Neo, floor base, with channel drain, four sided fall	1524 × 914 × 50 mm 700 mm
075100014	Fundo Riolito Neo, floor base, with channel drain, four sided fall	1828 × 1219 × 60 mm 1100 mm
075100100	Fundo Riolito Neo, floor base, with channel drain, single-fall	1220 × 1020 × 50 mm 800 mm

Area of application

Areas of use Fundo Riolito Neo

New Construction of Residential/Commercial use buildings
Renovation in Residential/Commercial use buildings
For barrier free or curbed installations
For customized or standard tiled showers
Over wooden or concrete substructures

Accessories

Mandatory articles

Vertical drain kit Fundo Riolito Neo Vertical drain kit Fundo Riolito Neo wedi vertical drains, specifically for Fundo floor elements Fundo Riolito Neo

Optional articles

Building board Building board Perfect substrate for practically any wall or floor application.

Building board XXL Building board XXL Large building boards, ideal for partition walls.

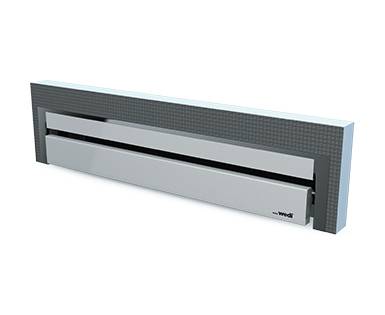

Fundo Discreto Fundo Discreto Wall drain module for integration in seats or false walls.

Linear drain Linear drain wedi offers the corresponding systemised cover technology for the floor-level shower elements

Hob Hob For shower entry design where safe and sound transitions are required

wedi 610 wedi 610 Unique adhesive sealant for wedi building board butt joints.
