Product information

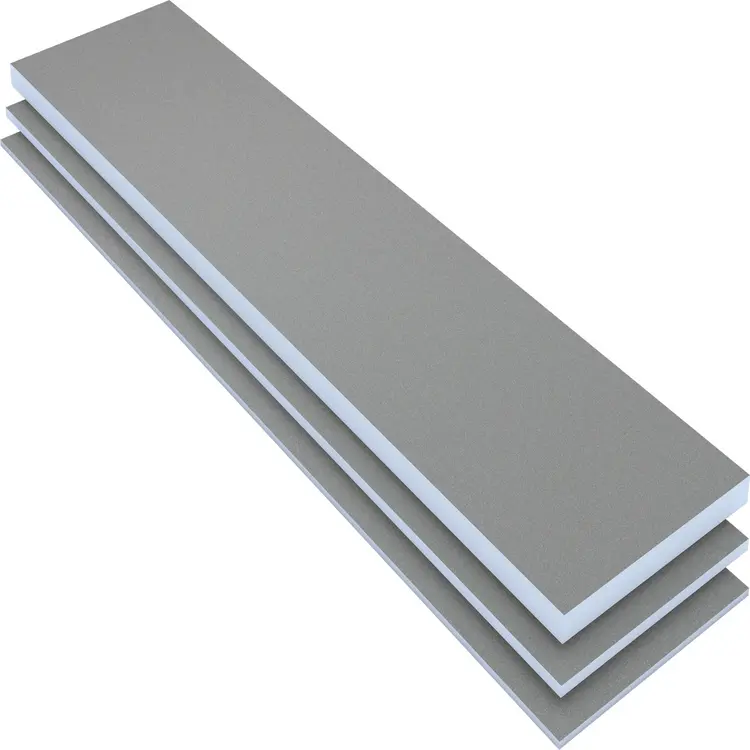

wedi building board Vapor is a composite element made from extruded polystyrene rigid foam which is reinforced on both sides with a special cement coating, with a vapour barrier on one side.
- For rooms where there is a permanently raised level of humidity
- For walls, ceilings and floors
- Vapour barrier and thermal insulation
Energy efficient
Excellent thermal insulation properties even at low strength
Hygienic
Protection against mold and fungal growth
Field-tested
The original pioneers, successfully leading the way for 40 years
Reliable
100% Waterproof from 2mm thick XPS core
Simple
Easy cutting, easy installation
Technical Details
| Technical data of building board Vapor | |
|---|---|
| Dimensions | 600 x 2500 mm |
| Thickness | 14 mm, 21,5 mm, 51,5 mm |
| Vapour barrier (sanded epoxy-resin vapour barrier) | 1,5 mm |
| Diffusion equivalent air layer thickness, sd value (epoxy resin vapour barrier) | 283 m |
| Resistance to water vapour diffusion(µ) | EN 12086 188571 |
| Fire behaviour EN 13501 | E |
| Technical properties – Rigid foam | |
| Long-term compressive strength (50 years) ≤ 2% compression EN 1606 | 0,08 N/mm2 |
| Compressive resistance or compressive strength at 10% compression EN 826 | 0,25 N/mm2 |
| Associated modulus of elasticity EN 826 | 10 – 18 N/mm2 |
| Thermal conductivity EN 13164 | 0,036 W/mK |
| Tensile strength EN 1607 | 0,45 N/mm2 |
| Shearing resistance EN 12090 | 0,2 N/mm2 |
| Shear modulus EN 12090 | 7 N/mm2 |
| Bulk density EN 1602 | 32 kg/m3 |
| Resistance to water vapour diffusion(μ) EN 12086 | 100 |
| Water absorption under long-term immersion EN 12087 | ≤ 1,5 Vol.-% |
| Capillar action | 0 |
| Linear coefficient of thermal expansion | 0,07 mm/mK |
| Temperature limits | -50°C / +75°C |
| Fire behaviour EN 13501 | E |
| Propellant gas, carbon dioxide, GWP value | 1 |
Usage
- The wedi building board Vapor may be used as heat insulation, while at same time, because of the coating applied in the factory; as a vapour barrier in rooms with permanently high humidity.

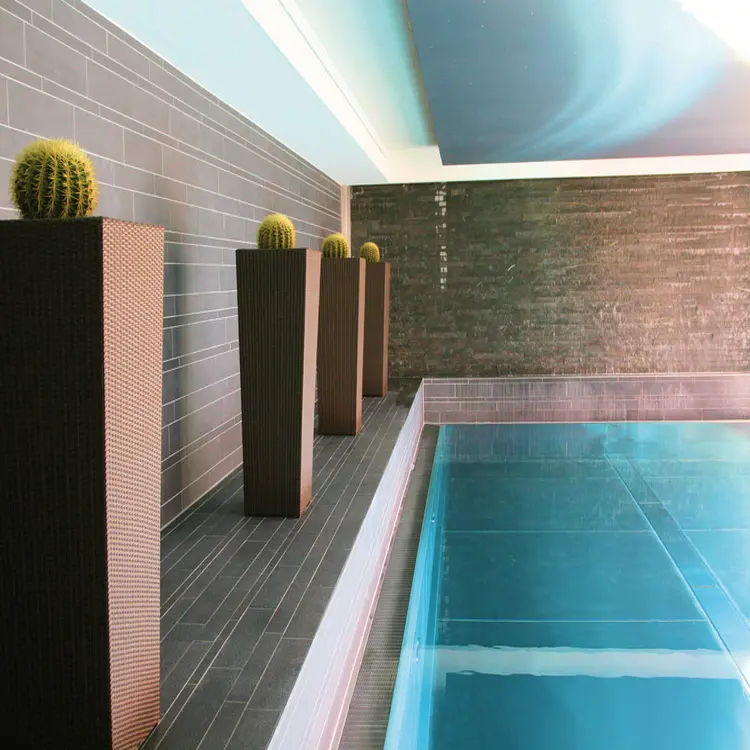

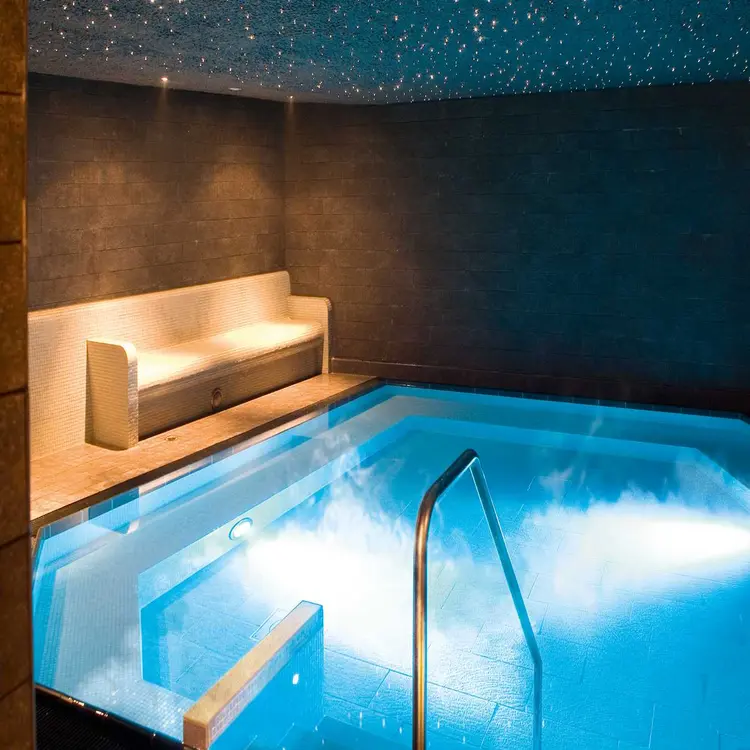

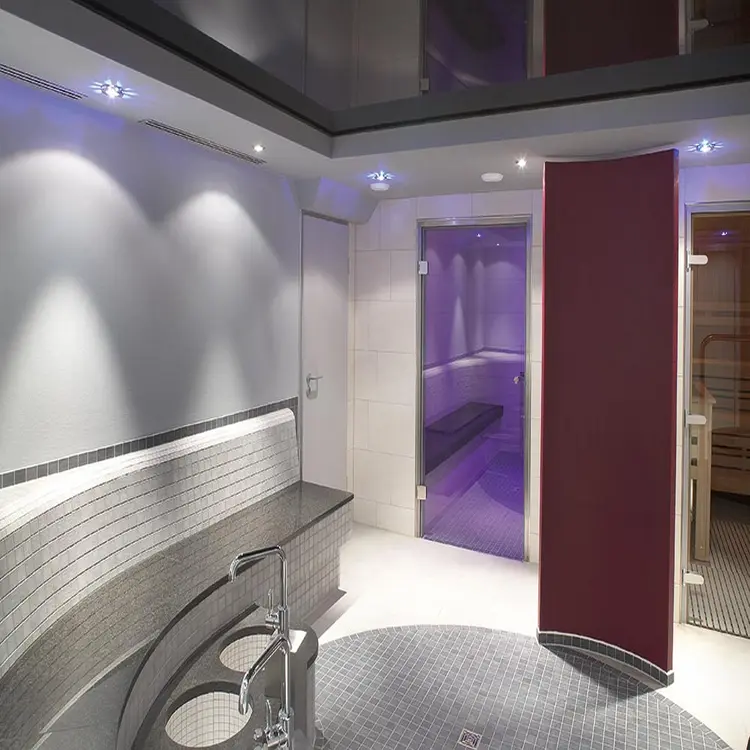

- Particularlwhen used for wall areas it is one of the best carrier elements on the market - especially when used for public shower and spa facilities. It is also suitable for tile and plaster carrier element.
