Product information

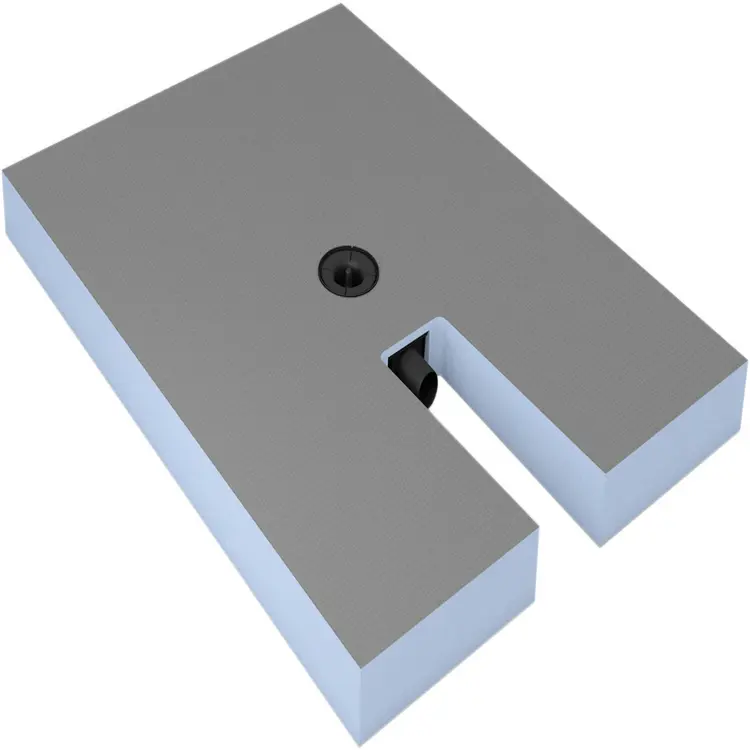

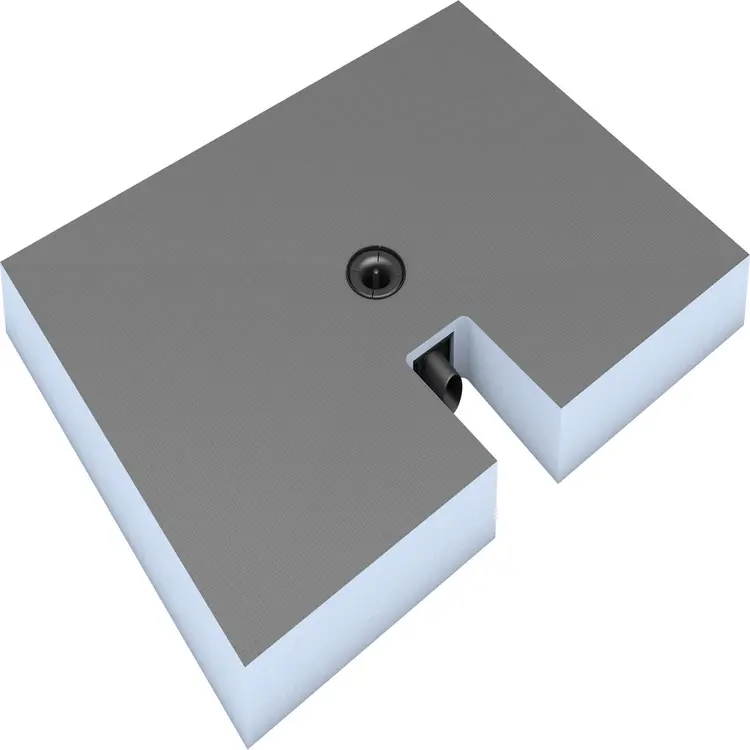

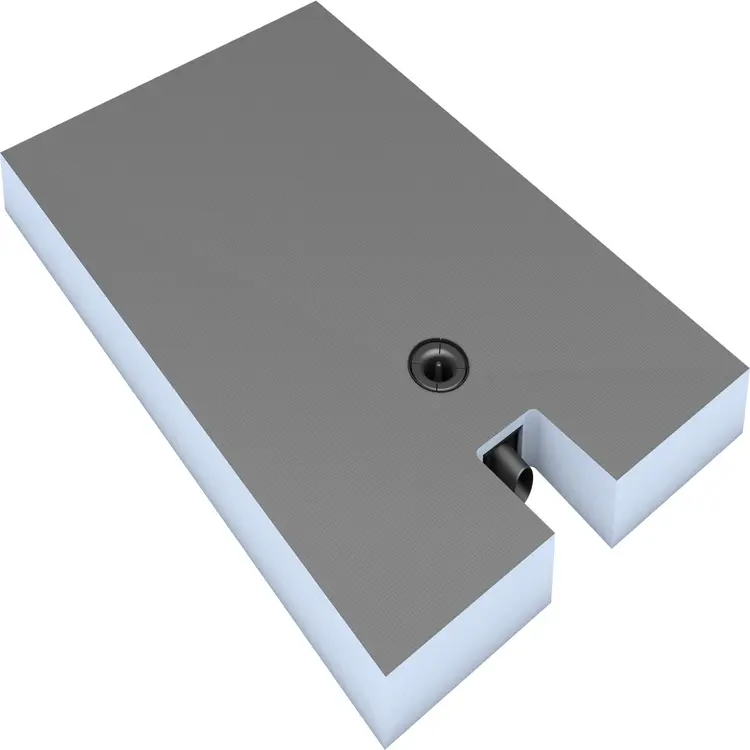

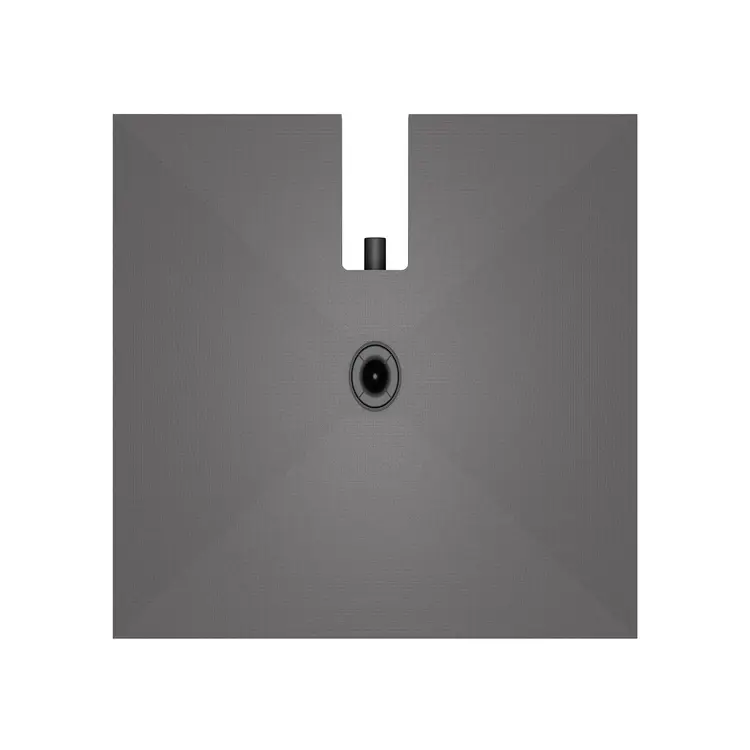

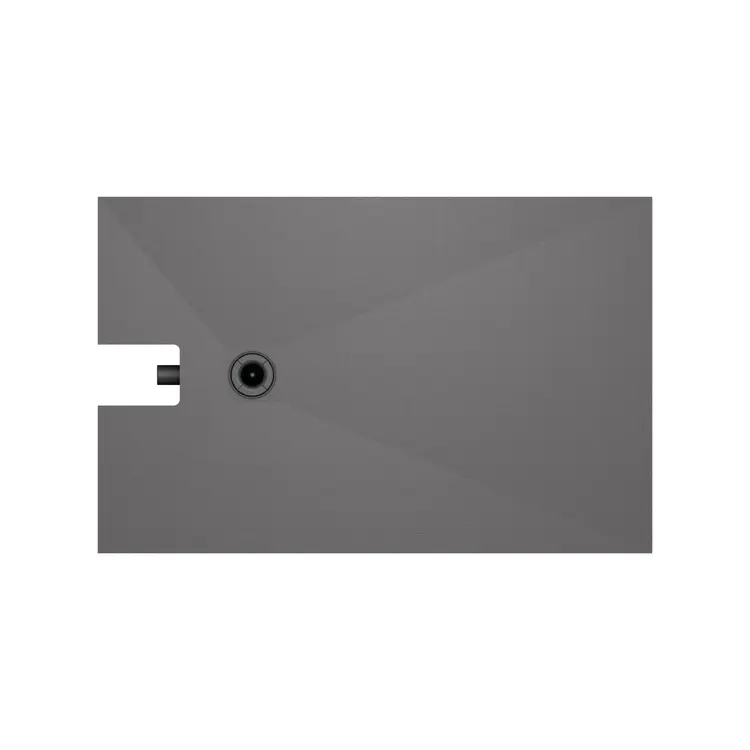

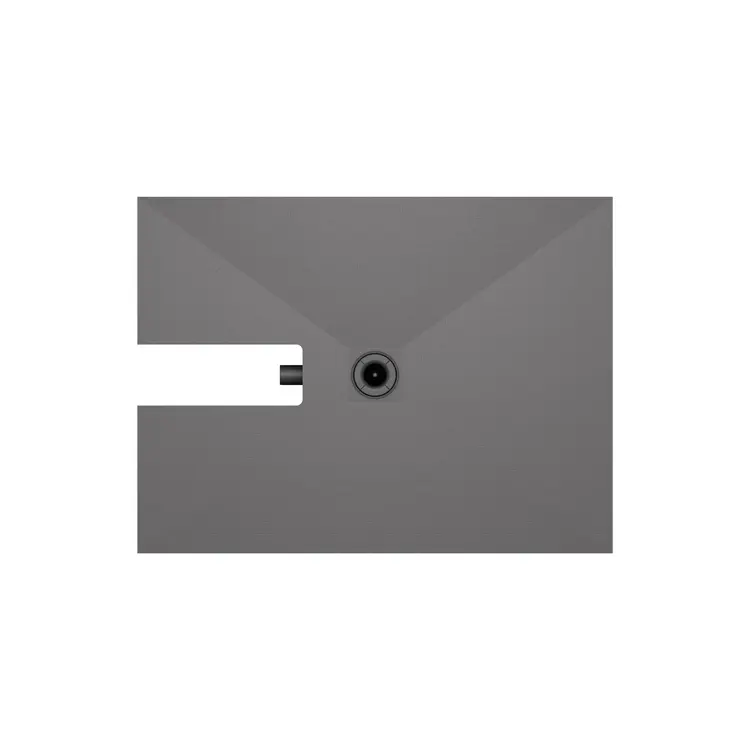

The Fundo Integro is the slimmest flush-to-floor shower element with integrated drain technology from wedi. Like all the other Fundo floor elements it is already sealed ready for installation:
- drain capacity of 0.8 litres per second
- 50 mm water trap height
- at least 1.5 % even preformed gradient
- 100 % waterproof material
The shower element not only fulfils all relevant standards but offers an overall installation height of just 90 mm.
The Fundo Integro sets entirely new standards as a complete system – simply the perfect solution for all renovation projects, as well as a reliable and time-saving alternative for every installation.
Fundo Integro - Standard-compliant complete system (EN 1253):
- Perfect for renovations: Besides 100 % compliance with standards, the Fundo Integro offers an overall installation height of just 90 mm.
- Assured reliability: The drain technology – which is already integrated into the waterproof blue XPS core of the shower element in the factory – ensures maximum system reliability.
- Guaranteed versatility: Alongside the stainless steel cover included in the scope of delivery, other wedi Fundo Fino designer grates can also be used – allowing further design possibilities.
- Suitable for all tile sizes: Thanks to the flat frame, the wedi Fundo Integro can also be tiled with particularly thin ceramic or glass mosaic.
Reliable
Standard-compliant
Accessible
Smart
Complete
Install the Fundo Integro
Technical Details
The drain has been tested by TÜV Rheinland and fulfils all of the requirements of DIN EN 1253.
wedi Fundo Integro complete systems can be shortened on site, but the geometry of the elements must be maintained.
| Technical properties Fundo Integro | |
|---|---|
| Wheelchair load-bearing from minimum tile size | 50 x 50 mm |
| Glass mosaic (thickness: 3 mm) from minimum size | 20 x 20 mm |
| Minimum installation height | 90 mm |
| Technical properties of drain | |

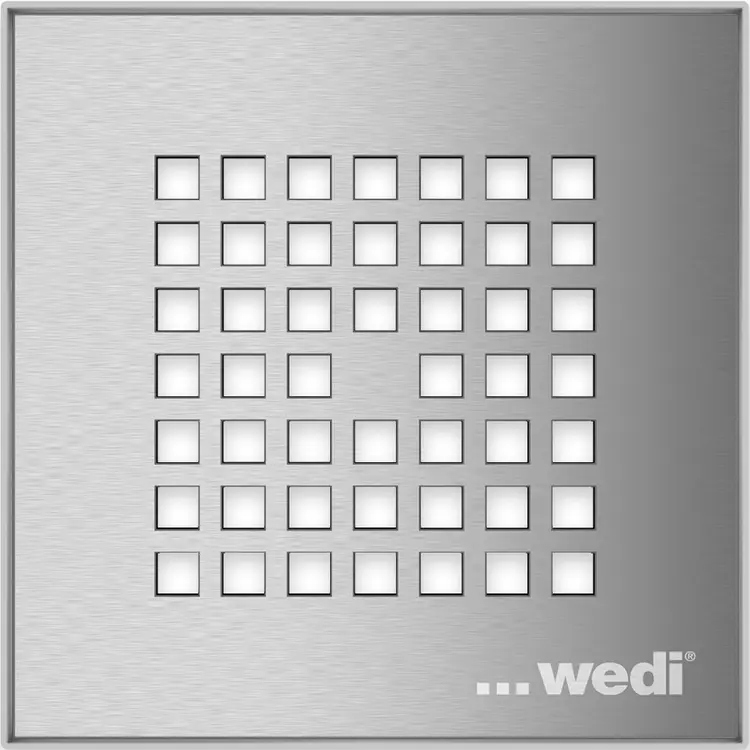

| Frame for the stainless steel grid (included in the scope of delivery) | 120 x 120 x 4 mm |
| Stainless steel grid V2 A | 115 x 115 x 2,5 mm |
| Levelling frame | ø 115 x 40 mm |
| Drain performance DIN EN 1253-1 | 48 l/min; 0,8 l/s |
| Connection pipe (ABS) | DN 50 |
| Drain capacity in accordance with DIN EN 1253-1 | 50 mm |
| Slope connection piece | 1,5 % |
| Technical properties of raw foam building board systems | |
| Extruded polystyrene rigid foam core | XPS |
| Long-term compressive strength (50 years) ≤ 2% compression EN 1606 | 0,08 N/mm2 |
| Compressive resistance at 10% compression EN 826 | 0,25 N/mm2 |
| Thermal conductivity EN 13164 | 0,036 W/mK |
| Bulk density EN 1602 | 32 kg/m3 |
| Temperature limits | -50°C / +75°C |
| Fire behaviour EN 13501-1 | E |
| Waterproof tested to | 1,5 bar |
Downloads
Usage
- In publicly accessible buildings in accordance with DIN 18040 Part 1 and DIN EN 1253
- In accessible dwellings complying with DIN 18040 part 2 (Please see the Technical properties section for specifying the minimum tile size E.g.: for wheelchair access)
- As structural sealing in combination with tile or slab coverings
for load classes A0 and A.
