Product information

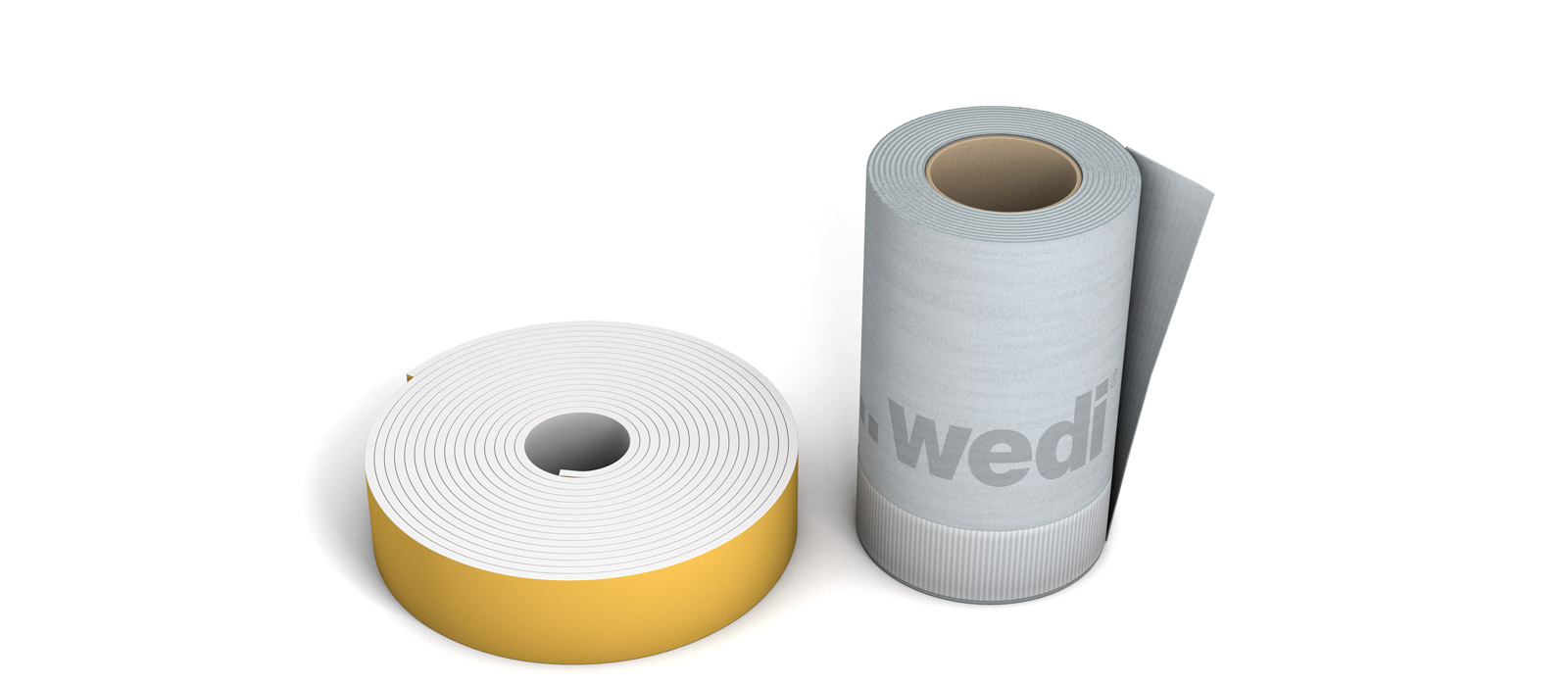

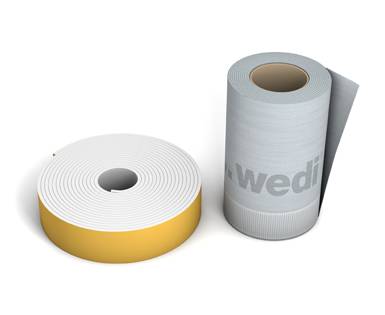

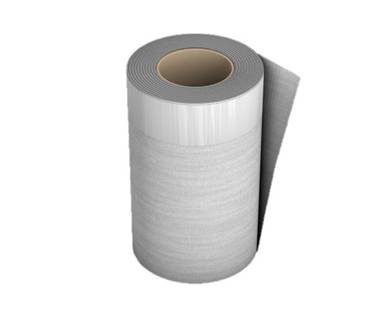

The wedi Tools tub sealing tape consists of a TPE-coated polypropylene fleece equipped with a butyl strip. It is used for reliable sealing of bathtubs and shower trays made from steel enamel, acrylic or similar.

What must be observed when preparing the substrate?

This content is provided by YouTube. By loading this content, you consent to the transfer of your data to YouTube / Google. You can find more information about this here: Google Privacy.

Technical Details

Stable, rigid lengthwise and elastic crosswise joint sealing membrane

Technical properties wedi Tools tub sealing tape
TypeTPE coated polypropylene fleece with butyl strip
Colourgrey
Total width120 mm
Coating widthButyl strip 15 mm width
Total thickness1,32 mm
Weight60 g/m
Maximum longitudinal tensile strengthapprox. 104 N / 15 mm
Maximum lateral tensile strengthapprox. 23 N / 15 mm
Elongation at break, longitudinalca. 70%
Elongation at break, lateralapprox. 335%
Resistance to water pressure (1.5 bar)> 1,5 bar
Resistant to chemicalsacc. to ZDB data sheet
Water impermeabilityacc. to ZDB data sheet
UV resistance> 500 h
Temperature resistance-30°C / +90°C
  • wedi 620 sealant

Downloads

Brochure - Special solutions for suspended timber floors
Brochure - Special solutions for suspended timber floors
Brochure - wedi world of systems
Brochure - wedi world of systems
Assembly instructions Fundo Riolito sloped sealing tape for corner installations (sealing corner)
Assembly instructions Fundo Riolito sloped sealing tape for corner installations (sealing corner)
Assembly instructions Fundo Riolito step-folded sealing tape (sealing corner)
Assembly instructions Fundo Riolito step-folded sealing tape (sealing corner)
Assembly instructions Fundo Riolito Neo / Plano Linea step-folded, sloped lip-end sealing tape (sealing corner)
Assembly instructions Fundo Riolito Neo / Plano Linea step-folded, sloped lip-end sealing tape (sealing corner)
Assembly instructions wedi butyl bathtub sealing tape
Assembly instructions wedi butyl bathtub sealing tape
Assembly instructions wedi butyl bathtub sealing tape + self-adhesive decoupling strip
Assembly instructions wedi butyl bathtub sealing tape + self-adhesive decoupling strip
Technical datasheet - wedi Tools tub sealing tape
Technical datasheet - wedi Tools tub sealing tape

Usage

  • For secure sealing of tubs and shower trays made of steel, enamel, acrylic or similar.
  • When sealing, the wedi Tools tub sealing membrane must be bonded onto the tub or shower tray with the butyl strip, and pressed on evenly. The surface seal is attached to the wall using wedi 610 or wedi 520. In the case of installation with wedi 610, the tub sealing membrane should be pressed evenly into the adhesive bed with a roller. In the case of bonding with wedi 520, the front and rear side of the sealing membrane should be embedded in filler.
  • Store in a cool, dry place and protect from sunlight.
