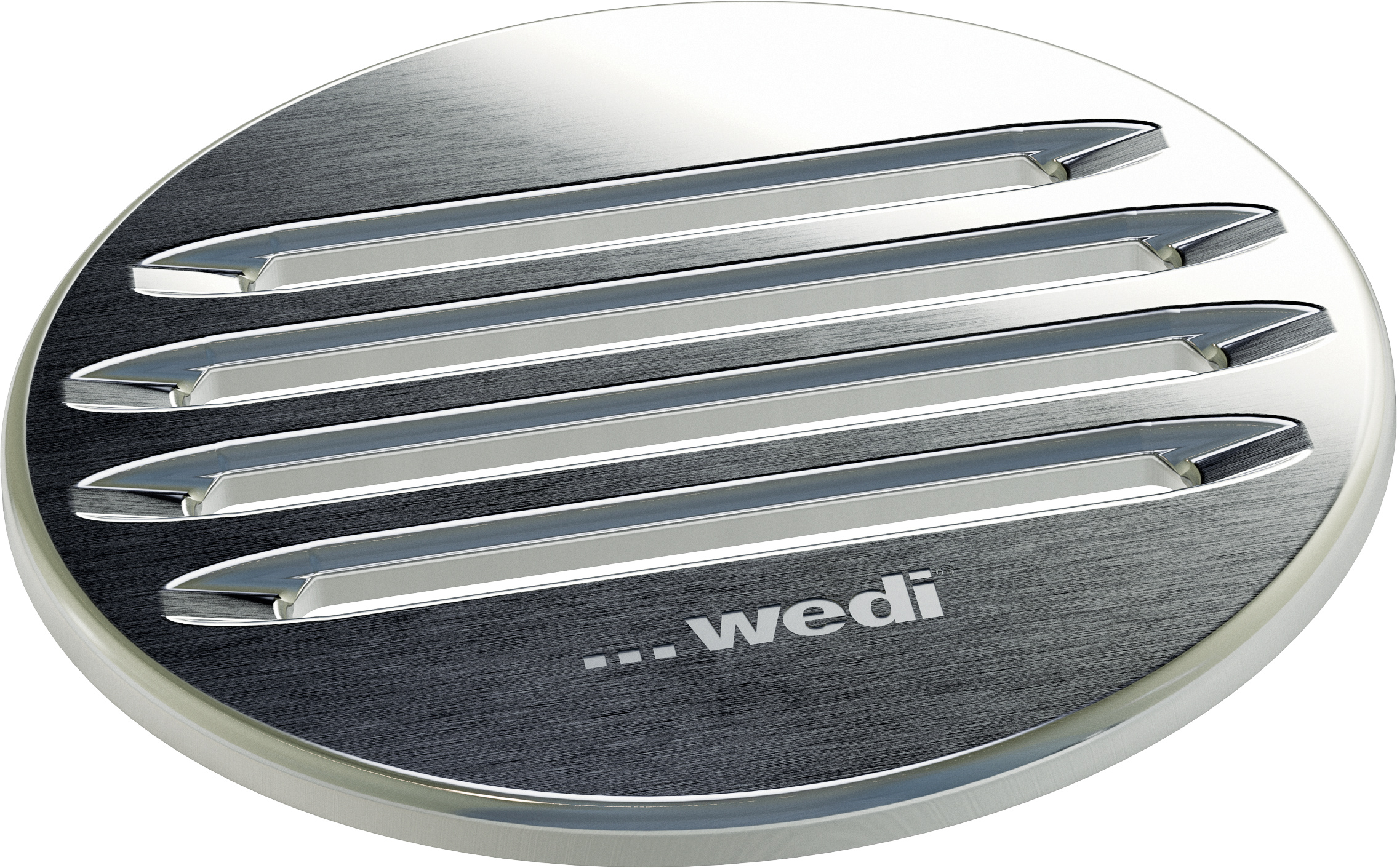

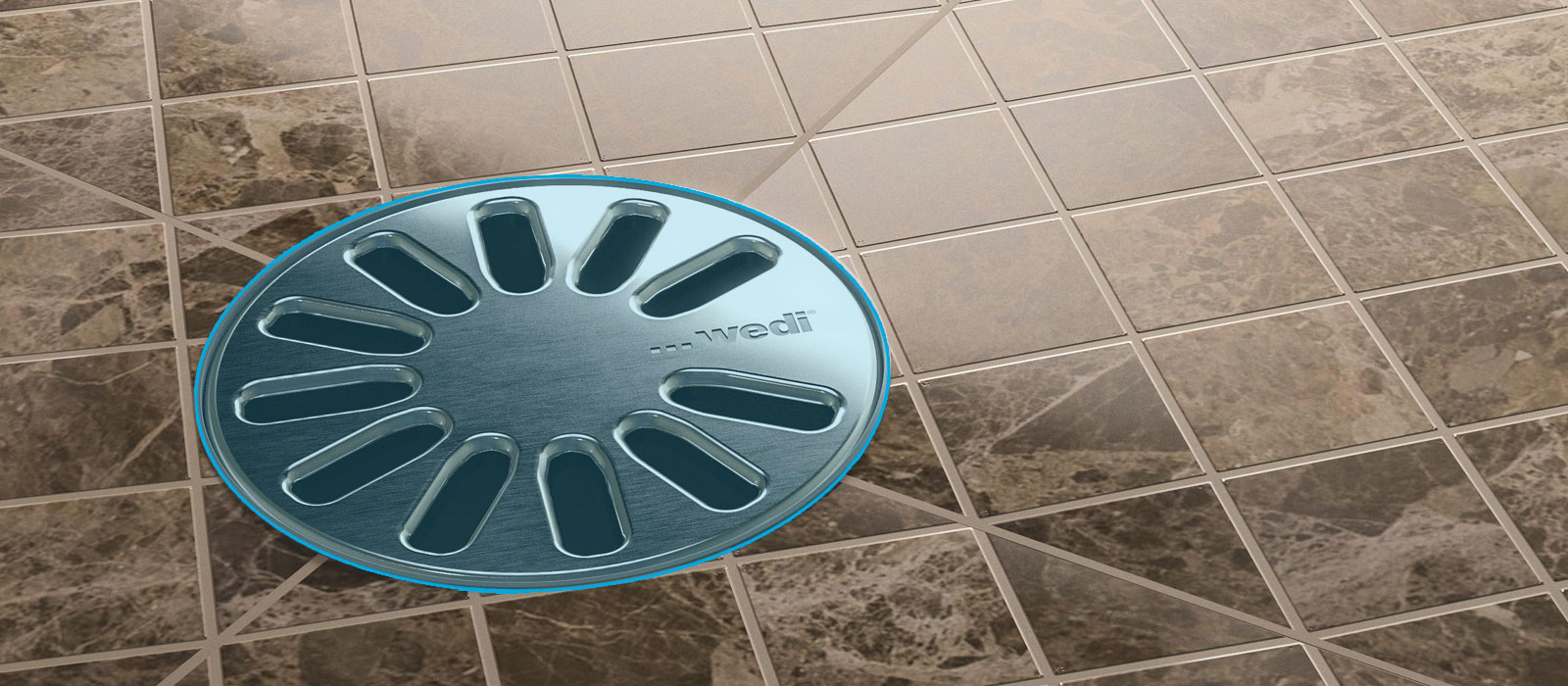

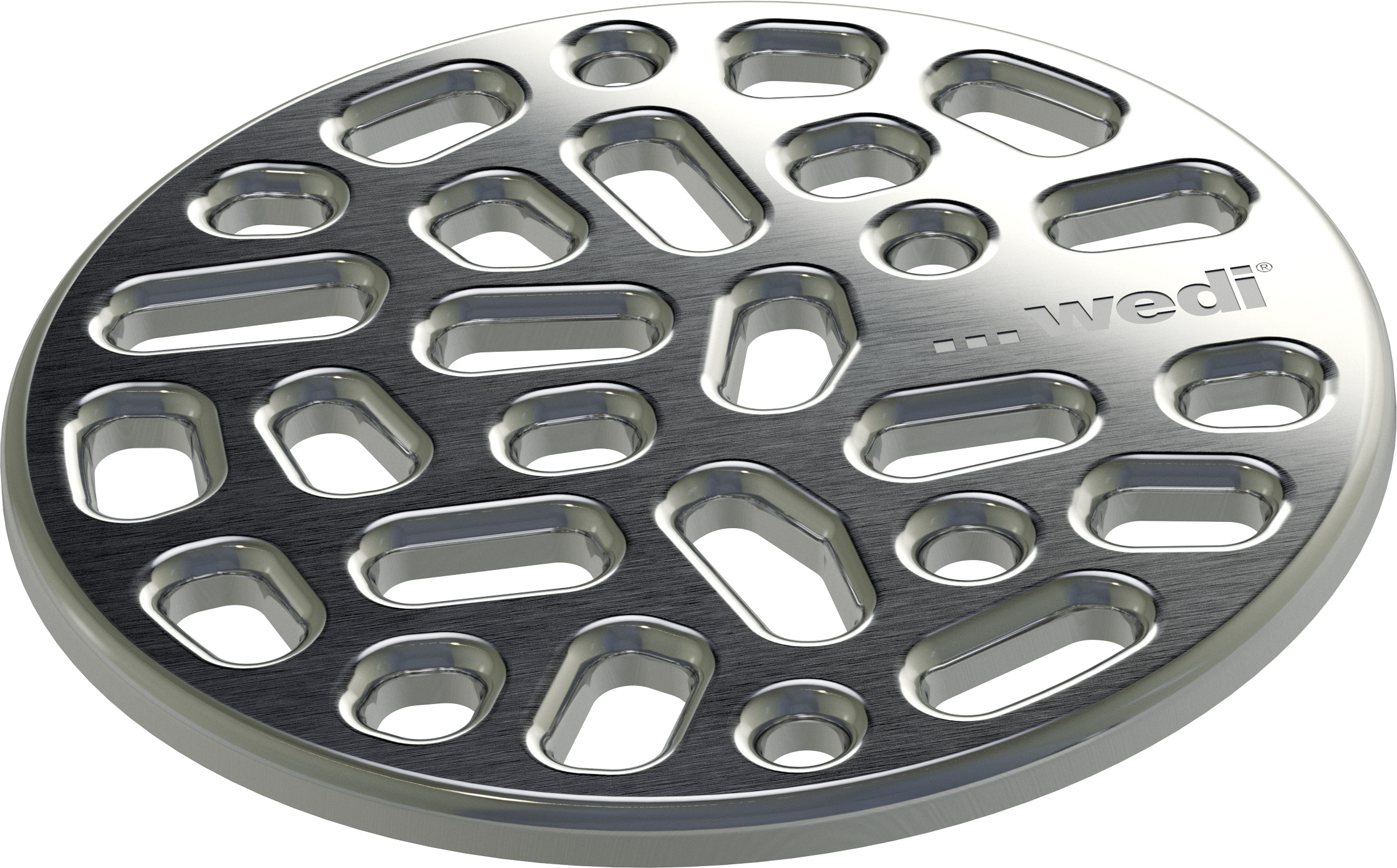

Fundo drain grid round

Fundo drain grid round

„Fundo drain grids.“

Product information

Specifically for Fundo shower elements we have developed a wide variety of drain covers ranging from classic to modern right through to covers made from massive stainless steel.
These drains can be combined with the following Fundo series:

  • Fundo Primo
  • Fundo Borgo
  • Fundo Trollo
  • Fundo Nautilo
  • Fundo Ligno

All advantages at a single glance

Technical properties Fundo drain grids

wedi Fundo Fino drain grates, stainless steel
are available in the following dimension

square, square, screw in, incl. stainless steel frame

115 x 115 mm
Ø 115 mm

Product sizes

Order no. Designation Length x width x thickness
676800034 Fundo drain grid 1.2 Ø 115 mm x 5 mm
676800038 Fundo drain grid 2.2 Ø 115 mm x 5 mm
676800041 Fundo drain grid 3.2 Ø 115 mm x 5 mm
676800044 Fundo drain grid 4.2 Ø 115 mm x 5 mm

In order to display YouTube videos, it is necessary that you accept marketing cookies. Please see our privacy policy for more information. To the cookie settings

Application examples Fundo Fino drain grids

  • In domestic residential construction
  • In publicly accessible buildings and workplaces complying with DIN 18040 part 1
  • In accessible dwellings complying with DIN 18040 part 2 (note specifications for minimum tile size if wheelchair access is planned, see technical properties)
  • As a construction seal combined with tile and natural stone coverings of load class A0, A and B (floors subject to moderate surface flowing water in interior areas; directly loaded floors in rooms in which tap or cleaning water is used very frequently or for long periods, and floors of indoor and outdoor pools that are filled with water with the properties of drinking water).
