Fundo Riolito NeoSmall changes, great performance:
The new wedi Fundo Riolito Neo. Even more flexibility.
Extension of the Fundo Riolito product range.
Fundo Riolito Neo
"The new wedi Fundo Riolito Neo - Small changes, great performance."
Product information

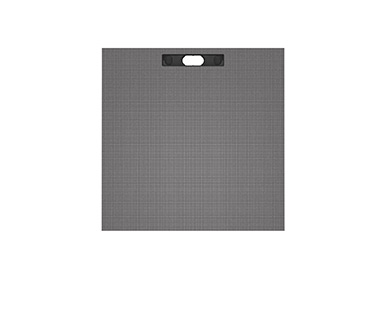

The new wedi Fundo Riolito Neo.

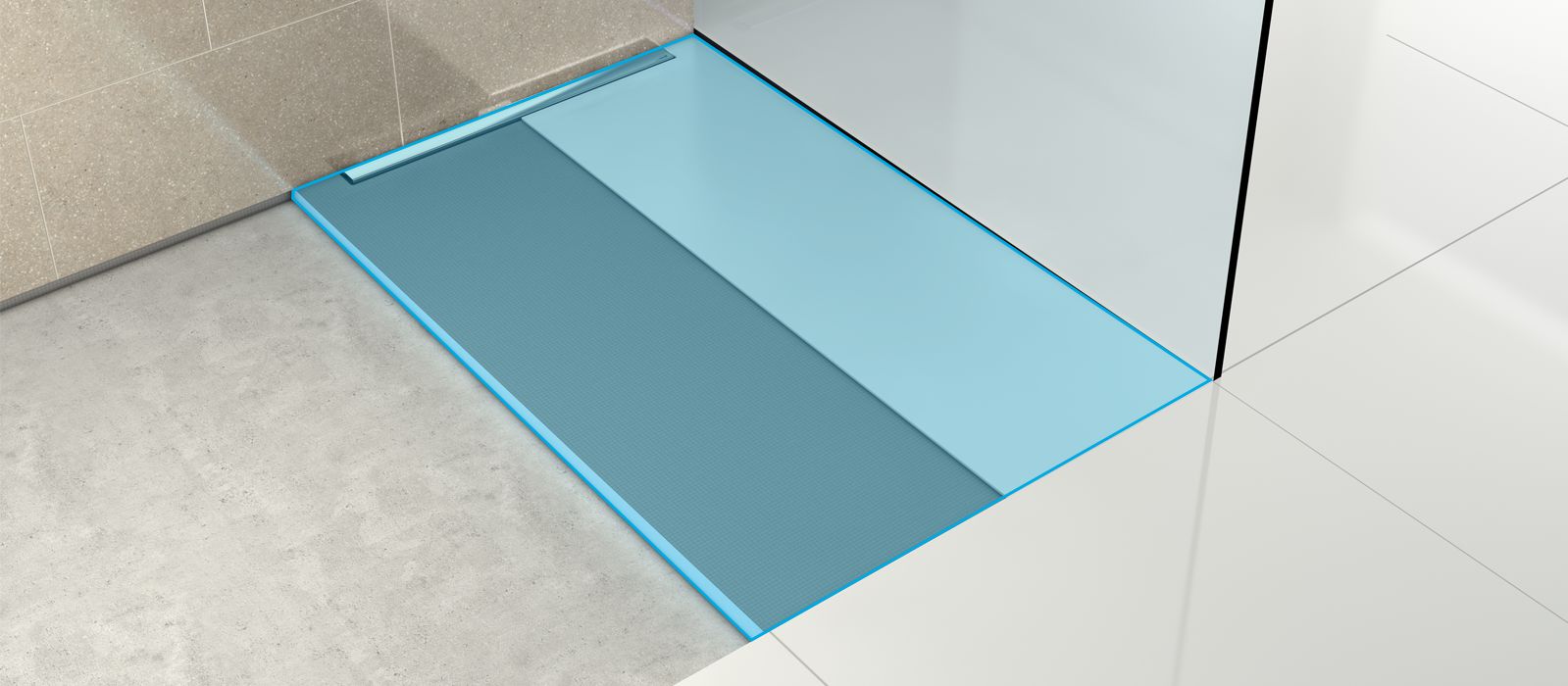

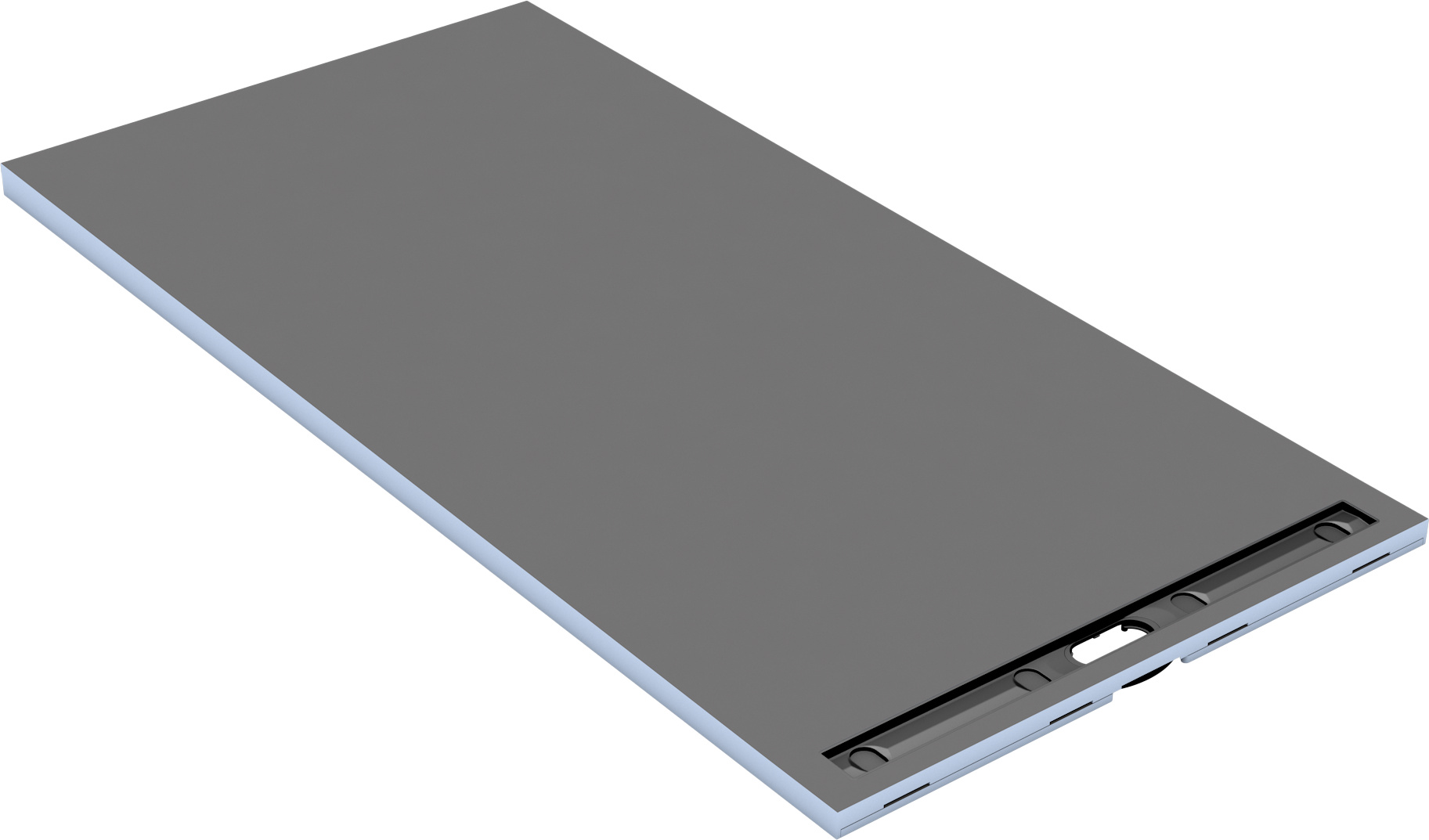

The floor-level shower element features three innovations which deliver real added value both visually and in terms of practicability: a drainage channel right next to the wall, a completely continuous slope right to the channel and more flexible adjustment to the room situation.

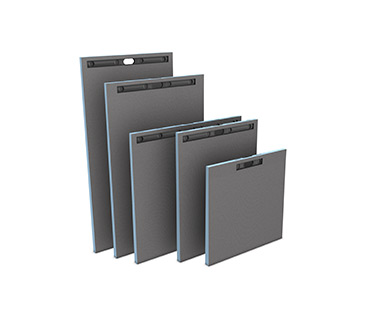

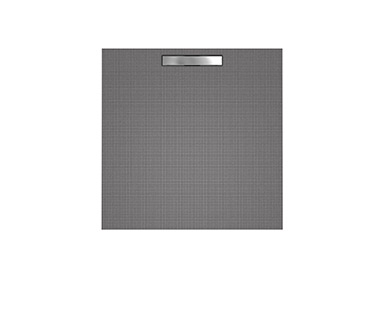

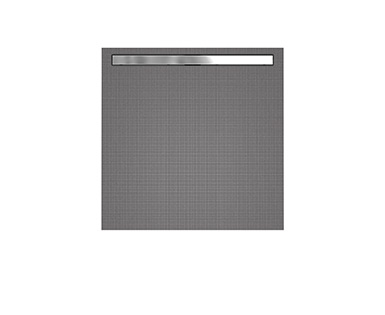

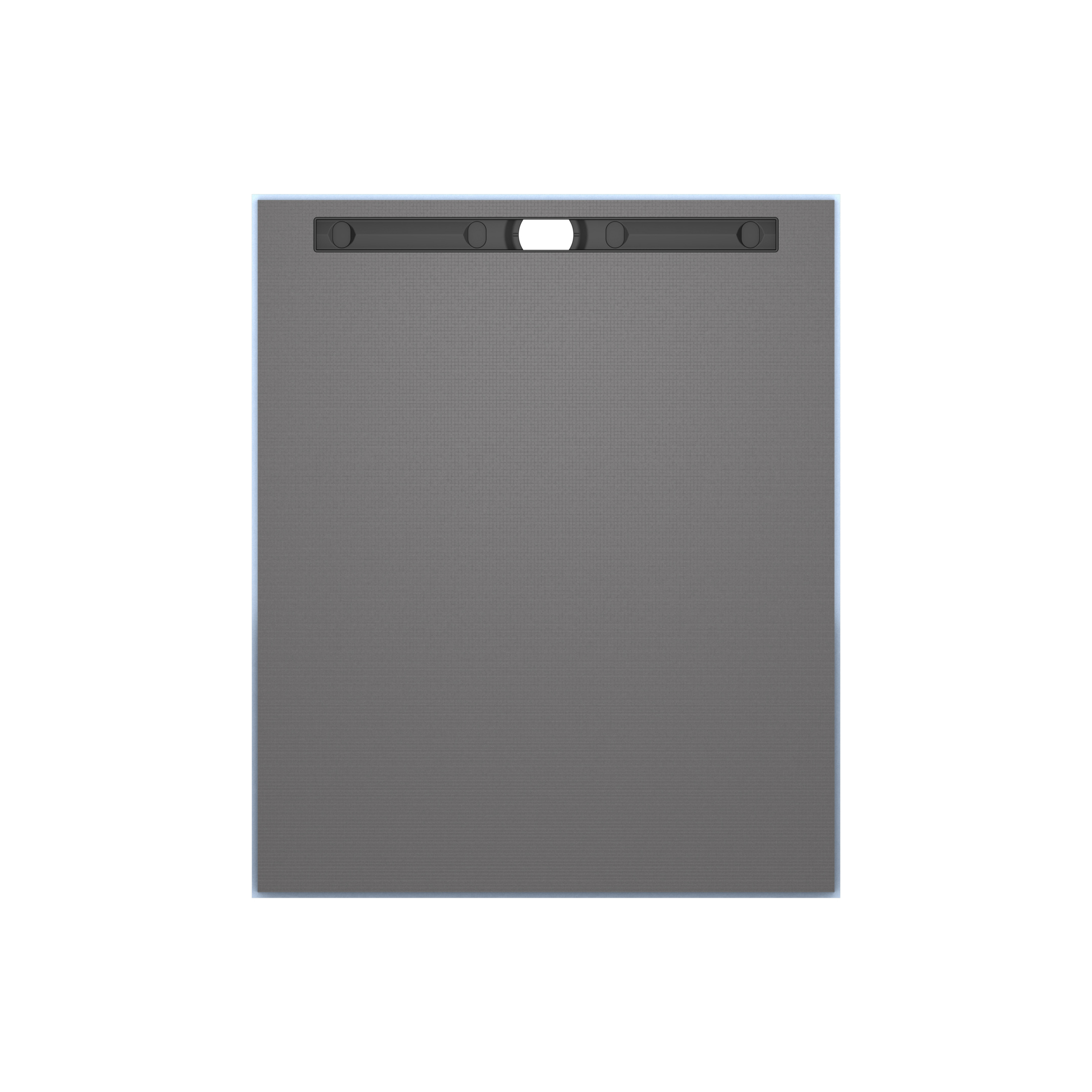

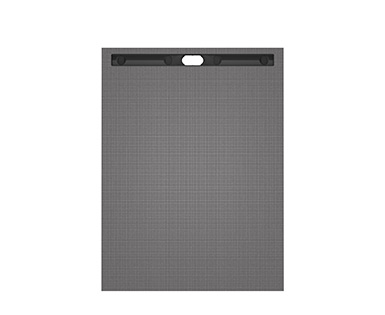

The new Fundo Riolito Neo is available not only in multiple formats, but also has the option of short or long channel drains. The shorter channel drain gives more flexibility on site to cut the shower elements to a individual customized size.
Whichever version you decide on, you can depend 100% on the unique advantages of this system with the right drains and full profile system customized to the drain.

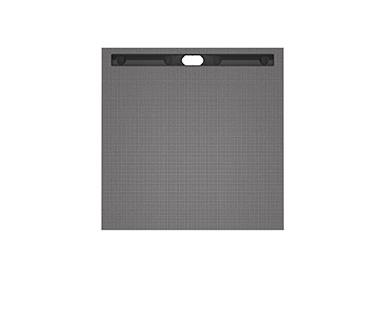

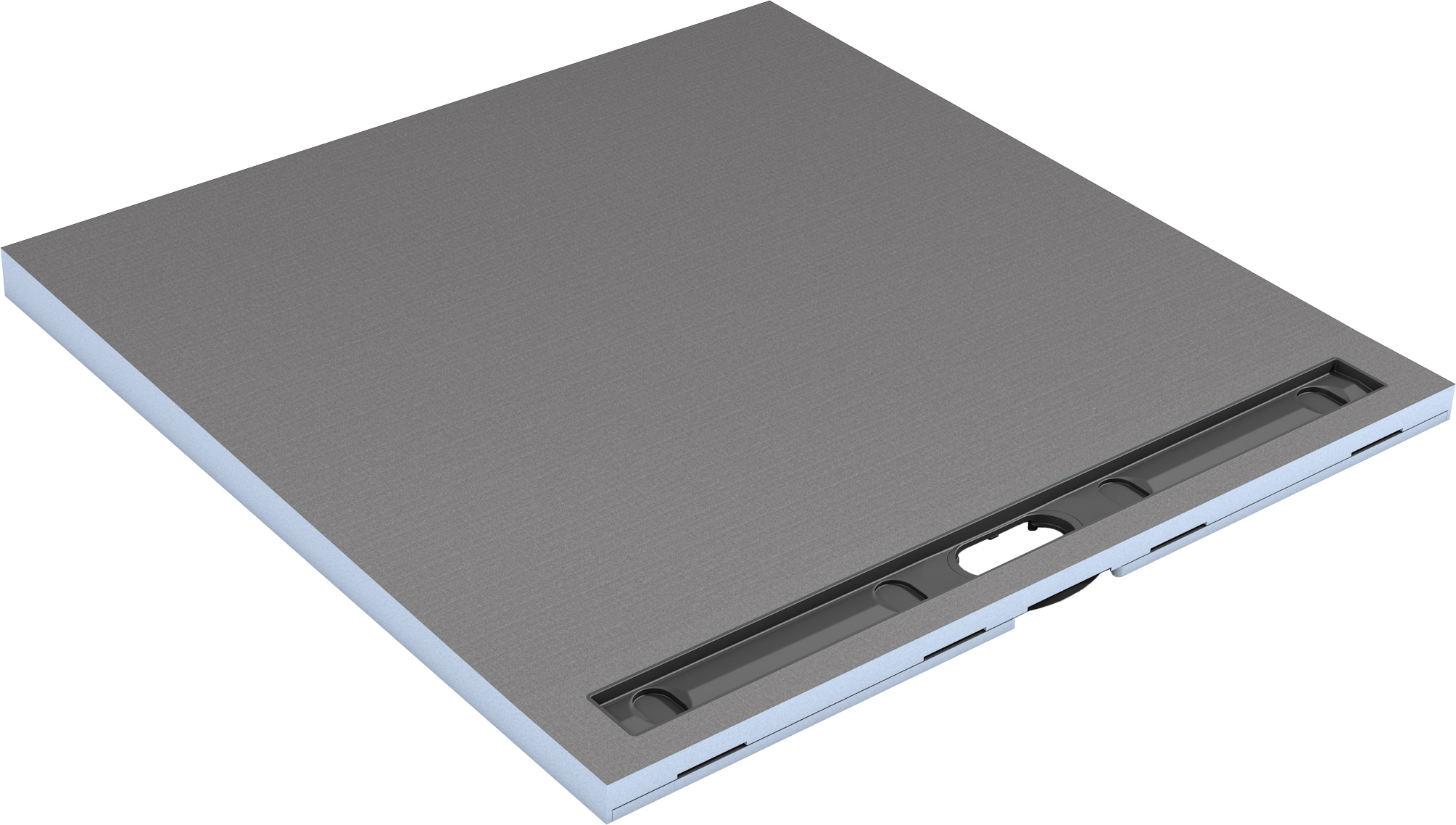

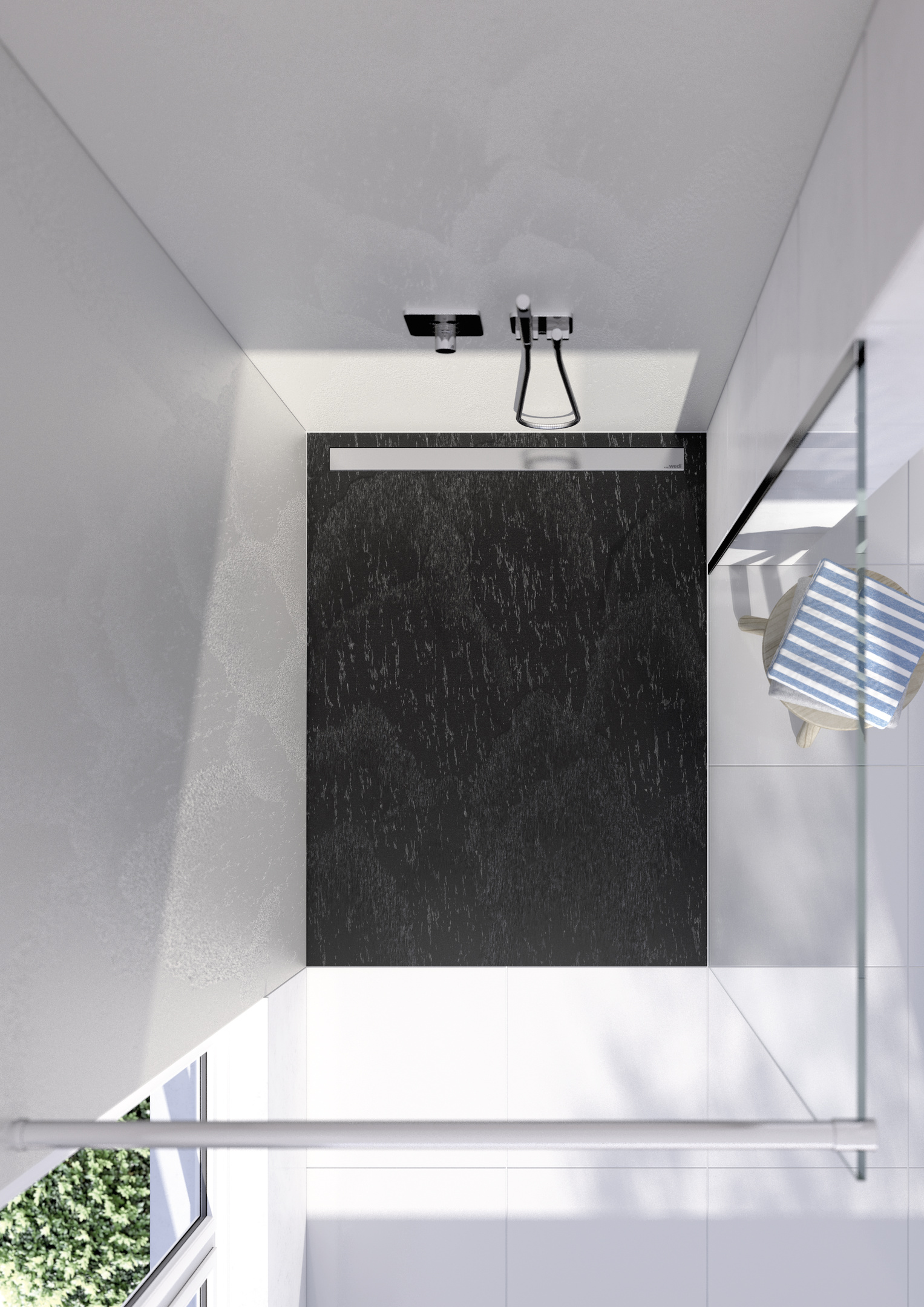

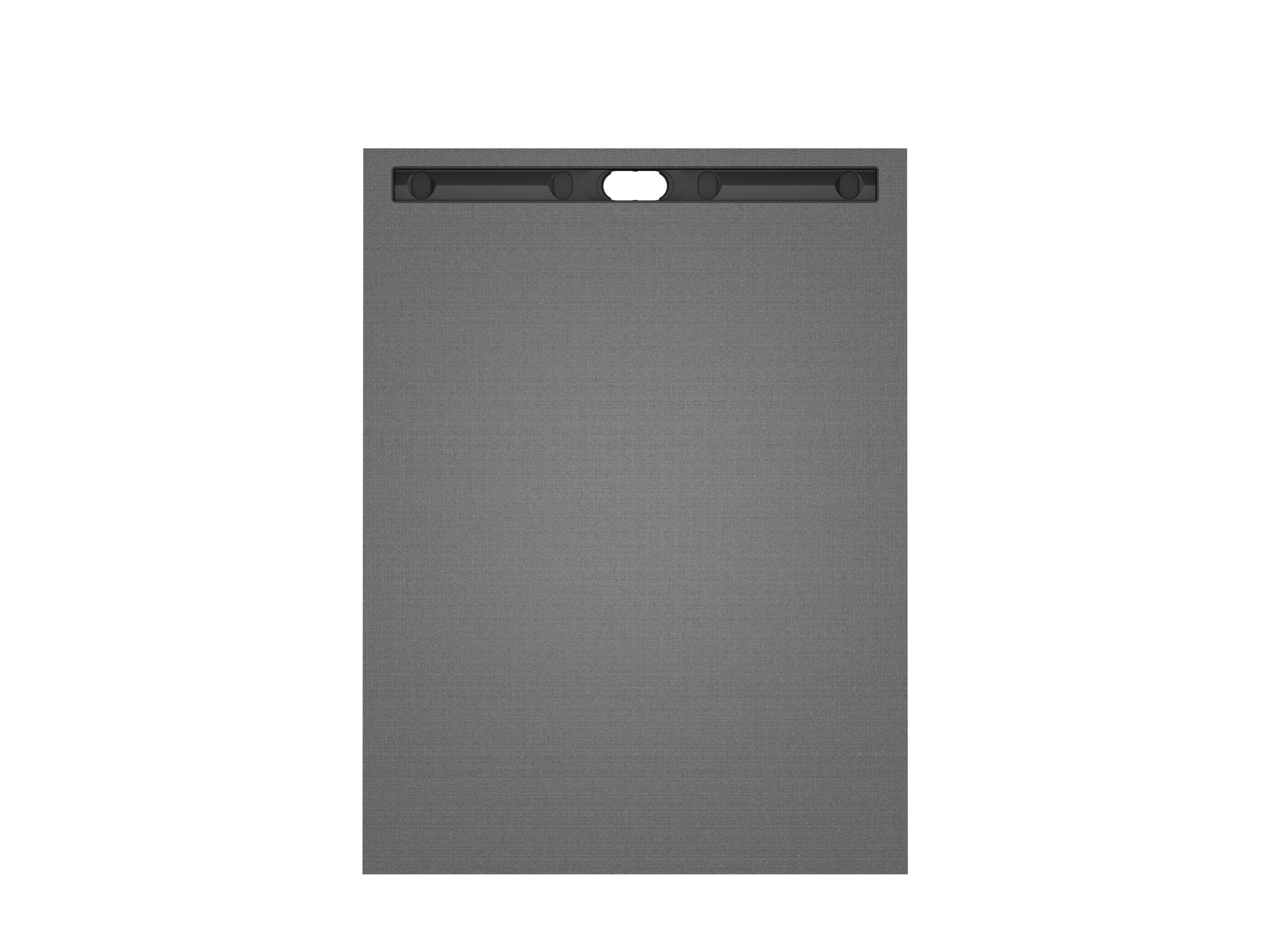

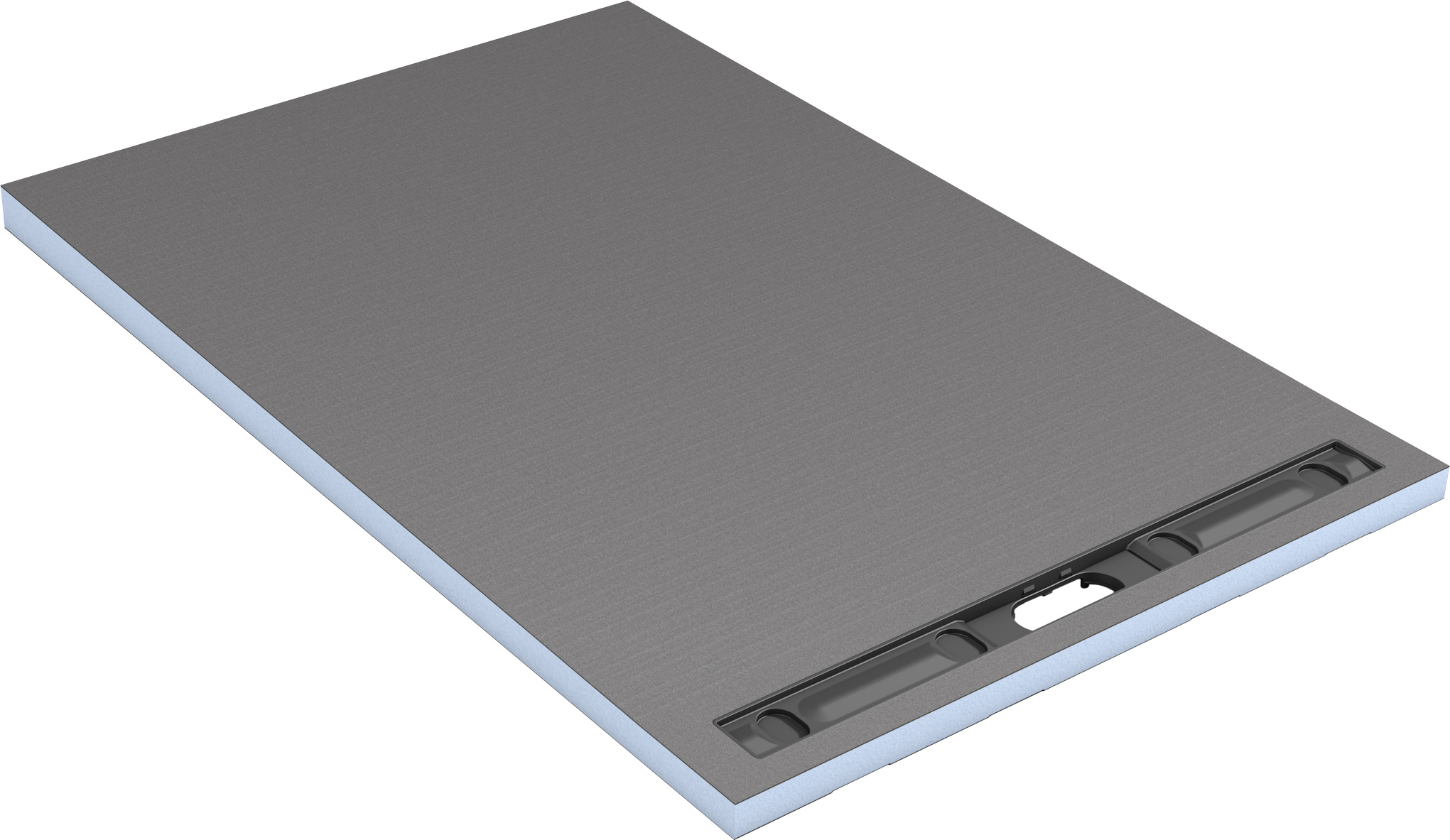

Thanks to a new, slimmer, oval drain the channel drain for the new Fundo Riolito Neo can be located even closer to the wall. Also in this case, large format tiles can be laid almost seamlessly.

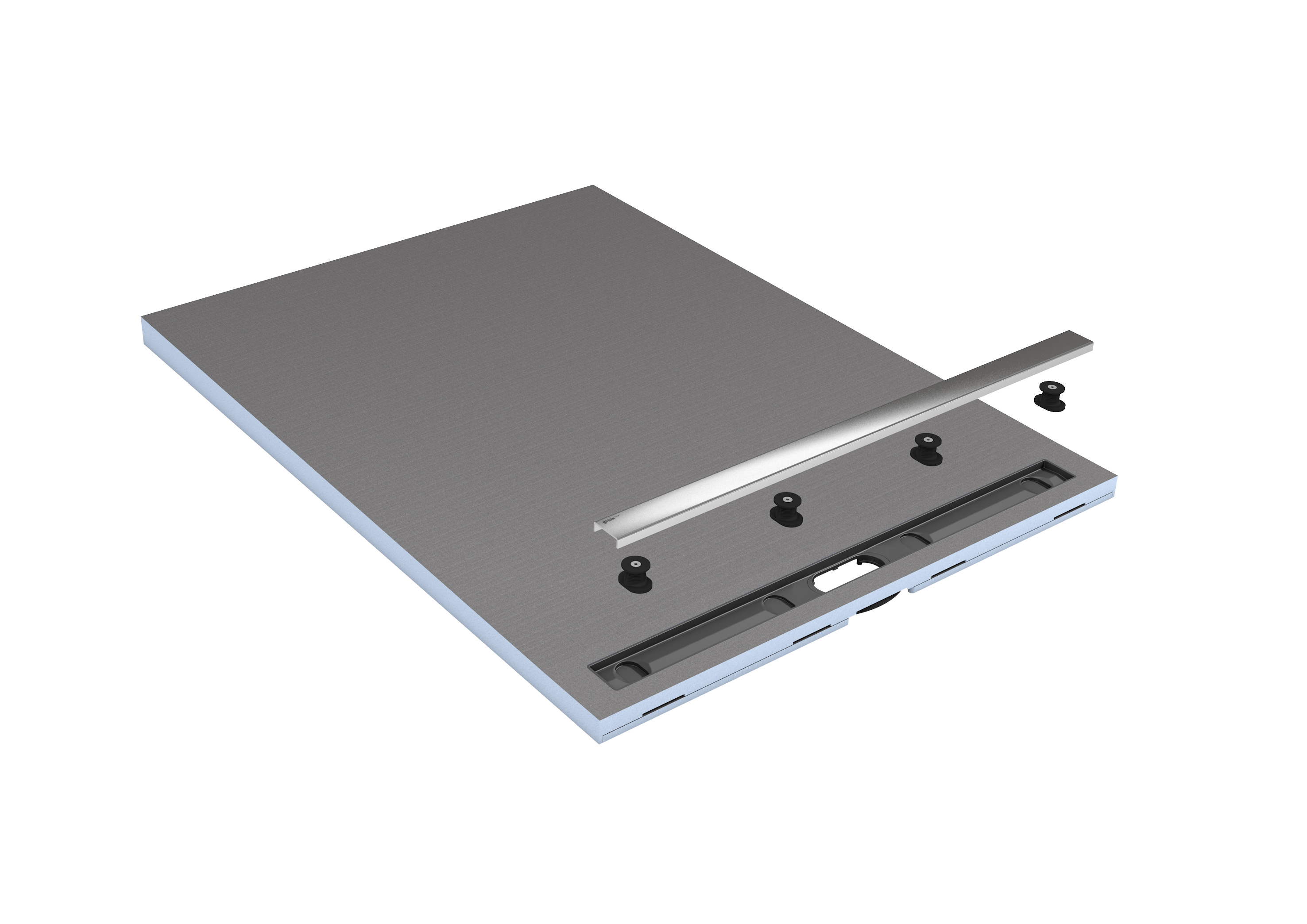

Height adjustment for the channel is integrated directly into the channel cover. A new development which, among other things, makes cleaning easier.
In addition, installation of the new Fundo Riolito Neo is just as easy and safe as the installation of the original Fundo Riolito range.
The new wedi Fundo Riolito Neo. – Innovation with added value.
All advantages at a single glance
Product information
The new wedi Fundo Riolito Neo.
The floor-level shower element features three innovations which deliver real added value both visually and in terms of practicability: a drainage channel right next to the wall, a completely continuous slope right to the channel and more flexible adjustment to the room situation.
The new Fundo Riolito Neo is available not only in multiple formats, but also has the option of short or long channel drains. The shorter channel drain gives more flexibility on site to cut the shower elements to a individual customized size.
Whichever version you decide on, you can depend 100% on the unique advantages of this system with the right drains and full profile system customized to the drain.
Thanks to a new, slimmer, oval drain the channel drain for the new Fundo Riolito Neo can be located even closer to the wall. Also in this case, large format tiles can be laid almost seamlessly.
Height adjustment for the channel is integrated directly into the channel cover. A new development which, among other things, makes cleaning easier.
In addition, installation of the new Fundo Riolito Neo is just as easy and safe as the installation of the original Fundo Riolito range.
The new wedi Fundo Riolito Neo. – Innovation with added value.
All advantages at a single glance
The floor-level shower element features three innovations which deliver real added value both visually and in terms of practicability: a drainage channel right next to the wall, a completely continuous slope right to the channel and more flexible adjustment to the room situation.
The new Fundo Riolito Neo is available not only in multiple formats, but also has the option of short or long channel drains. The shorter channel drain gives more flexibility on site to cut the shower elements to a individual customized size.
Whichever version you decide on, you can depend 100% on the unique advantages of this system with the right drains and full profile system customized to the drain.
Thanks to a new, slimmer, oval drain the channel drain for the new Fundo Riolito Neo can be located even closer to the wall. Also in this case, large format tiles can be laid almost seamlessly.
Height adjustment for the channel is integrated directly into the channel cover. A new development which, among other things, makes cleaning easier.
In addition, installation of the new Fundo Riolito Neo is just as easy and safe as the installation of the original Fundo Riolito range.
The new wedi Fundo Riolito Neo. – Innovation with added value.
Technical properties Fundo Riolito Neo
For a floor structure with sound insulation, the integration of the wedi Nonstep Pro or Nonstep Plan sound insulation mat and wedi edge insulation strips should be planned.
wedi Fundo Riolito Neo shower elements can be shortened on site, but the geometry of the elements must be maintained.
| Material | XPS |
| Long-term compressive strength (50 years) ≤ 2% compression EN 1606 |
0.08 N/mm² |
| Compressive resistance at 10% compression EN 826 | 0.25 N/mm² |
| Thermal conductivity EN 13164 | 0.036 W/mK |
| Bulk density EN 1602 | 32 kg/m³ |
| Temperature limits | -50°C / +75°C |
| Reaction to fire EN 13501-1 | E |
| Waterproof tested to | 1.5 bar |
| Wheelchair load-bearing from minimum tile size | 50 x 50 mm |
| Glass mosaic from minimum size | 20 x 20 mm |
| Minimum foundation height depending on the drain: horizontal drain, DN 50 vertical drain, DN 50 |
130 mm 50 mm |
| Surface slope (from outer edge of Fundo Riolito/Riofino floor element to outer edge) |
15 mm |
Areas of use Fundo Riolito Neo
- In private housing
- In publicly accessible buildings in accordance with DIN 18040 Section 1
- In barrier-free apartments in accordance with DIN 18040 Section 2 (taking the minimum tile size requirements for planned wheelchair load into consideration, see technical properties)
- As structural waterproofing in combination with wear class A0 and A tile and slab coverings (floor surfaces exposed to moderate stress from non-pressure water indoors; floor surfaces exposed to direct stress in rooms in which service and cleaning water is used often or for prolonged periods)
