Product information

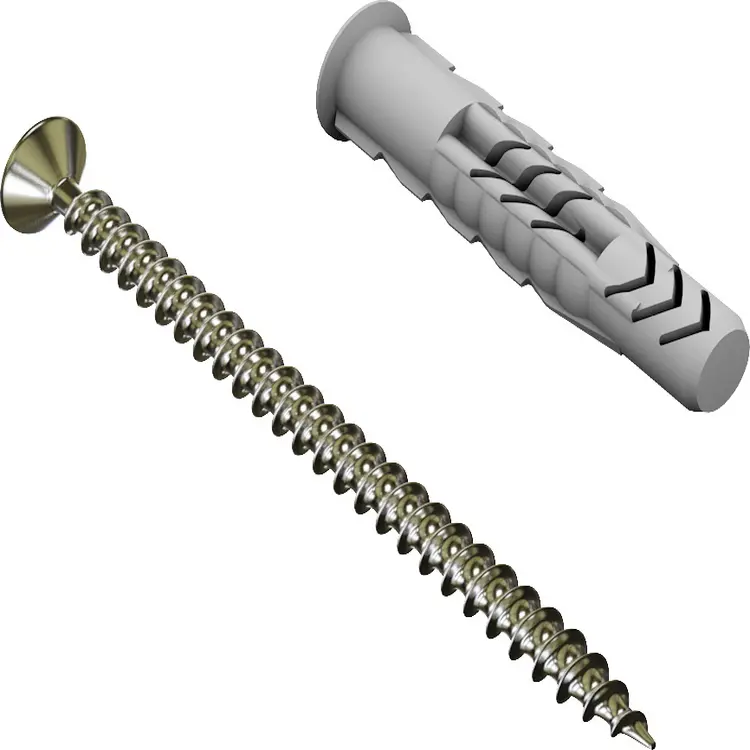

Everything you need for fixing once the tiling is complete. With the cavity dowel set, bathroom accessories such as mirrors, soap dispensers and towel rails can be attached quickly and easily.
Technical Details
The specified values refer exclusively to tiled building boards where the board’s thickness is a minimum of 20 mm. Installation on building boards with other finishes (plaster, etc.) is not permitted. For loads more than 25 kg (e.g. bath handrail) anchoring in a stable, load-bearing surface is required. This must be planned on site where necessary.
| Technical properties cavity dowels set | |
|---|---|
| safe load | 0,12 KN |
Usage
To fix light objects such as soap dishes, toilet paper holders, towel holders etc. to tiled wedi building boards/foam elements.

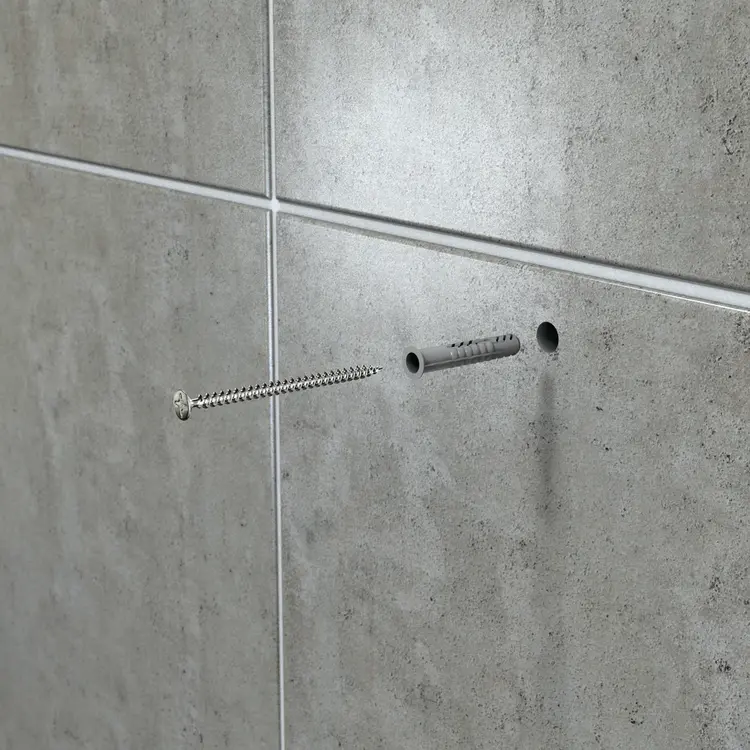

Drill a 6-mm hole. Remove drilling dust. Hammer in dowel.
The specified values refer exclusively to tiled building boards where the board’s thickness is a minimum of 20 mm. Installation on building boards with other finishes (plaster, etc.) is not permitted. For loads more than 25 kg (e.g. bath handrail) anchoring in a stable, load-bearing surface is required. This must be planned on site where necessary.
