Product information
The sturdy wall element with integrated niche is ideal for use as a shower partition wall, can be installed particularly easily and can then be directly tiled. Here, both the overall size and the niche size in the wedi Sanwell wall element can be individually customised.
The Sanwell wall element with a width of 900 mm or 1200 mm incl. niche installed in the factory is perfect for use as a free-standing wall.
Because it is made from waterproof polystyrene rigid foam, it is perfect for use as a shower partition wall, for example. Laborious construction and sealing is no longer required.
Technical Details
| Technical data Sanwell wall element | |
|---|---|
| Fire behaviour EN 13501 | E |
| Sound insulation value DIN EN ISO 140-3 | Rw,P 23 dB |
| Bending stress in reference to DIN 53293 | 3900 kPa (average) |
| Tensile strength | 0.28 N/mm² |
| Linear coefficient of thermal expansion | 0.02 mm/mk |
| Sanwell XL wall element weight | 16 kg |
| Sanwell XXL wall element weight | 24 kg |
| Long-term compressive strength (50 years) ≤ 2% compression EN 1606 | 0.08 N/mm² |
| Compressive resistance or compressive strength at 10% compression EN 826 | 0.25 N/mm² |
| Associated module of elasticity EN 826 | 10 – 18 N/mm² |
| Thermal conductivity EN 13164 | 0.036 W/mK |
| Tensile strength EN 1607 | 0.45 N/mm² |
| Shearing resistance EN 12090 | 0.2 N/mm² |
| Shear modulus EN 12090 | 7 N/mm² |
| Bulk density EN 1602 | 32 kg/m3 |
| Resistance to water vapour diffusion (μ) EN 12086 | 100 |
| Water absorption under long-term immersion EN 12087 | ≤ 1.5 % by vol. |
| Capillary action | 0 |
| Linear coefficient of thermal expansion | 0.07 mm/mK |
| Temperature limits | -50°C / +75°C |
| Fire behaviour EN 13501 | E |
| Carbon dioxide propellant GWP value | 1 |

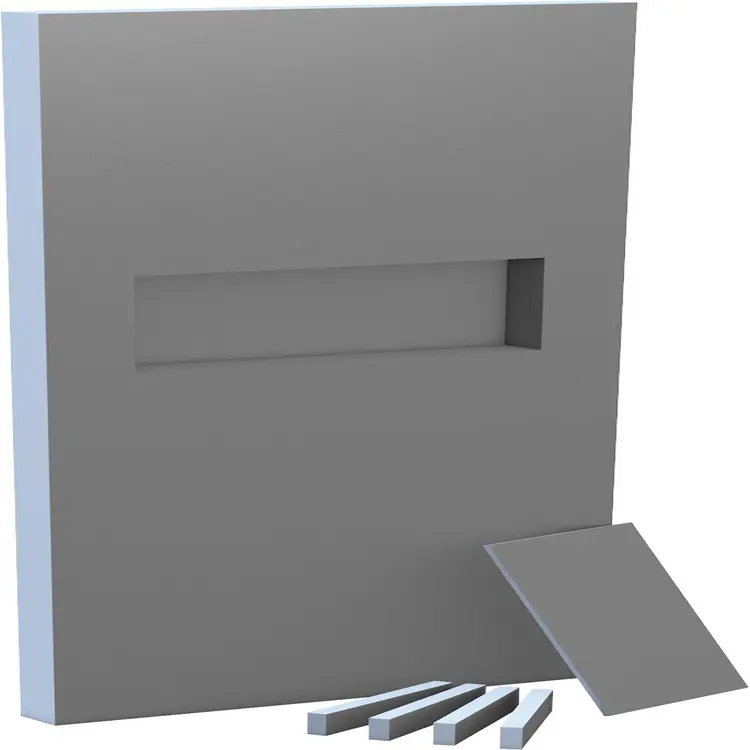

| Wall element XL dimensions | 2500 × 900 × 100 mm |
| Niche dimensions | 334 × 634 × 90 mm |

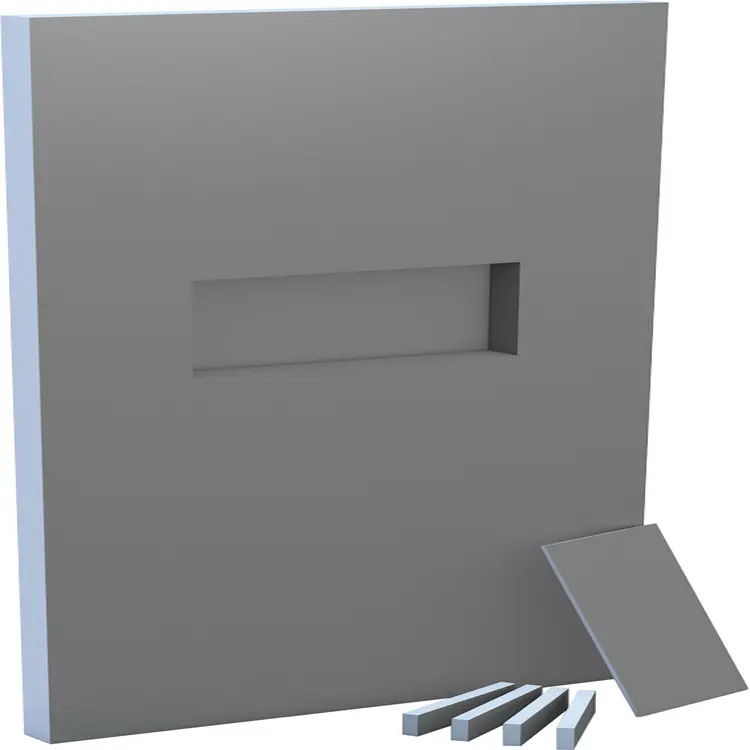

| Wall element XXL dimensions | 2500 × 1200 × 100 mm |
| Niche dimensions | 334 × 634 × 90 mm |
wedi Tools edge insulation strip
wedi 320 universal tile adhesive
wedi 360 flexible medium-bed mortar
wedi 620 sealant
wedi 520 sealant
wedi Tools wall sealing set
wedi Tools sealing tape, corners and sealing gaiters
wedi Tools joint reinforcement tape
wedi Tools cut-resistant tape
wedi Tools washer
wedi Tools metal dowel
wedi Tools cavity dowels set
wedi Top Wall installation set
Downloads
Usage

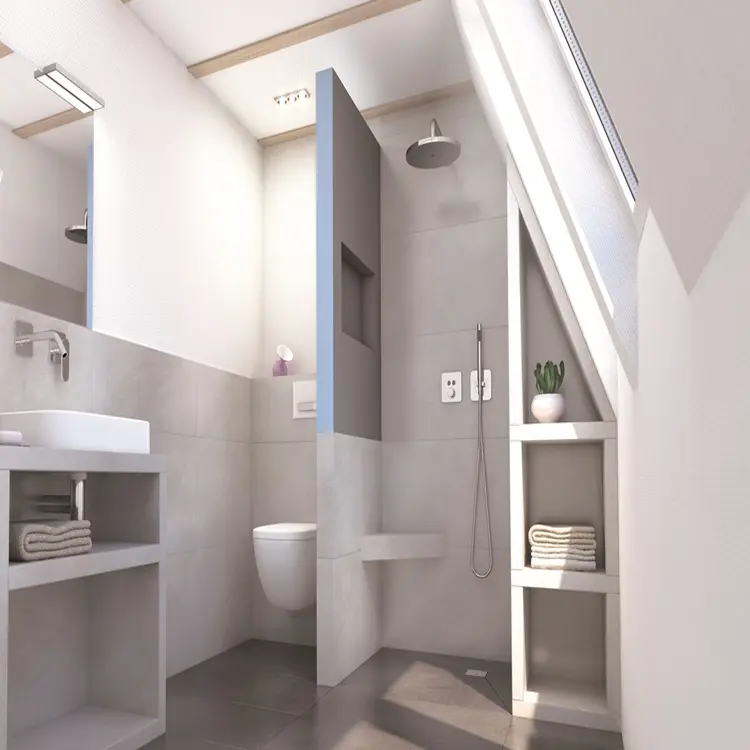

Thanks to this special properties, the stable wall elements with integrated niche are very versatile:
• Shower partition wall
• Design element in the bathroom
• Construction tool in the SPA and wellness area
• Individual partition walls for shower cubicles
The wedi Sanwell wall elements are approved for private and commercial use in indoor applications. Waterproof reinforcement plates can be incorporated into the element for fixing of shower heads or mixer taps. Please contact wedi's technical team for application advice.
