Product information

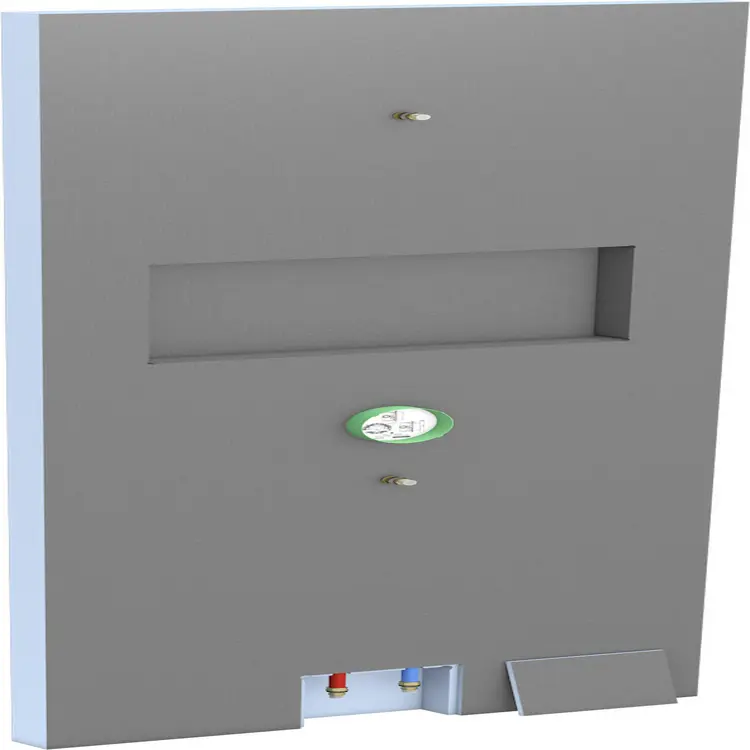

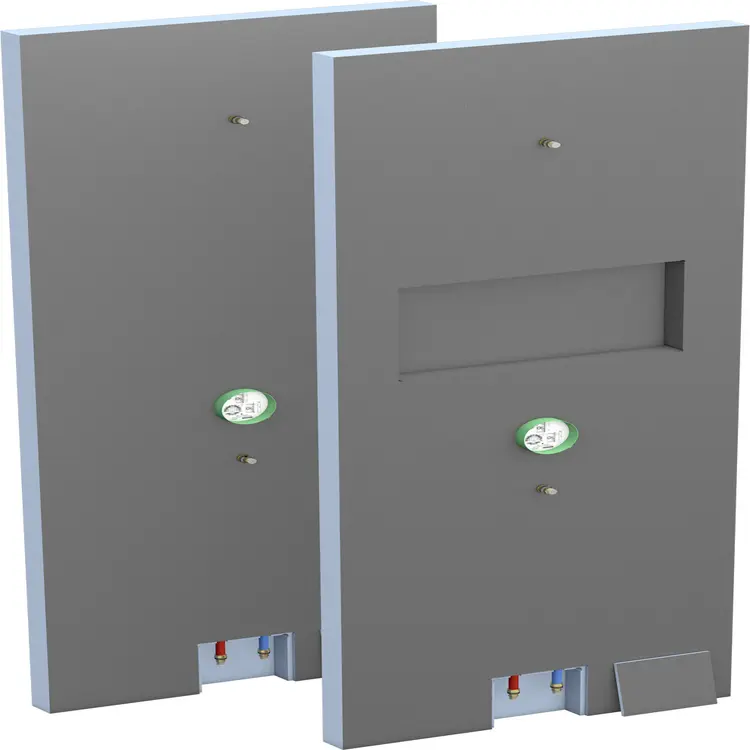

Featuring factory-integrated, sealed hot and cold-water pipes and a Hansgrohe iBox the new wedi Sanwell shower wall module guarantees a simple and fast installation. What’s more, there are many individualisation options to meet customer specific needs such as an integrated niche or selectable height of integrated reinforcements for the attachment of the shower heads for example. The robust, shower wall module is available in 900 or 1200mm width, 80 or 100mm thickness and can be used as a fixed wall or as a free-standing partition.
Due to the degree of prefabrication it doesn’t only save time and waste on the construction site but due to the reduction of interfaces between different trades, achieves the highest level of system security providing peace of mind for all.

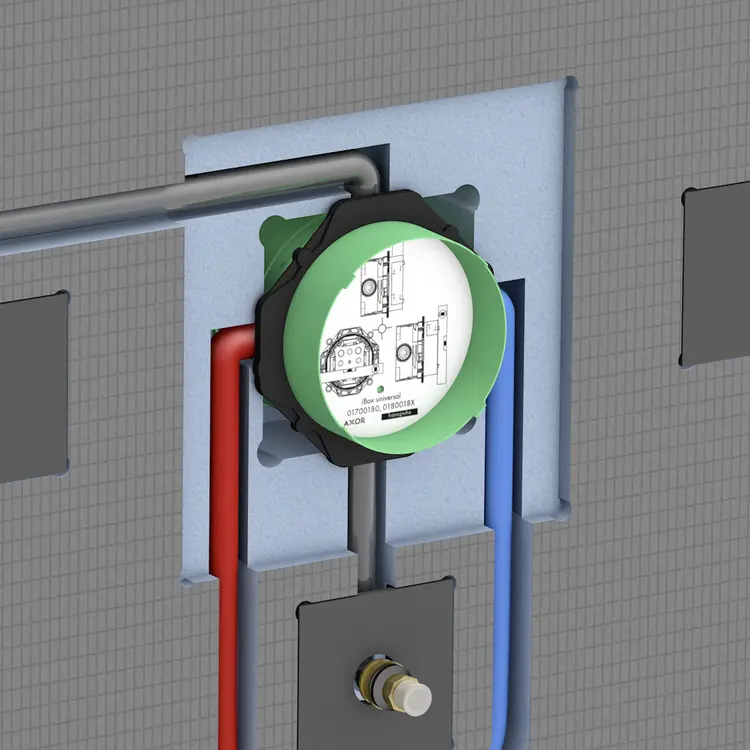

- Hansgrohe iBox to suit 200+ thermostatic mixer designs

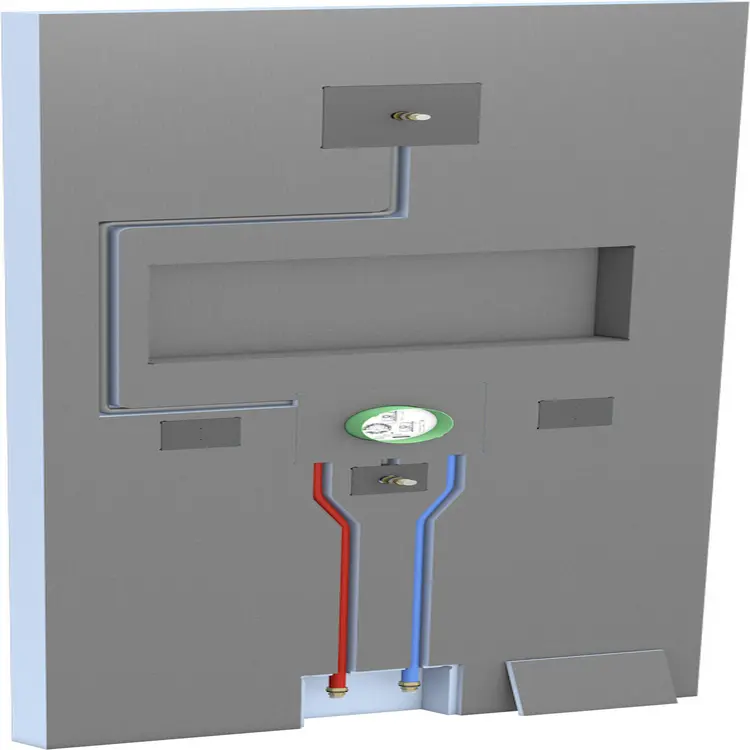

- Integrated hot and cold-water pipes
- 100% waterproof to its core
- Lightweight – can be installed by one person
Technical Details
| Technical data Sanwell shower wall module | |
|---|---|
| Fire behaviour EN 13501 | E |
| Sound insulation value DIN EN ISO 140-3 | Rw,P 23 dB |
| Bending stress in reference to DIN 53293 | 3900 kPa (average) |
| Tensile strength | 0.28 N/mm² |
| Linear coefficient of thermal expansion | 0.02 mm/mk |
| Long-term compressive strength (50 years) ≤ 2% compression EN 1606 | 0.08 N/mm² |
| Compressive resistance or compressive strength at 10% compression EN 826 | 0.25 N/mm² |
| Associated module of elasticity EN 826 | 10 – 18 N/mm² |
| Thermal conductivity EN 13164 | 0.036 W/mK |
| Tensile strength EN 1607 | 0.45 N/mm² |
| Shearing resistance EN 12090 | 0.2 N/mm² |
| Shear modulus EN 12090 | 7 N/mm² |
| Bulk density EN 1602 | 32 kg/m³ |
| Resistance to water vapour diffusion (μ) EN 12086 | 100 |
| Water absorption under long-term immersion EN 12087 | ≤ 1.5 % by vol. |
| Capillary action | 0 |
| Linear coefficient of thermal expansion | 0.07 mm/mK |
| Temperature limits | -50°C / +75°C |
| Fire behaviour EN 13501 | E |
| Carbon dioxide propellant GWP value | 1 |
Fundo Integro- Fundo Plano
Fundo Primo
Fundo Ligno Plus
Fundo Borgo
Fundo Trollo
Fundo Nautilo
for wedi Solso
Fundo Plano Linea
Fundo Riolito Neo
Fundo Riolito
Fundo RioLigno
Fundo Riofino
Fundo Discreto
Preline building board
Sanwell wall elements
Sanwell niches
Sanoasa floating bench
Sanoasa bench 1-4
Sanoasa corner seat element
wedi Sanoasa Comoda
wedi Sanoasa Bellina
Sanoasa lounger 4
wedi Tools edge insulation strip
wedi 320 universal tile adhesive
wedi 360 flexible medium-bed mortar
wedi 610 adhesive sealant
wedi 520 sealant
wedi Tools wall sealing set
wedi Tools sealing tape, corners and sealing gaiters
wedi Tools bathtub sealing tape
wedi Tools joint reinforcement tape
wedi Tools cut-resistant tape
wedi Tools washer
wedi Tools metal dowel
wedi Tools cavity dowels set
wedi Top Wall installation set
Downloads
Usage
Thanks to its robust and clever design just a simple plug-in is needed for the connection to existing water pipes, hence it minimises risks and saves significant amount of construction time.

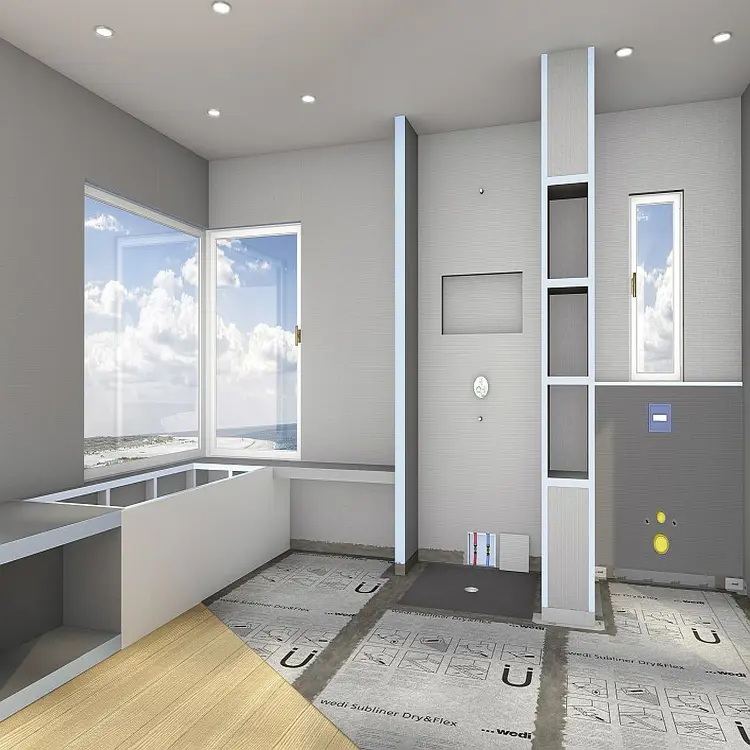

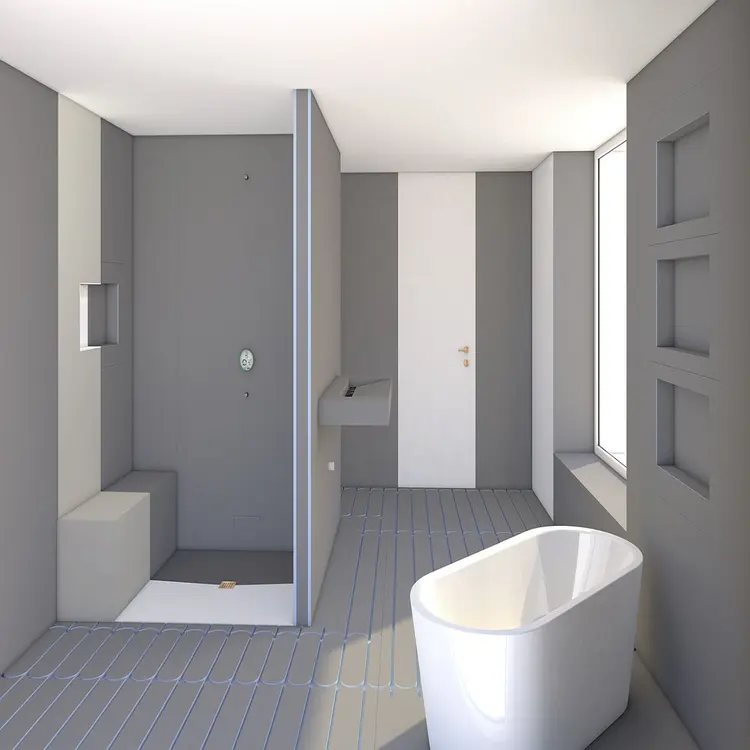

• Can be used as a fixed wall on existing substrates or as a free-standing partition

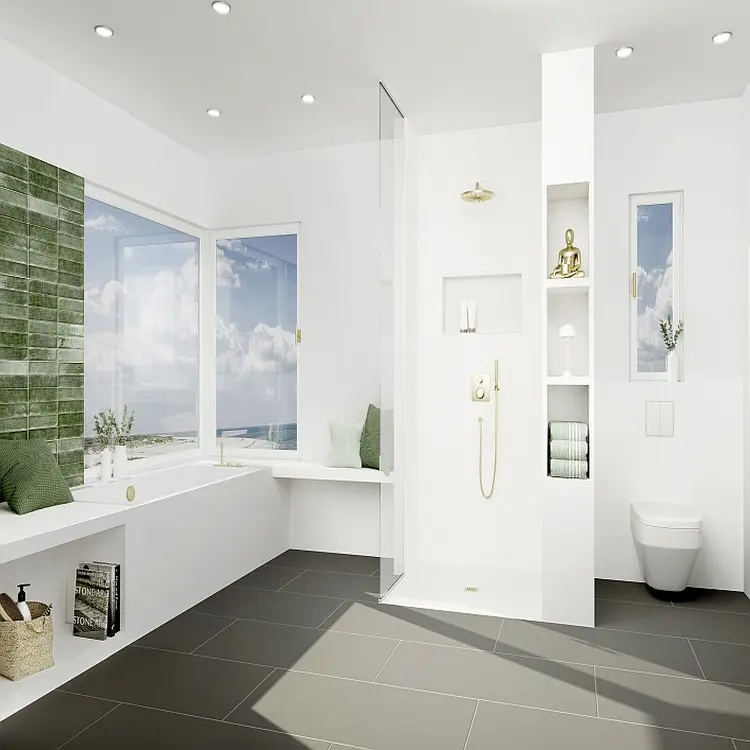

• Directly tileable or ready to receive wedi Top design surfaces as a groutless finish
• Installed in 30 minutes and ready to tile the next day

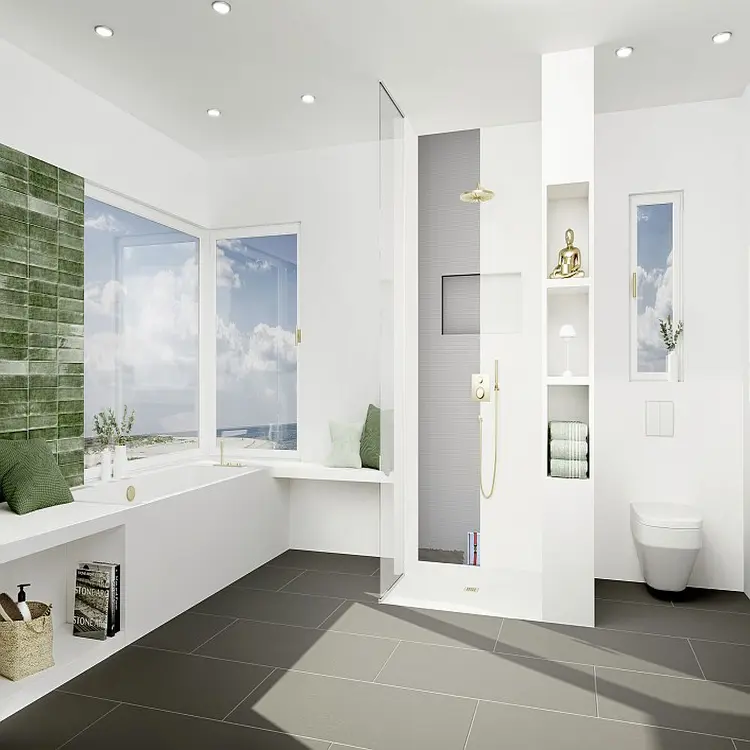

• Ideal solution for leisure, spa & wellness applications
