Slope profiles for Fundo Riolito & RioLigno Showers

Product information

When installing floor-level showers it is sometimes necessary to cut the tiles to the slope of the floor element. Thanks to the wedi slope wedges, the complicated and time-consuming or cutting of the wall tiles is no longer necessary. The wedge-formed Fundo Riolito slope profiles have been specifically designed for the Fundo Riolito floor elements. The profiles make a visually high-quality transition from the slope of the floor element to the level floor element, or to a directly adjacent wall possible. The profiles are available in both left- and right-hand designs as well as in a variety of different heights.

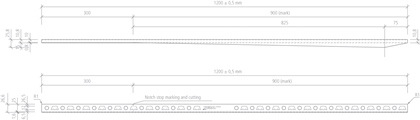

The wedi Riolito slope wedge wall is simply anchored in the bed of adhesive and precisely fills the space between the horizontally laid wall tiles and the Fundo Riolito floor elements. For an aesthetically pleasing transition to the adjacent tiled floor, the wedge-shaped and adaptable wedi Riolito slope wedge floor is used.

Particularly simple and quick installation - Just anchor the profile in the bed of adhesive
The particularly flat design prevents the formation of cavities during installation
Also suitable for higher tile strengths, e.g. by lining with the wedi building board
Brushed stainless steel

Technical Details

Order no.	Designation	L x W x thickness
106100008	Fundo Riolito slope wedge, floor, left-hand version, brushed stainless steel, 8 mm	1200 mm x 8 mm
106100010	Fundo Riolito slope wedge, floor, left-hand version, brushed stainless steel, 10 mm	1200 mm x 10 mm
106100011	Fundo Riolito slope wedge, floor, left-hand version, brushed stainless steel, 11 mm	1200 mm x 11 mm
106100012	Fundo Riolito slope wedge, floor, left-hand version, brushed stainless steel, 12,5 mm	1200 mm x 12,5 mm
106300008	Fundo Riolito slope wedge, floor, left-hand version, brushed stainless steel, 8 mm	1600 mm x 8 mm
106300010	Fundo Riolito slope wedge, floor, left-hand version, brushed stainless steel, 10 mm	1600 mm x 10 mm
106300011	Fundo Riolito slope wedge, floor, left-hand version, brushed stainless steel, 11 mm	1600 mm x 11 mm
106300012	Fundo Riolito slope wedge, floor, left-hand version, brushed stainless steel, 12,5 mm	1600 mm x 12,5 mm
106500008	Fundo Riolito slope wedge, floor, left-hand version, brushed stainless steel, 8 mm	1800 mm x 8 mm
106500010	Fundo Riolito slope wedge, floor, left-hand version, brushed stainless steel, 10 mm	1800 mm x 10 mm
106500011	Fundo Riolito slope wedge, floor, left-hand version, brushed stainless steel, 11 mm	1800 mm x 11 mm
106500012	Fundo Riolito slope wedge, floor, left-hand version, brushed stainless steel, 12,5 mm	1800 mm x 12,5 mm
106110008	Fundo Riolito slope wedge, floor, right-hand version, brushed stainless steel, 8 mm	1200 mm x 8 mm
106110010	Fundo Riolito slope wedge, floor, right-hand version, brushed stainless steel, 10 mm	1200 mm x 10 mm
106110011	Fundo Riolito slope wedge, floor, right-hand version, brushed stainless steel, 11 mm	1200 mm x 11 mm
106110012	Fundo Riolito slope wedge, floor, right-hand version, brushed stainless steel, 12,5 mm	1200 mm x 12,5 mm
106310008	Fundo Riolito slope wedge, floor, right-hand version, brushed stainless steel, 8 mm	1600 mm x 8 mm
106310010	Fundo Riolito slope wedge, floor, right-hand version, brushed stainless steel, 10 mm	1600 mm x 10 mm
106310011	Fundo Riolito slope wedge, floor, right-hand version, brushed stainless steel, 11 mm	1600 mm x 11 mm
106310012	Fundo Riolito slope wedge, floor, right-hand version, brushed stainless steel, 12,5 mm	1600 mm x 12,5 mm
106510008	Fundo Riolito slope wedge, floor, right-hand version, brushed stainless steel, 8 mm	1800 mm x 8 mm
106510010	Fundo Riolito slope wedge, floor, right-hand version, brushed stainless steel, 10 mm	1800 mm x 10 mm
106510011	Fundo Riolito slope wedge, floor, right-hand version, brushed stainless steel, 11 mm	1800 mm x 11 mm
106510012	Fundo Riolito slope wedge, floor, right-hand version, brushed stainless steel, 12,5 mm	1800 mm x 12,5 mm
106200008	Fundo Riolito slope wedge, wall, left-hand version, brushed stainless steel, 8 mm	1200 mm x 8 mm
106200010	Fundo Riolito slope wedge, wall, left-hand version, brushed stainless steel, 10 mm	1200 mm x 10 mm
106200011	Fundo Riolito slope wedge, wall, left-hand version, brushed stainless steel, 11 mm	1200 mm x 11 mm
106200012	Fundo Riolito slope wedge, wall, left-hand version, brushed stainless steel, 12,5 mm	1200 mm x 12,5 mm
106400008	Fundo Riolito slope wedge, wall, left-hand version, brushed stainless steel, 8 mm	1600 mm x 8 mm
106400010	Fundo Riolito slope wedge, wall, left-hand version, brushed stainless steel, 10 mm	1600 mm x 10 mm
106400011	Fundo Riolito slope wedge, wall, left-hand version, brushed stainless steel, 11 mm	1600 mm x 11 mm
106400012	Fundo Riolito slope wedge, wall, left-hand version, brushed stainless steel, 12,5 mm	1600 mm x 12,5 mm
106600008	Fundo Riolito slope wedge, wall, left-hand version, brushed stainless steel, 8 mm	1800 mm x 8 mm
106600010	Fundo Riolito slope wedge, wall, left-hand version, brushed stainless steel, 10 mm	1800 mm x 10 mm
106600011	Fundo Riolito slope wedge, wall, left-hand version, brushed stainless steel, 11 mm	1800 mm x 11 mm
106600012	Fundo Riolito slope wedge, wall, left-hand version, brushed stainless steel, 12,5 mm	1800 mm x 12,5 mm
106210008	Fundo Riolito slope wedge, wall, right-hand version, brushed stainless steel, 8 mm	1200 mm x 8 mm
106210010	Fundo Riolito slope wedge, wall, right-hand version, brushed stainless steel, 10 mm	1200 mm x 10 mm
106210011	Fundo Riolito slope wedge, wall, right-hand version, brushed stainless steel, 11 mm	1200 mm x 11 mm
106210012	Fundo Riolito slope wedge, wall, right-hand version, brushed stainless steel, 12,5 mm	1200 mm x 12,5 mm
106410008	Fundo Riolito slope wedge, wall, right-hand version, brushed stainless steel, 8 mm	1600 mm x 8 mm
106410010	Fundo Riolito slope wedge, wall, right-hand version, brushed stainless steel, 10 mm	1600 mm x 10 mm
106410011	Fundo Riolito slope wedge, wall, right-hand version, brushed stainless steel, 11 mm	1600 mm x 11 mm
106410012	Fundo Riolito slope wedge, wall, right-hand version, brushed stainless steel, 12,5 mm	1600 mm x 12,5 mm
106610008	Fundo Riolito slope wedge, wall, right-hand version, brushed stainless steel, 8 mm	1800 mm x 8 mm
106610010	Fundo Riolito slope wedge, wall, right-hand version, brushed stainless steel, 10 mm	1800 mm x 10 mm
106610011	Fundo Riolito slope wedge, wall, right-hand version, brushed stainless steel, 11 mm	1800 mm x 11 mm
106610012	Fundo Riolito slope wedge, wall, right-hand version, brushed stainless steel, 12,5 mm	1800 mm x 12,5 mm
