Product information
wedi building boards have a blue core made from CFC-free extruded polystyrene rigid foam.
This makes the wedi building board an ideal basis for any type of plaster and tile. wedi building boards can be applied to practically any substrate, are waterproof, insulating, versatile, light and robust.

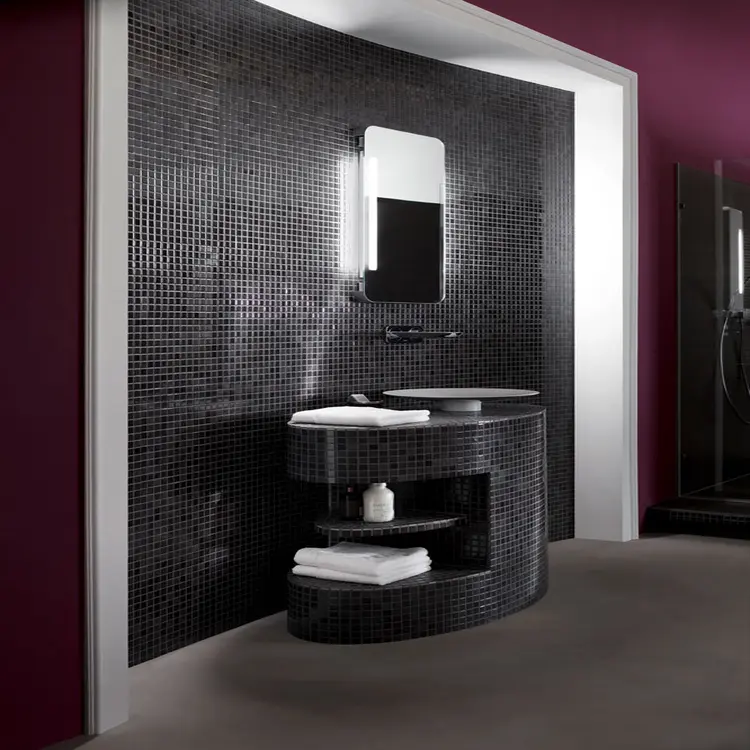

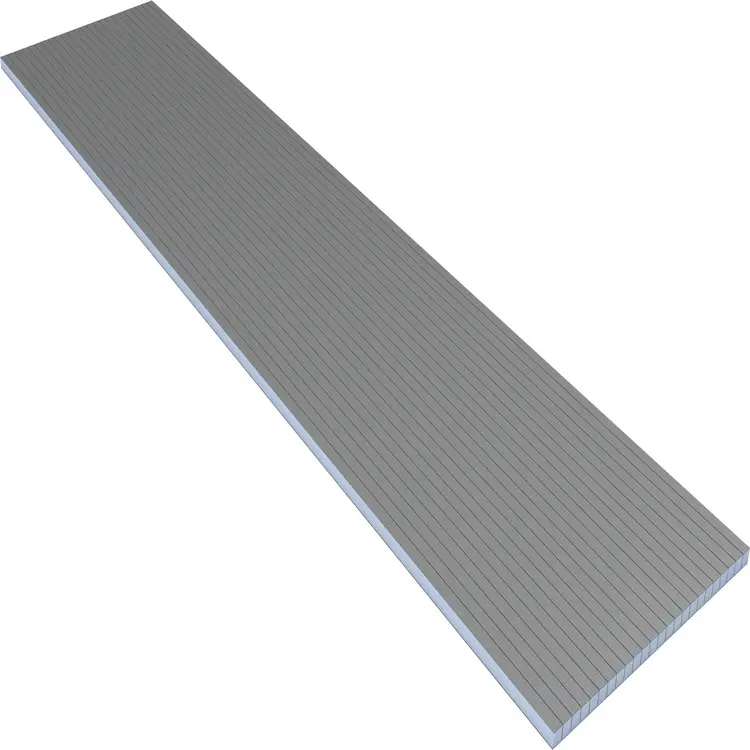

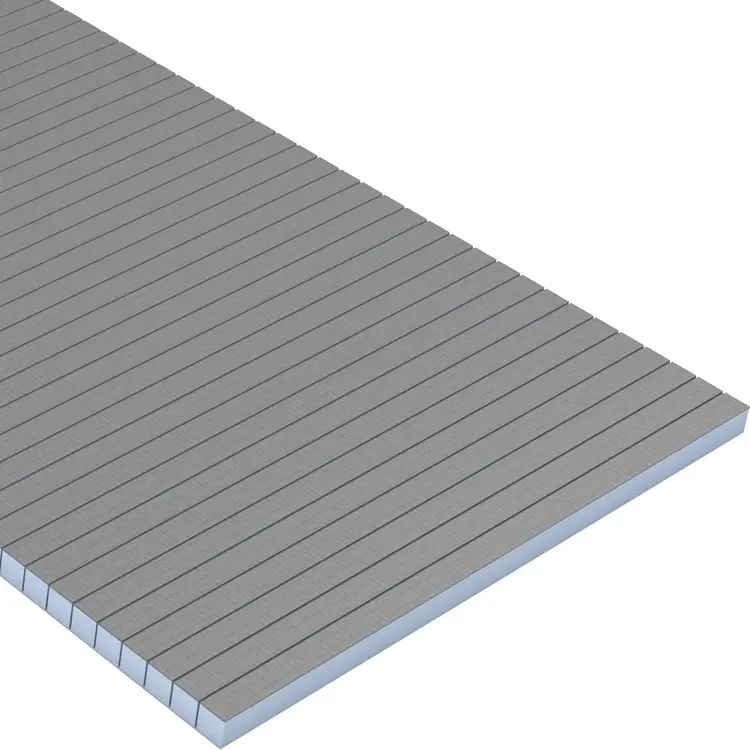

wedi Construct building board, offers many possibilities when it comes to designing customised forms. Whether you are looking for small radii or semicircular solutions, thanks to the pre-cut profiles the Construct building board gives you the freedom to be creative.
- The blue XPS core is 100% waterproof and remains fully functional even after possible damage.
- abP*: building board butt joints can be sealed 100% simply by using wedi 610. As no other seal is necessary, craftsmen benefit from increased security accompanied by a shorter tiling time.
- The cemented surface is a good adhesive under-surface. The fibre fabric also absorbs tensile forces.
- All building board systems have great heat insulation properties,
Hygienic
Protection against mold and fungal growth
Field-tested
The original pioneers, successfully leading the way for 40 years
Reliable
100% Waterproof from 2mm thick XPS core
Fast
Balances uneven walls, directly tileable
Simple
Easy cutting, easy installation
Design with the malleable building board Construct
This content is provided by YouTube. By loading this content, you consent to the transfer of your data to YouTube / Google. You can find more information about this here:
Google Privacy.
Technical Details
| Technical properties – Rigid foam | |
|---|---|
| Long-term compressive strength (50 years) ≤ 2% compression EN 1606 | 0,08 N/mm2 |
| Compressive resistance or compressive strength at 10% compression EN 826 | 0,25 N/mm2 |
| Associated modulus of elasticity EN 826 | 10 –18 N/mm2 |
| Thermal conductivity EN 13164 | 0,036 W/mK |
| Tensile strength EN 1607 | 0,45 N/mm2 |
| Shearing resistance EN 12090 | 0,2 N/mm2 |
| Shear modulus EN 12090 | 7 N/mm2 |
| Bulk density EN 1602 | 32 kg/m3 |
| Resistance to water vapour diffusion(μ) EN 12086 | 100 |
| Water absorption under long-term immersion EN 12087 | ≤ 1,5 Vol.-% |
| Capillar action | 0 |
| Linear coefficient of thermal expansion | 0,07 mm/mK |
| Temperature limits | -50°C / +75°C |
| Fire behaviour EN 13501 | E |
| Propellant gas, carbon dioxide, GWP value | 1 |
Downloads
Usage

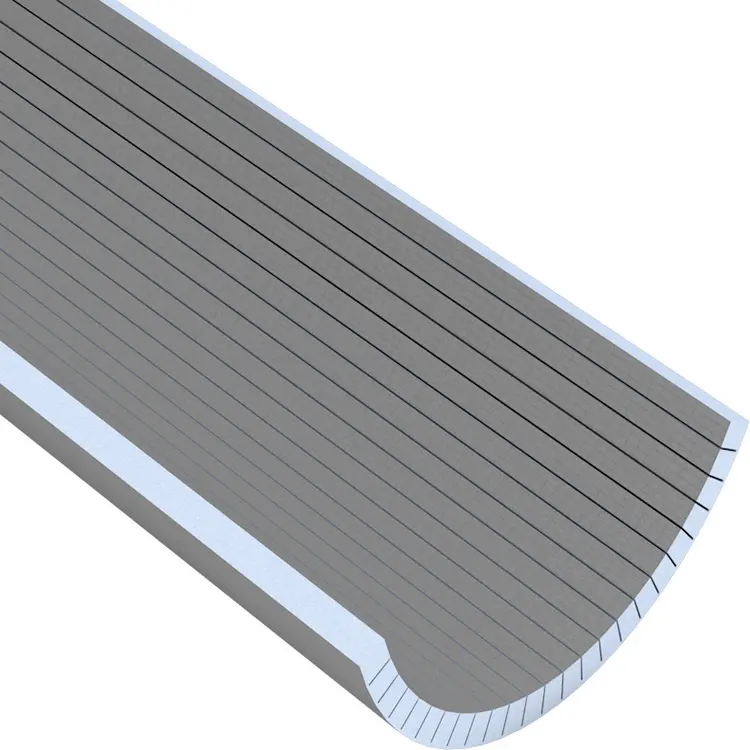

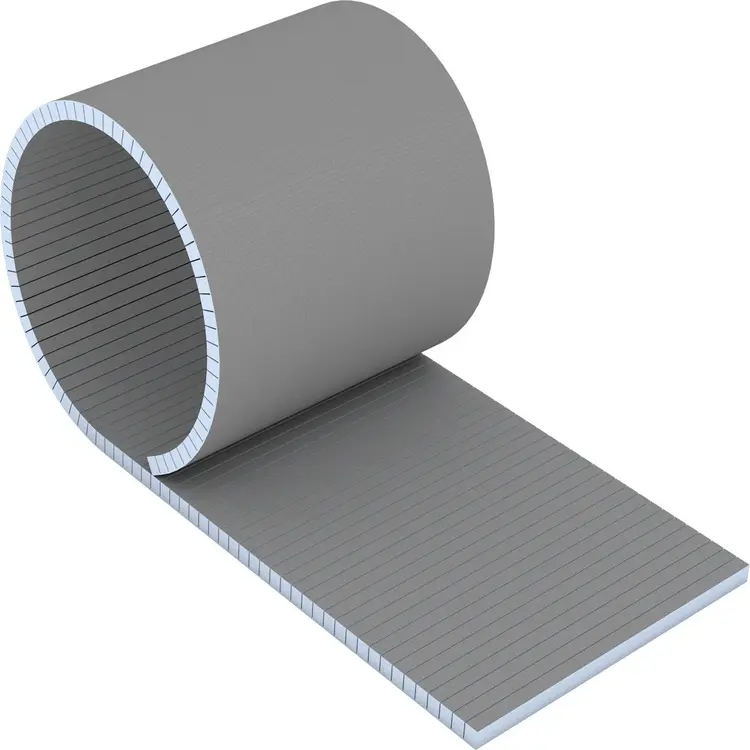

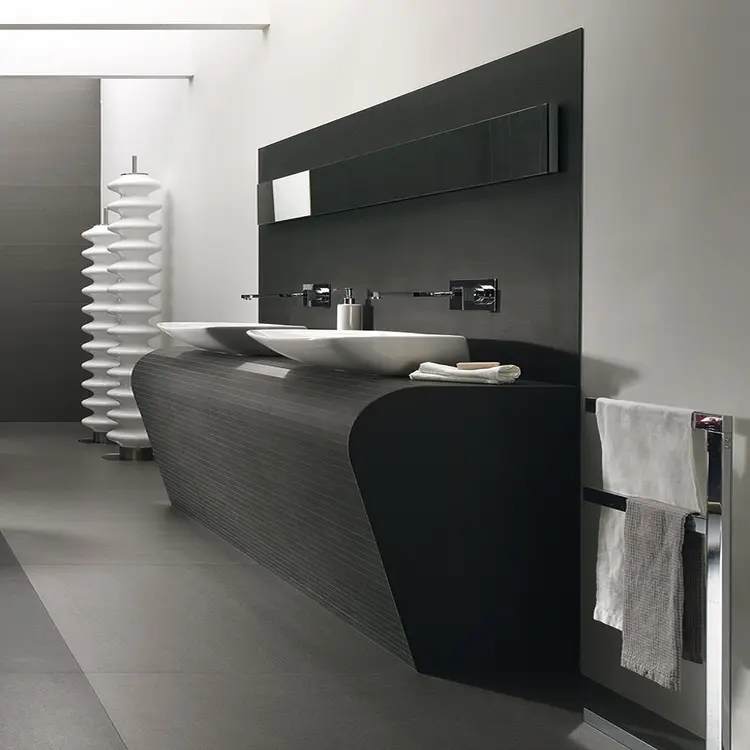

- wedi Construct building board opens up many possibility for designing circular shapes. Whether you wish to create narrow radii or semicircular solutions, the Construct building board gives you scope to turn your ideas into reality.
- Construct building boards provides high quality moisture protection and heat insulation, regardless of the shape, high technical standards whilst aloowing you to be creative.
