Product information

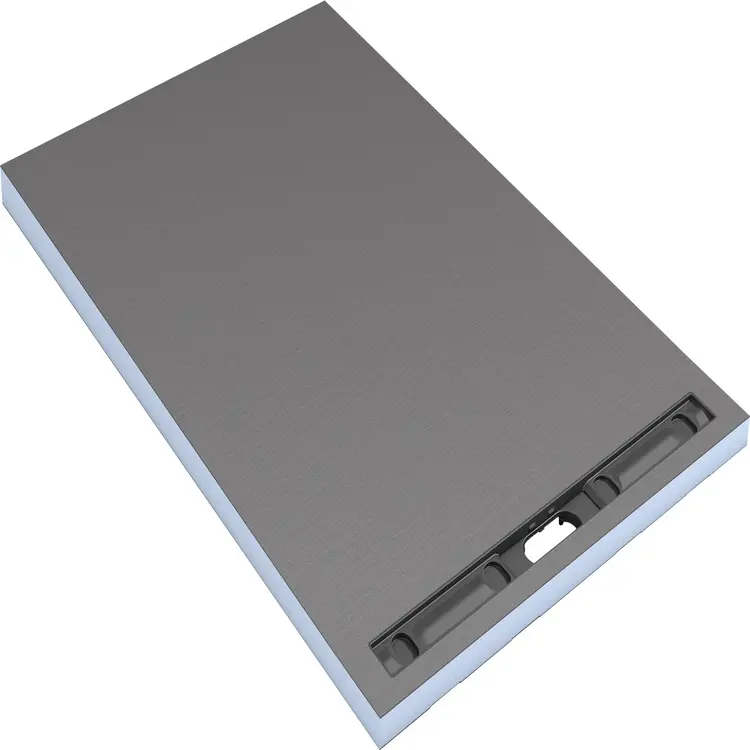

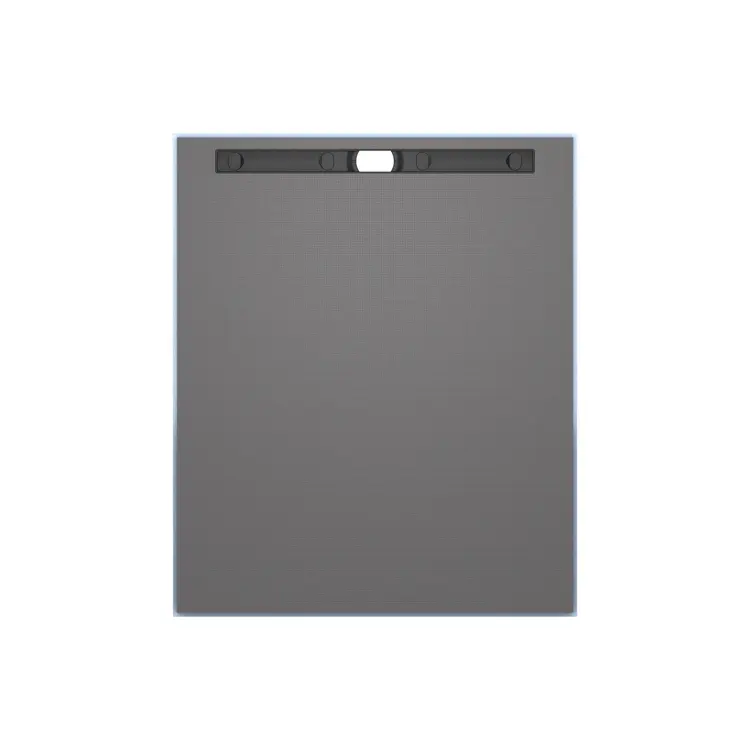

Thanks to its exceptional design, the Fundo Riolito Neo floor-level shower element provides real added value both visually and in terms of processing: a drainage channel close to the wall, a completely continuous gradient up to the channel and a flexible adaptation to nearly any room situation.

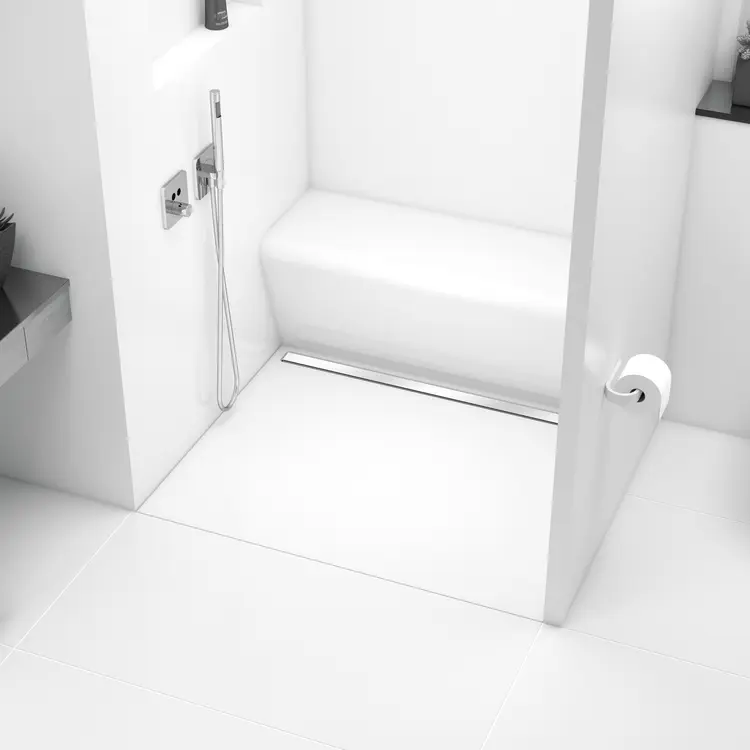

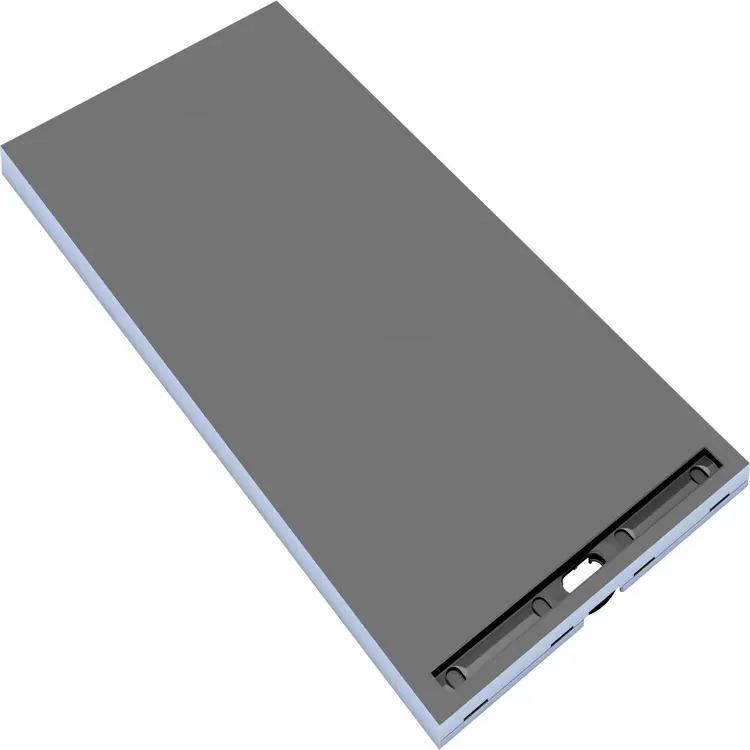

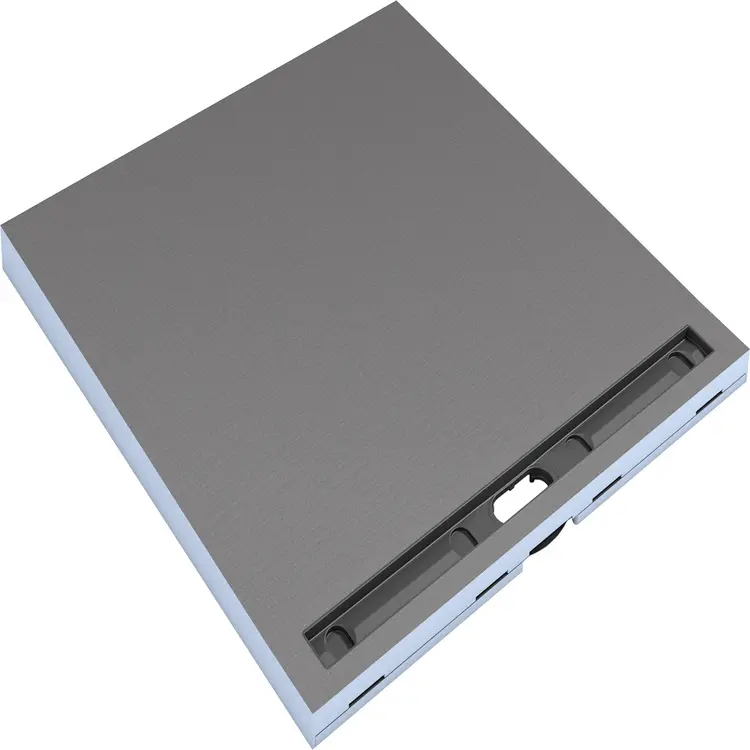

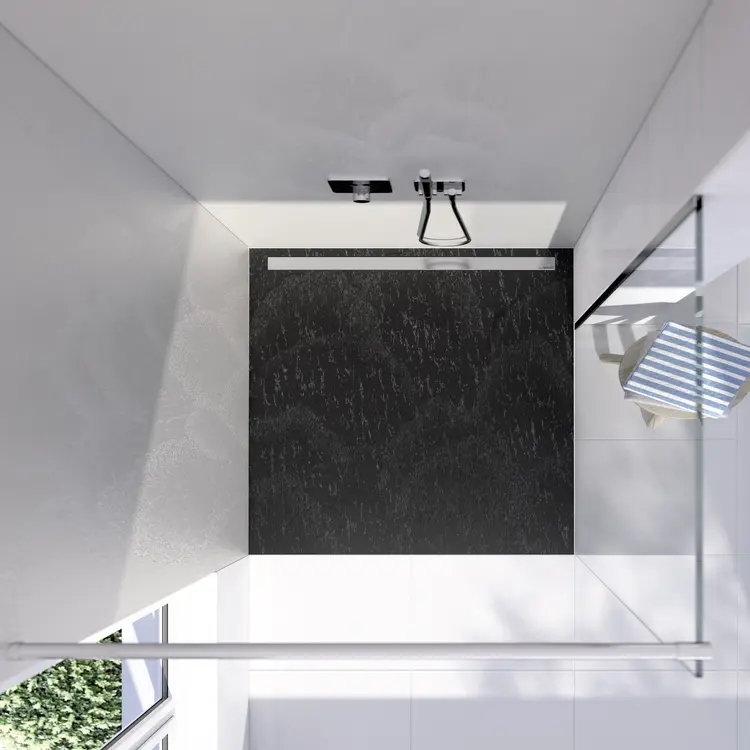

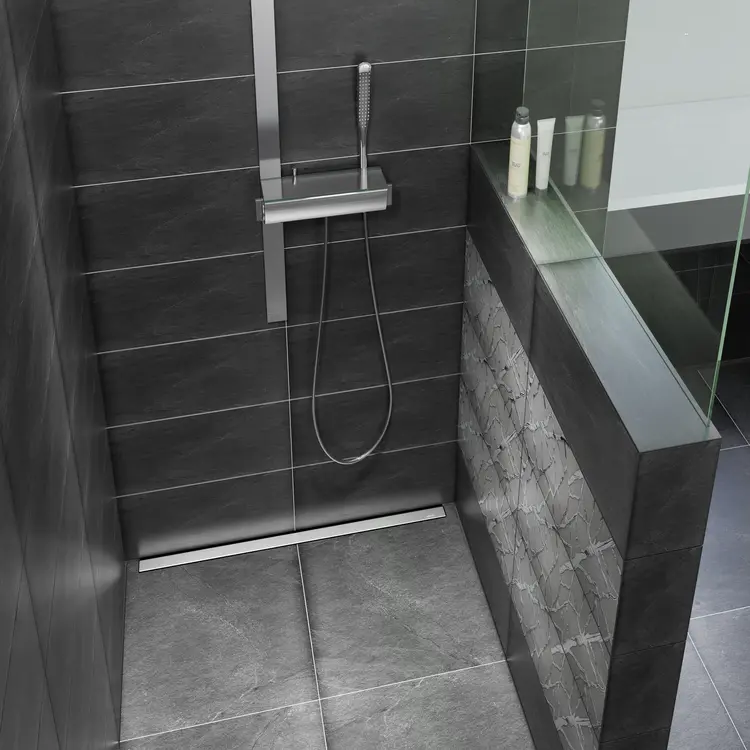

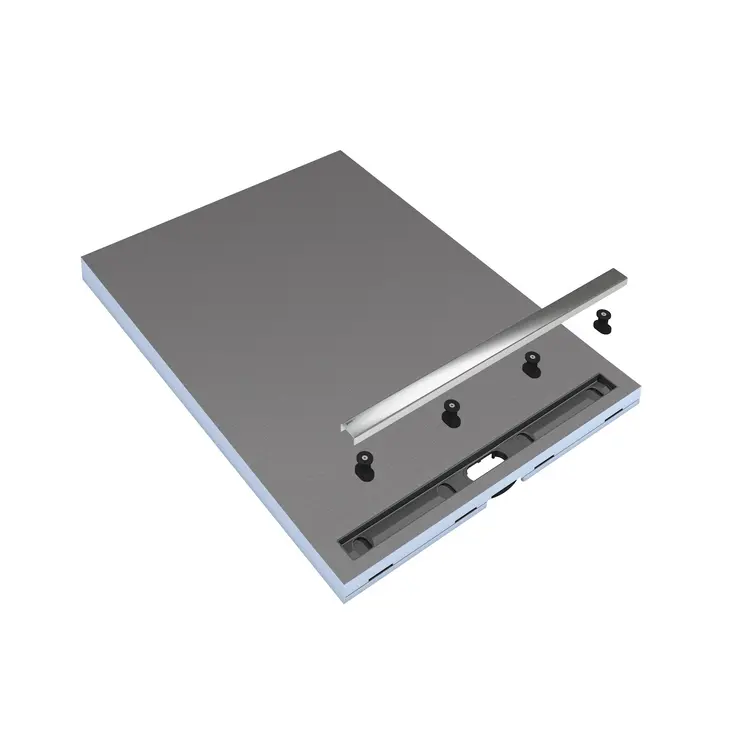

The Fundo Riolito Neo is not only available in numerous formats, but also with a short or long channel. It allows for great flexibility in cutting to required formats, especially with the short channel, and therefore can be easily adapted to individual requirements. The drainage channel of the Fundo Riolito Neo is located very close to the wall allowing for large-format tiles to be laid almost seamlessly.
Regardless which version you choose, you can 100% rely on the unique advantages of this system with appropriate drainage and matching slope and end profiles.
Close to the wall
Aesthetic
Practical
Functional
Adaptable
Technical Details
For a floor structure with sound insulation, the integration of the wedi Nonstep Pro or Nonstep Plan sound insulation mat and wedi edge insulation strips should be planned.
wedi Fundo Riolito Neo shower elements can be shortened on site, but the geometry of the elements must be maintained.
| Technical properties Fundo Riolito Neo | |
|---|---|
| Material | XPS |
| Long-term compressive strength (50 years) ≤ 2% compression EN 1606 | 0.08 N/mm² |
| Compressive resistance at 10% compression EN 826 | 0.25 N/mm² |
| Thermal conductivity EN 13164 | 0.036 W/mK |
| Bulk density EN 1602 | 32 kg/m³ |
| Temperature limits | -50°C / +75°C |
| Reaction to fire EN 13501-1 | E |
| Waterproof tested to | 1.5 bar |
| Wheelchair load-bearing from minimum tile size | 50 x 50 mm |
| Glass mosaic from minimum size | 20 x 20 mm |
| Minimum foundation height depending on the drain: horizontal drain, DN 50 vertical drain, DN 50 | 130 mm 50 mm |
| Surface slope (from outer edge of Fundo Riolito/Riofino floor element to outer edge) | 15 mm |
Downloads
Usage
- In private housing
- In publicly accessible buildings in accordance with DIN 18040 Section 1
- In barrier-free apartments in accordance with DIN 18040 Section 2 (taking the minimum tile size requirements for planned wheelchair load into consideration, see technical properties)
- As structural waterproofing in combination with wear class A0 and A tile and slab coverings (floor surfaces exposed to moderate stress from non-pressure water indoors; floor surfaces exposed to direct stress in rooms in which service and cleaning water is used often or for prolonged periods)
