Product information
The thinnest wedi floor-level shower system currently on the market. With the pre-fabricated drainage, the total thickness of the system is only 65 mm. In the case of renovations where every millimetre counts, this innovation is absolutely unbeatable.
The tileable shower elements are not only highly practical and reliable, they have opened up a whole new world of design possibilities for wet rooms and bathrooms.
- Certainty thanks to a uniform predefined slope
- Entire system is 100% waterproof
- Simple and safe to work with - tested by those in the trade
Reliable
Factory integrated and sealed drain technology DN40
Surface
Extremely low construction height of only 65 mm
Ideal
Perfect for refurbishment and renovation
Complete
Includes integrated design cover and sealing accessories
Expandable
Matching Fundo Top Surfaces available
Technical Details

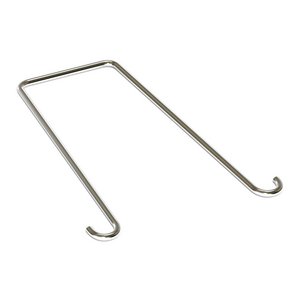

| Technical properties of Fundo Plano | |
|---|---|
| Wheelchair load-bearing from minimum tile size | 50 x 50 mm |
| Glass mosaic from 3 mm, minimum size | 20 x 20 mm |
| Minimum foundation height depending on the drain: | 65 mm |
| Surface slope (from outer edge of Fundo floor element to outer edge) | ≥ 2,4 % |
| wedi Fundo floor elements can be cut to size on site, the geometry of the elements should be maintained however. wedi fundo elements can only be combined with the wedi Fundo drains. | |
| Technical properties of drain | |
|---|---|
| Frame (fixed to the element) | 136 × 136 × 8 mm |
| Stainless steel grid | 132 × 132 mm |

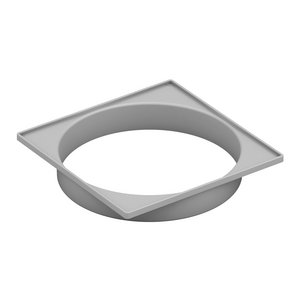

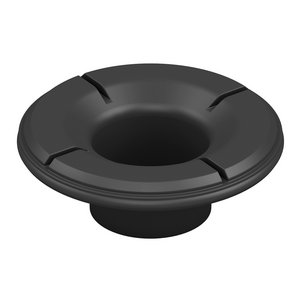

| Levelling frame | 136 × 136 × 24,7 mm |
| Drain performance | 30 l/min; 0,5 l/s |
| Connection pipe made from ABS | DN 40 |
| Appropriate tile thickness | 8 – 25 mm |
| Special drain integrated into the Fundo shower element with odour trap and stainless steel cover. Tested based on DIN EN 1253 (abP test number 4065) | |
| Technical properties of raw foam building board systems | |
|---|---|
| Extruded polystyrene hard foam core | XPS |
| Long-term compressive stress (50 years) ≤ 2% compression EN 1606 standard | 0,08 N/mm ² |
| Pressure resistance at 10% compression EN 826 standard | 0,25 N/mm ² |
| Thermal conductivity EN 13164 | 0,036 W/mK |
| Basic density according to EN 1602 | 32 kg/m³ |
| Temperature limits | -50°C / +75°C |
| Fire behaviour EN 13501 | E |
| Tested waterproofness | 1,5 bar |
Downloads
abP Fundo Plano
abP wedi 520
Brochure - Fundo Shower Systems
Brochure - Bathroom inspiration
Brochure - wedi at a glance
Brochure - wedi world of systems
DIN CERTCO Fundo 1200x1200
Fundo Plano complete shower element, DN 40, square, drain central, 1000x1000
Fundo Plano complete shower element, DN 40, square, drain central, 1200x1200
Fundo Plano complete shower element, DN 40, square, drain central, 900x900
Fundo Plano complete shower element, DN 40, square, drain offset, 1400x900
Fundo Plano complete shower element, DN 40, square, drain offset, 1600x1000
Fundo Plano complete shower element, DN 40, square, drain central, 1200x900, connection on long side
Fundo Plano complete shower element, DN 40, square, drain central, 1200x900, connection on short side
Fundo Top for Fundo Plano, 1200x900, rectangular, central drain, pure white
Fundo Top for Fundo Plano, 1600x1000, rectangular, central drain, pure white
Fundo Top for Fundo Plano, 900x900, square, central drain, pure white
Fundo Top cladding, for Fundo Primo, Plano, Riolito Neo, carbon black
Fundo Top cladding, for Fundo Primo, Plano, Riolito Neo, stone grey
Assembly instructions Fundo Plano nonverbal
Assembly instructions Fundo Top for Primo, Ligno Plus, Plano, Integro nonverbal
Certificat - GEV EMICODE for wedi 610 Joint Sealant
Cleaning guideline Fundo Integro / Fundo Plano nonverbal
Accoustics report on the installation of Fundo Plano (NonstepProS)
Technical datasheet - Fundo Plano
Certificate ISO 50.001 - Energy management system (valid from 2022-2025)
ISO 9001:2015 certificate
Usage
- In domestic residential construction
- In publicly accessible buildings and workplaces complying with DIN 18040 part 1
- In accessible dwellings complying with DIN 18040 part 2;(note specifications for minimum tile size if wheelchair access is planned, see technical properties)
- As a construction seal combined with tile and natural stone coverings of load class A0. There should be an additional sealing for load class A.
