Product information

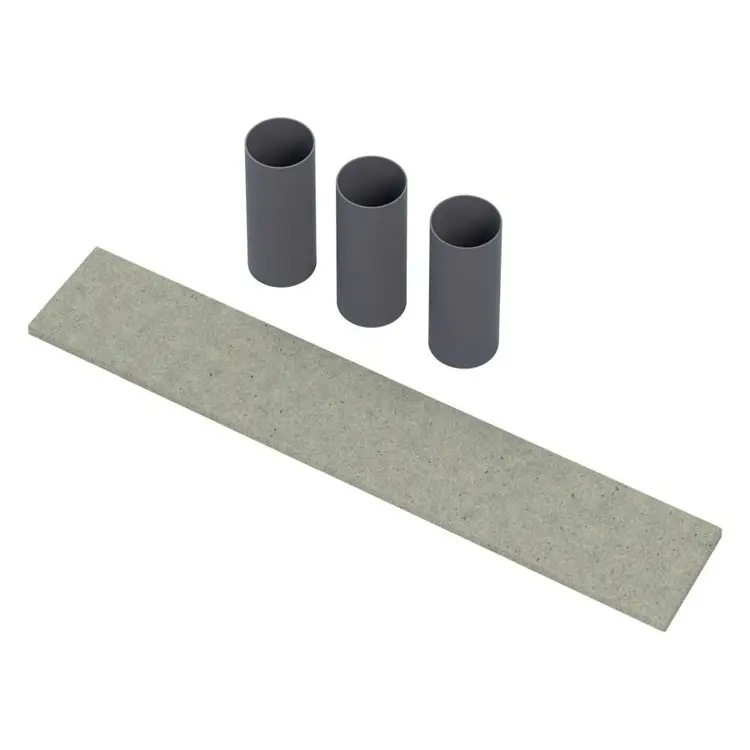

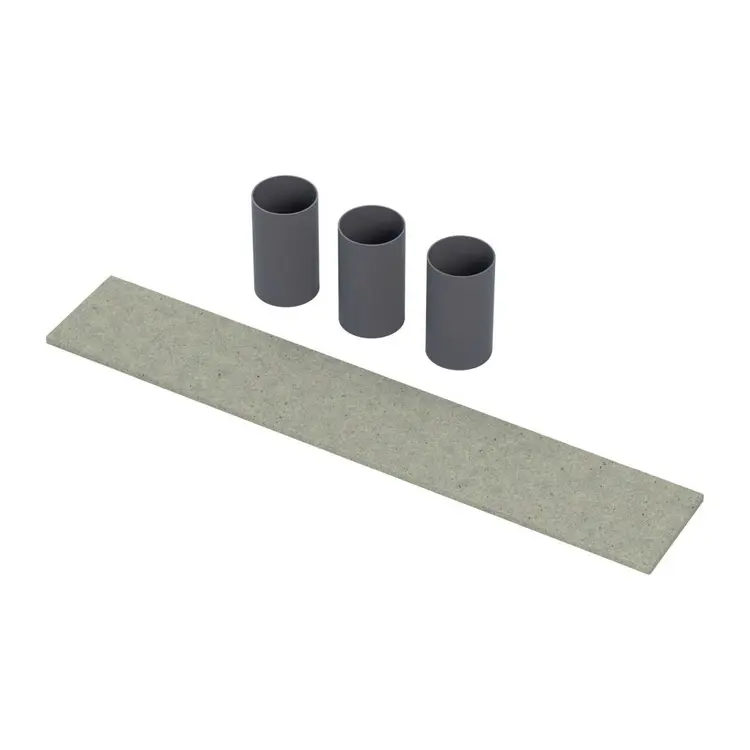

The fitting fixing set reinforces the area around the tap fixing point ensuring screws are securely anchored. It reduces stress on the foam core and helps prevent damage to the tiled surface. Suitable for a range of tap types, it provides a simple, application-specific addition to the washbasin system.
Technical Details
| Technical details wedi Tools fitting fixing set | |
|---|---|
| Reinforcement panel: | 400 × 67 × 10 mm |
| Reinforcement tubes | 3 × Ø 40 mm × 75 mm |
| Load capacity: | the tiled washbasin supports loads of up to 150 kg. |
Downloads
Usage
The fitting fixing set is installed as part of the washbasin preparation when a tap is mounted directly onto the surface. It provides a stable fixing point and helps prevent compression of the foam core as well as damage to the tiled surface. The required opening is to be created on site in both the washbasin and the reinforcement panel. The reinforcement panel is bonded onto the underside of the washbasin aligned with the tap position. Reinforcement tubes can be cut to length before insertion.
