Product information
Special fibre tape for reinforcement or bridging of building board butt joints.
- Joint reinforcement tape/self-adhesive joint reinforcement tape in rolls of 125 mm or 600 mm
Technical Details
| Technical properties - Joint reinforcement tape 125 mm and 125 mm, self-adhesive | |
|---|---|
| Type | alkali-resistant glass fibre reinforced fabric |
| Colour | white |
| Small mesh width | approx. 2 x 2 mm |
| Maximum tensile strength in accordance with DIN 53857 T1: | |
| Warp | ≥ 350 N / 5 cm |
| Weft | 600 N / 5cm |
| Mass per unit area in accordance with DIN 53854 | 55 g/m² |
| Technical properties - Joint reinforcement tape 600 mm and 600 mm, self-adhesive | |
|---|---|
| Type | alkali-resistant glass fibre reinforced fabric |
| Colour | white |
| Small mesh width | approx. 6 x 10 mm |
| Maximum tensile strength in accordance with DIN 53857 T1: | |
| Warp | ≥ 1200 N / 5 cm |
| Weft | ≥ 800 N/ 5 cm |
| Maximum expansion under tensile strength in accordance with DIN 53857 T1: | |
| Warp | ≤ 3,8% |
| Weft | ≤ 3,8% |
| Tear strength after conditioning in accordance with ETAG 004 (embedding in an alkaline medium) in accordance with DIN 53857 T1: | 79 g/m2 |
| Warp / Weft | |
| Mass per unit area in accordance with DIN 53854 | |
Building board
Building board XL and XXL
Vapor building board

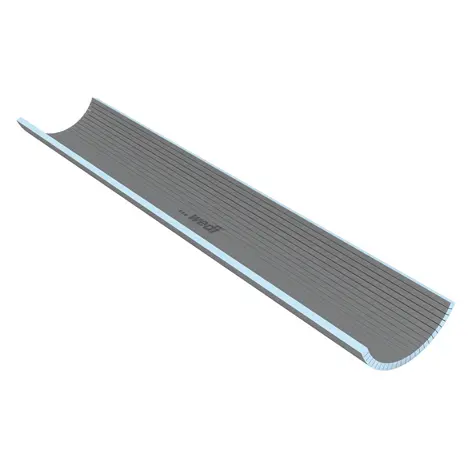

Construct building board

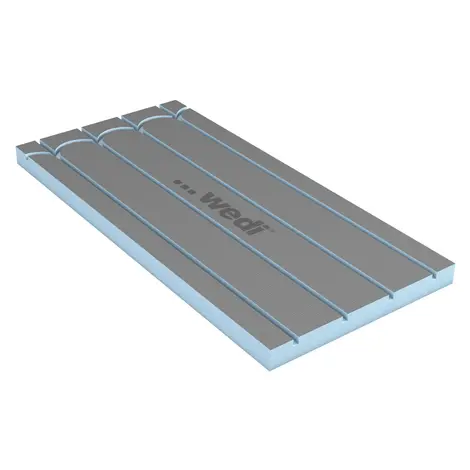

Preline building board
Sanwell shower wall module
Sanwell wall elements

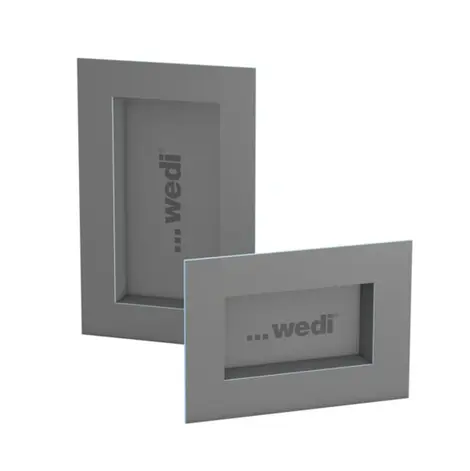

Sanwell niches
Mensolo L and U angle unit
Bathboard bath and shower tray cladding

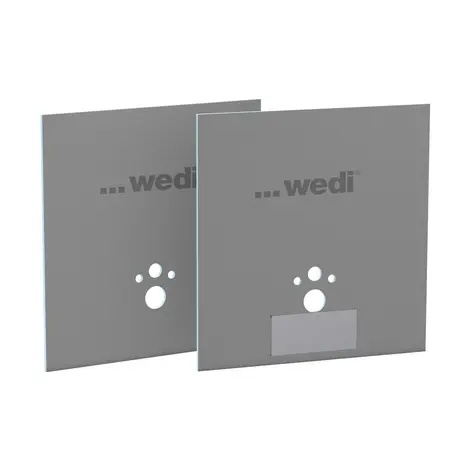

I-Board and I-Board Plus WC dry wall installation cladding
