Product information

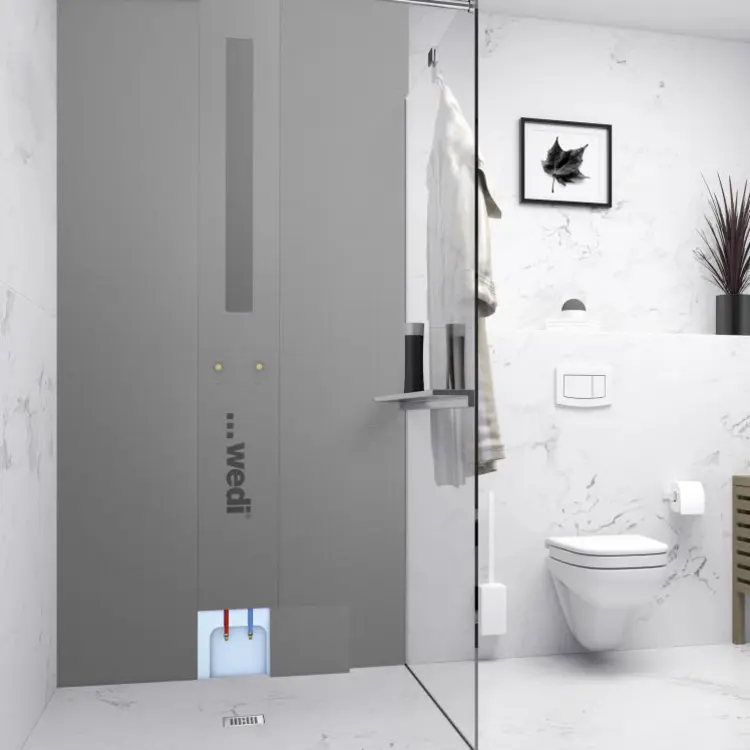

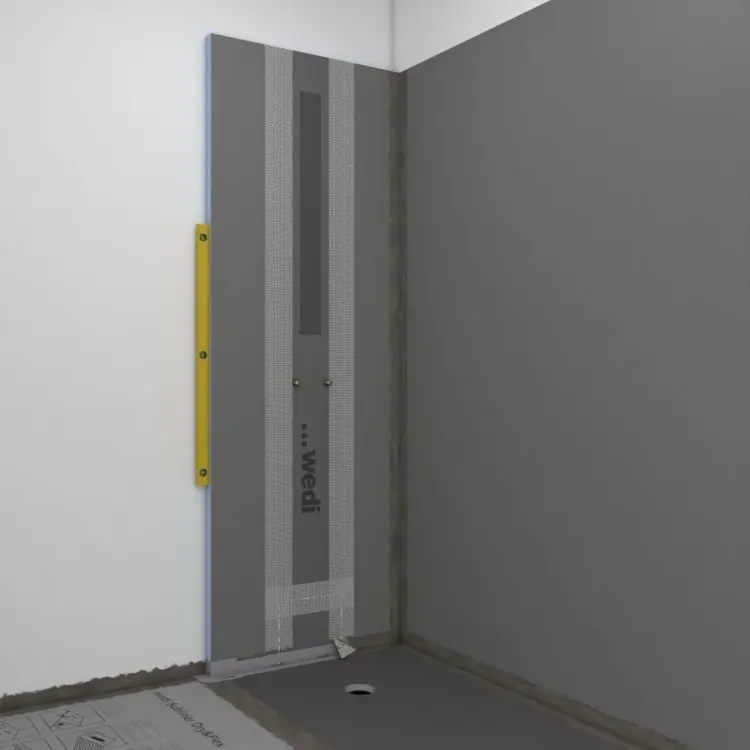

The wedi Sanwell XS shower wall module is now part of our standard product range. In combination with wedi building boards of the same thickness, it offers the ideal solution for a back wall installation with surface-mounted fittings.
Its slim design makes it practical and easy to integrate into even the smallest spaces. Reliable by design, this factory prepared wall element offers straightforward installation and enduring functionality.

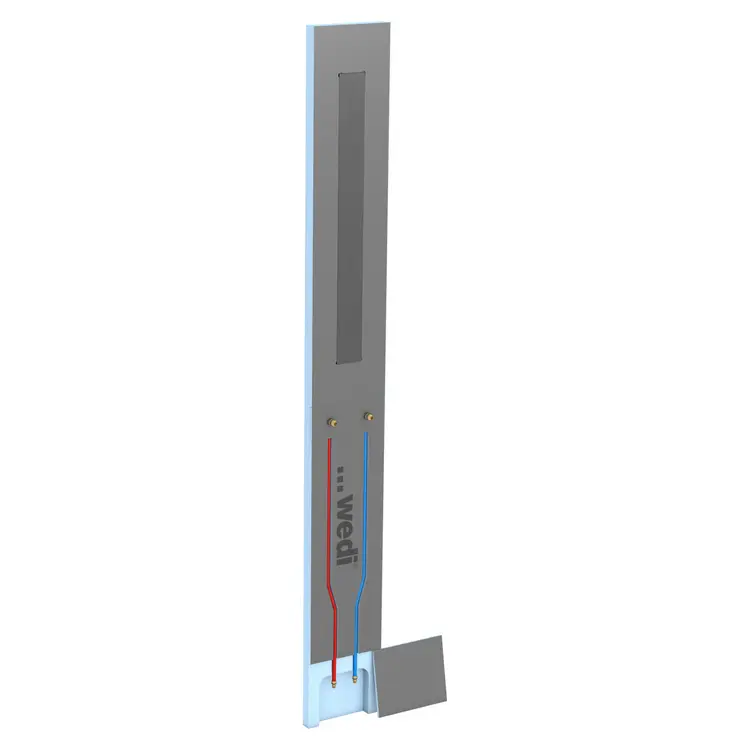

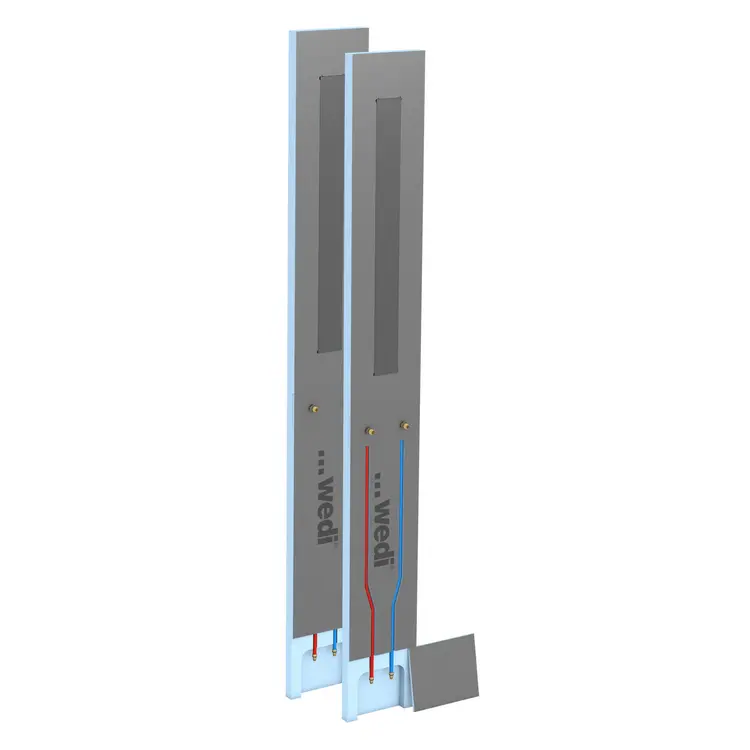

- The XS shower wall module with its factory-integrated technology, greatly simplifies the planning and installation of shower areas while ensuring lasting waterproof performance

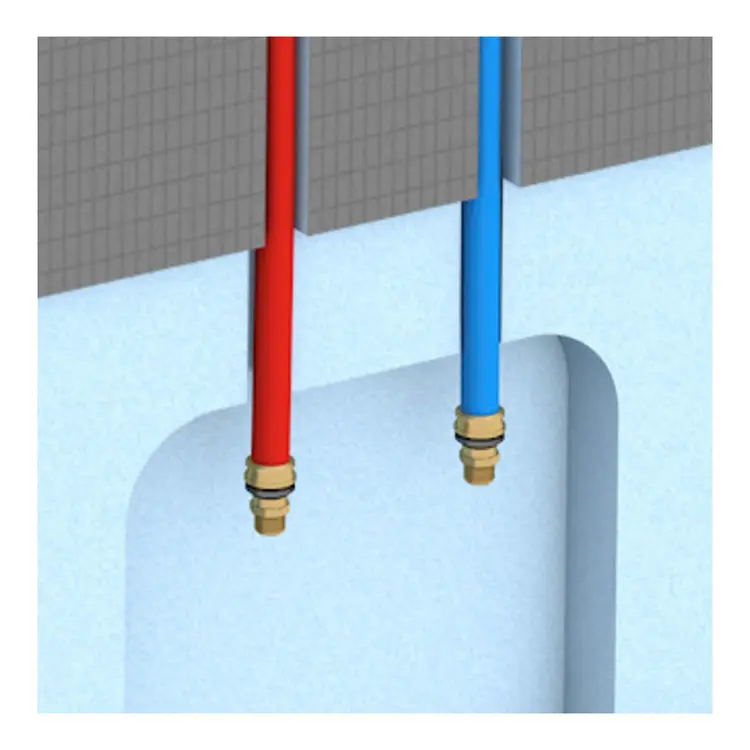

- The integrated and sealed cold and hot water pipes ensure an effortless and efficient installation
- Thanks to its compact size of 2500 x 300 x 50 mm, the ultra-slim module fits seamlessly into standard shower dimensions
Technical Details
| Technical properties – Rigid foam | |
|---|---|
| Long-term compressive strength (50 years) ≤ 2% compression EN 1606 | 0,08 N/mm² |
| Compressive resistance or compressive strength at 10% compression EN 826 | 0,25 N/mm² |
| Associated modulus of elasticity EN 826 | 10 – 18 N/mm² |
| Thermal conductivity EN 13164 | 0,036 W/mK |
| Tensile strength EN 1607 | 0,45 N/mm² |
| Shearing resistance EN 12090 | 0,2 N/mm² |
| Shear modulus EN 12090 | 7 N/mm² |
| Bulk density EN 1602 | 32 kg/m³ |
| Resistance to water vapour diffusion(μ) EN 12086 | 100 |
| Water absorption under long-term immersion EN 12087 | ≤ 1,5 Vol.-% |
| Capillar action | 0 |
| Linear coefficient of thermal expansion | 0,07 mm/mK |
| Temperature limits | -50°C / +75°C |
| Fire behaviour EN 13501 | E |
| Propellant gas, carbon dioxide, GWP value | 1 |
Downloads
Usage
The wedi Sanwell XS shower wall element is characterised by its compact footprint, and full-scale performance.
In combination with standard wedi standard building boards (600, 900, 1200 mm width), common shower enclosures (900, 1200 and 1500 mm2) can be designed easily and efficiently.
With a high-density, closed-cell XPS core, wedi building boards and wall modules combine remarkably low weight with proven, enduring waterproof performance.
The wedi Sanwell XS shower wall element is approved for private and commercial use indoors, under direct use with service and cleaning water.
Please contact the wedi Application Technology for special applications.
