Product information

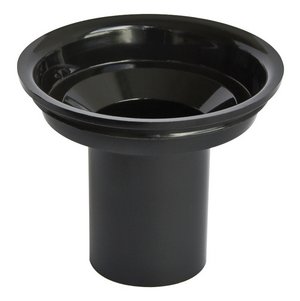

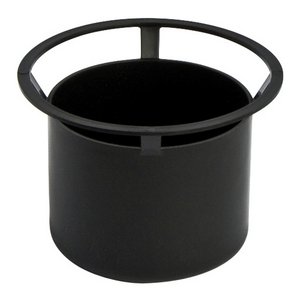

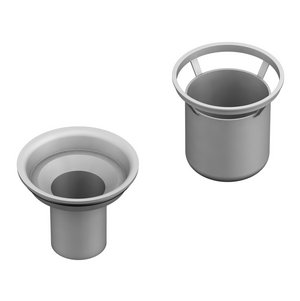

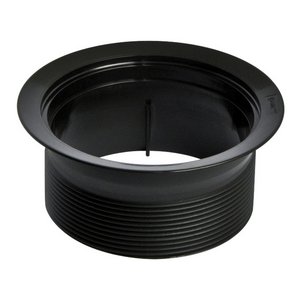

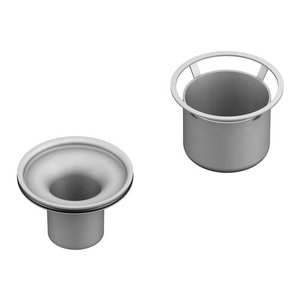

wedi offers the compatible and systemised drain technology for the flush-to-floor shower elements. Because of the low installation height and water-tight security design concept, these systems are well suited for use in new builds and renovations. There is a variety of different versions for vertical designs available:
- Design variations:
- horizontal, DN 50, with square drain cover
- horizontal, DN 50, with round drain cover
- Fundo drain Mini Max, horizontal, DN 40, with square drain cover
- Only the wedi drainage system for Fundo can be used for all Fundo shower elements.
- The drains can be combined with the following Fundo series:
- Fundo Primo
- Fundo Ligno Plus
- Fundo Borgo
- Fundo Trollo
- Fundo Nautilo
Technical Details
| Technical properties – Drain | |
|---|---|
| Frame with stainless steel grid available in the following dimensions: | |
| square, square screwable | 115 x 115 mm |
| round | Ø 115 mm |
| Drain performance depending on the drain selected: | |
| Fundo drain Mini Max, square, extra-flat, horizontal, DN 40 | 0,5 l/s; 30,0 l/min |
| Fundo drain, horizontal, DN 50 ABS, acc. DIN EN 1253 | 0,80 l/s; 48,0 l/min |
Downloads
Brochure - Fundo Shower Systems
Brochure - wedi world of systems
Assembly instructions Fundo Primo DN50 horizontal square nonverbal
Assembly instructions Fundo Primo DN50 horizontal round nonverbal
Assembly instructions Fundo Primo Minimax horizontal square nonverbal
Assembly instructions Fundo drain-substructure element nonverbal
Technical datasheet - Fundo shower elements (Primo, Borgo, Trollo)
Usage
- In domestic residential construction
- In publicly accessible buildings and workplaces complying
- In accessible dwellings complying with DIN 18040 part 2 (note specifications for minimum tile size if wheelchair access is planned, see technical properties)
- As a construction seal combined with tile and natural stone (floors subject to moderate surface flowing water in interior areas; directly loaded floors in rooms in which tap or cleaning water is used very frequently or for long periods, and floors of indoor and outdoor pools that are filled with water with the properties of drinking water)
