Product information
- Impact sound deadening for uneven substrates: 16 dB
- wedi Nonstep Plan impact sound deadening consists of a 6 mm wedi building board which is bonded in the factory to a 5 mm rubber matt resulting in an shiplap joint. The impact sound deadening board is used for the purposes of decoupling underneath ceramic floor coverings, laminate flooring or pre-fabricated parquet flooring.

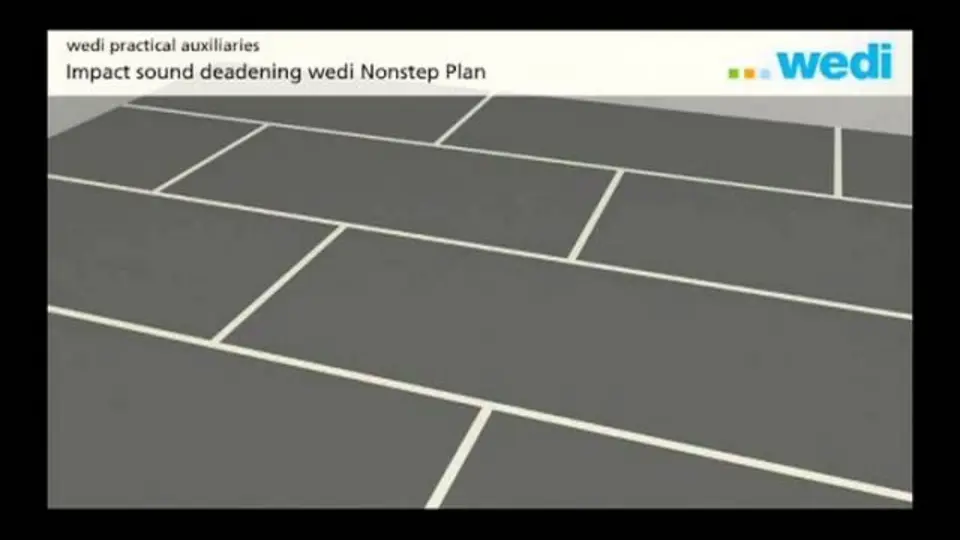

Decoupling and insulating with wedi footfall sound insulation Nonstep Plan
This content is provided by YouTube. By loading this content, you consent to the transfer of your data to YouTube / Google. You can find more information about this here:
Google Privacy.
Technical Details
| Technical properties – Impact sound deadening board | |
|---|---|
| Material base | polyurethane-bonded recycled rubber material with styrofoam flakes and a special, flexible, mineral coating |
| Thickness | 6 mm |
| Format | 1196 x 590 mm |
| Density | 600 kg/m3 |
| Tear strength | 0,25 N/mm2 |
| Compressive strength at 30% deformation | 0,65 N/mm2 |
| Static rigidity | s`= 56 MN/m3 at the linear start of the load deflection curve in accordance with DIN 53421 |
| Dynamic rigidity | s`= 97 MN/m3 from resonant frequency 35 Hz at 2000 kg/m2 in accordance with EN 29052 |
| Temperature resistance | -40°C to 115°C |
| Fire behaviour | E in accordance with EN 13501 |
| Impact sound deadening | Δ L W,R = 14 dB in accordance with DIN EN ISO 140-8 (tested on concrete ceiling, under tiles) |
Downloads
Pollutant test Nonstep Plan Säurefliesner
Brochure - Bathroom inspiration
Brochure - wedi world of systems
Flyer Sound insulation - Nonstep ProS, Nonstep Plan
MPA ISO acoustic test Nonstep Plan
Certificate VOC-regulation
Technical datasheet - Nonstep Plan
Certificate ISO 50.001 - Energy management system (valid from 2022-2025)
ISO 9001:2015 certificate
Usage
- For decoupling ceramic and natural stone floor coverings from the substructure
- For deadening impact sound when laying ceramic and natural stone floor coverings with a relatively low design height
- On all load-bearing surfaces such as concrete, wooden floorboards (not stairs)
- Underlay for floating floor coverings such as ready-to-lay parquet or laminate
- Not for use under electric thin-bed heating elements
For residential type use. Not approved for wheeled loads with high concentrated loads.
Surface requirements
- The surfaces must be even, clean, load-bearing, dry and stable. Level out any unevenness before laying. Make sure that wedi Nonstep Plan covers the entire area.
