Product information

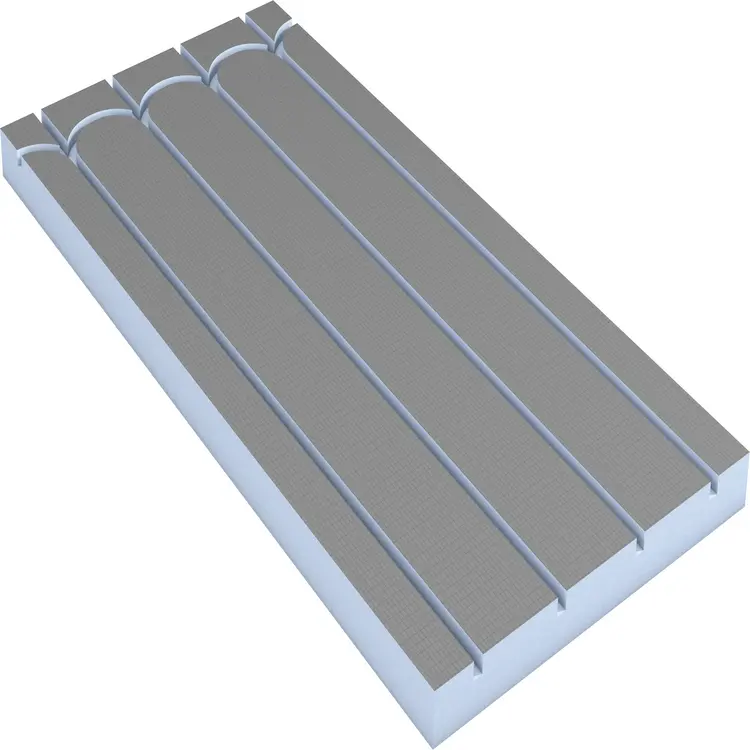

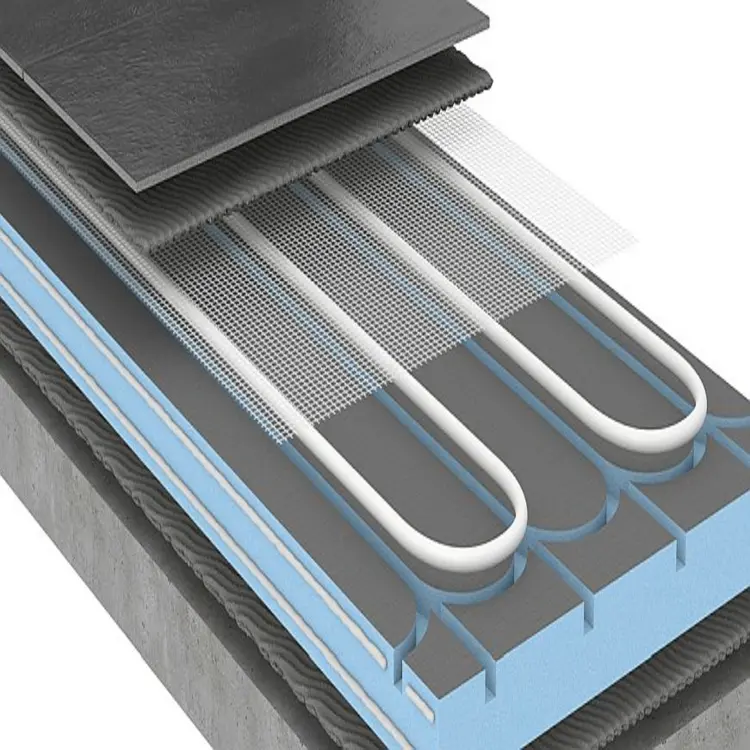

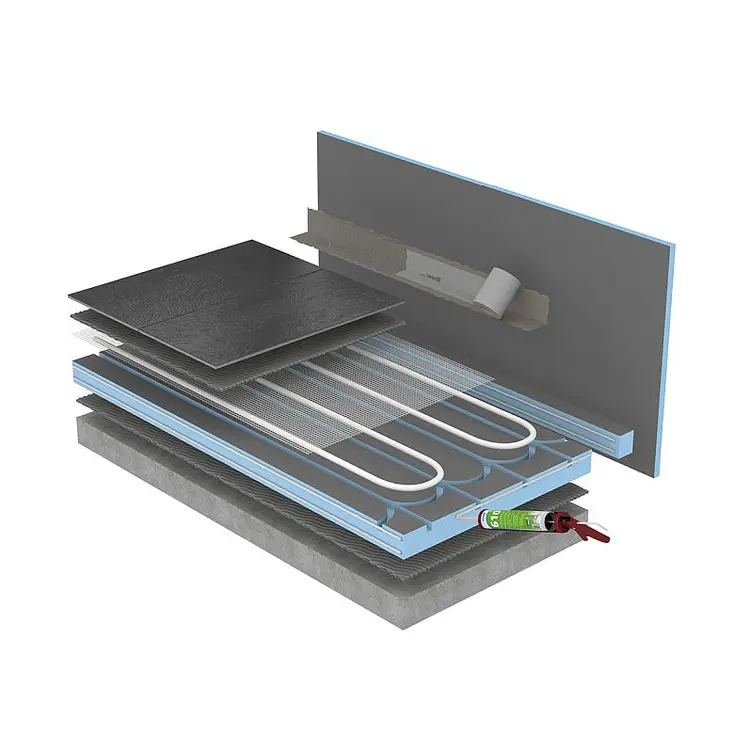

The wedi building board PreLine is a fully prepared building board element for easy installation of hot water heating systems. Factory integrated recesses allow for quick and safe installation of water pipes whilst strong insulation properties of the material itself prevent heat escaping to the ground thus promote a balanced heat distribution across the entire space. Adhesion of the wedi PreLine elements to the screed foor and backflling of the pipe ducts is done very simply with the appropriate tile adhesive (recommendation: wedi 320). It truly is the perfect element for quick and waterproof implementation of underfoor heating systems.
Energy efficient
Excellent thermal insulation properties
Accessible

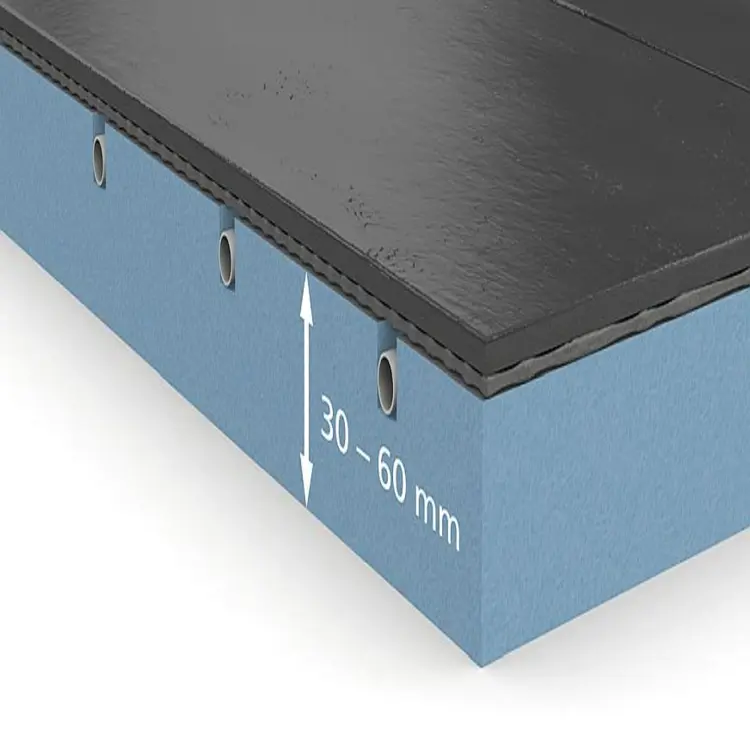

Low installation height, ideal for retrofitting
renovation and refurbishment
renovation and refurbishment
Fast

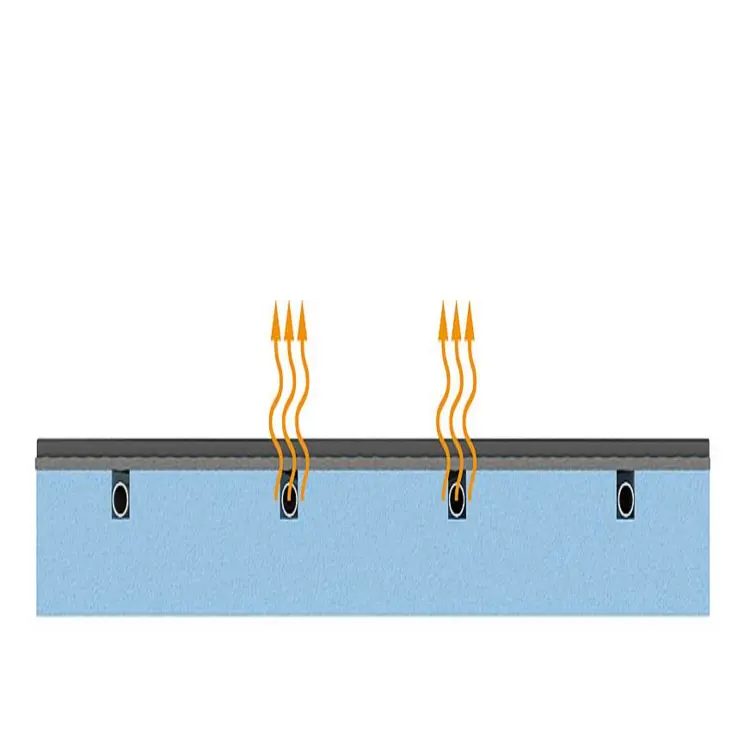

Noticeable heat effect
Smart

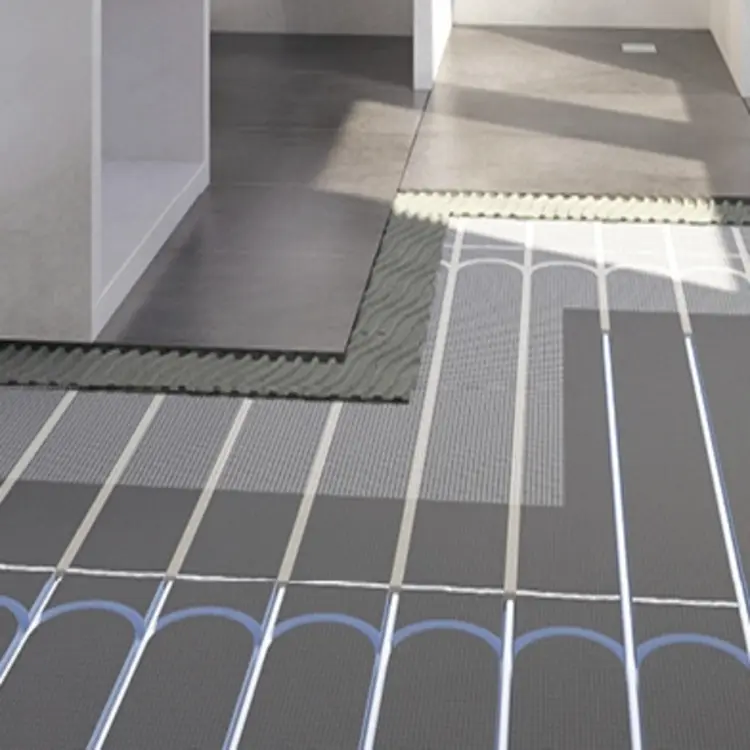

Pre-defined pipe laying pattern
Lightweight
Lightweight for easy processing
Wedi PreLine - Base element for mounting hot water heating systems
This content is provided by YouTube. By loading this content, you consent to the transfer of your data to YouTube / Google. You can find more information about this here:
Google Privacy.
Technical Details
| Technical details wedi building board PreLine | |
|---|---|
| Long-term compressive strength (50 years) ≤ 2% compression EN 1606 | 0,08 N/mm2 |
| Compressive resistance or compressive strength at 10% compression EN 826 | 0,28 N/mm² |
| Associated modulus of elasticity EN 826 | 10 – 18 N/mm2 |
| Thermal conductivity EN 13164 | 0,036 W/mK |
| Tensile strength EN 1607 | 0,45 N/mm2 |
| Shearing resistance EN 12090 | 0,2 N/mm2 |
| Shear modulus EN 12090 | 7 N/mm2 |
| Bulk density EN 1602 | 32 kg/m3 |
| Resistance to water vapour diffusion(μ) EN 12086 | 100 |
| Water absorption under long-term immersion EN 12087 | ≤ 1,5 Vol.-% |
| Capillar action | 0 |
| Linear coefficient of thermal expansion | 0,07 mm/mK |
| Temperature limits | -50°C / +75°C |
| Fire behaviour EN 13501 | E |
| Propellant gas, carbon dioxide, GWP value | 1 |
Downloads
Usage
- Thanks to its special properties, wedi PreLine is very versatile and can be used in refurbishments and renovations of bathrooms, in particular it can be used as a:
- Base element for the installation of hot water heating systems with Ø16 mm pipes.
- Base element for laying tiles, slabs and natural stone floor coverings, using the thin-bed method.
- Waterproof base providing excellent moisture protection.
- Effective and reliable thermal insulation.
- wedi PreLine is approved for indoor applications in rooms at normal temperatures and for floor applications in rooms with loading consistent with living spaces. Rolling loads with high point loading are not permissible.
